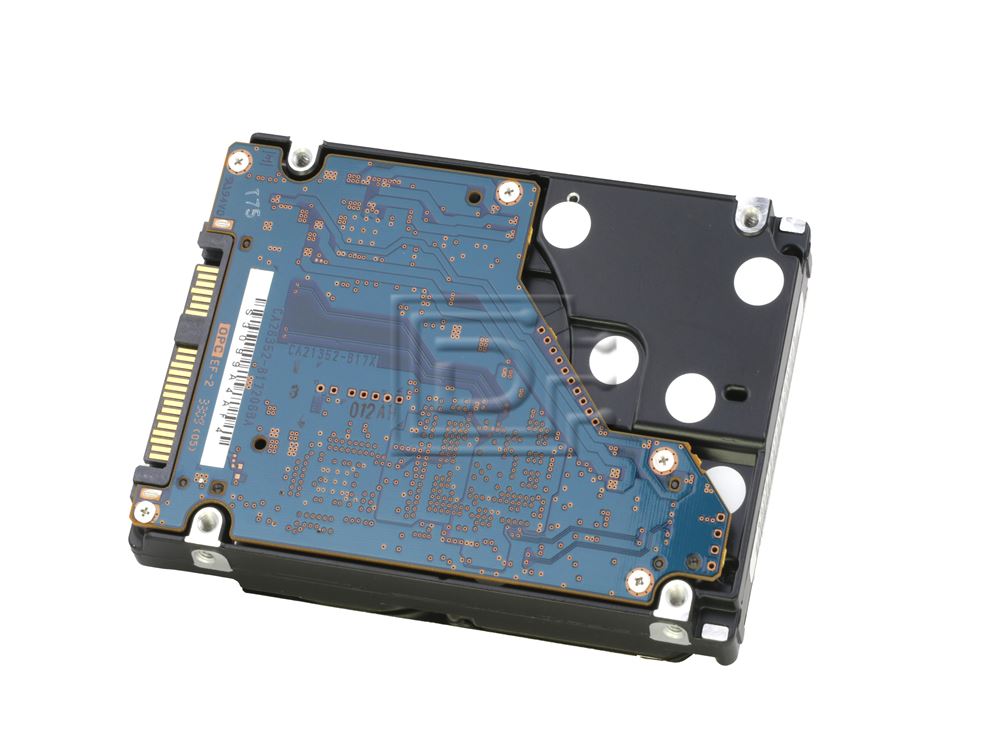

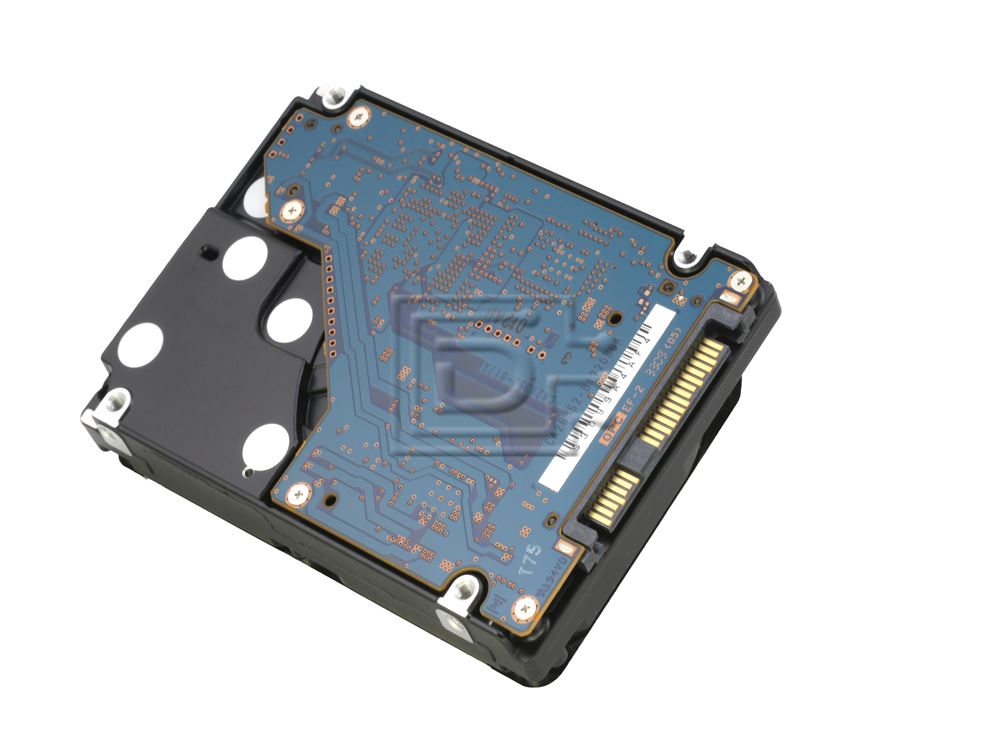

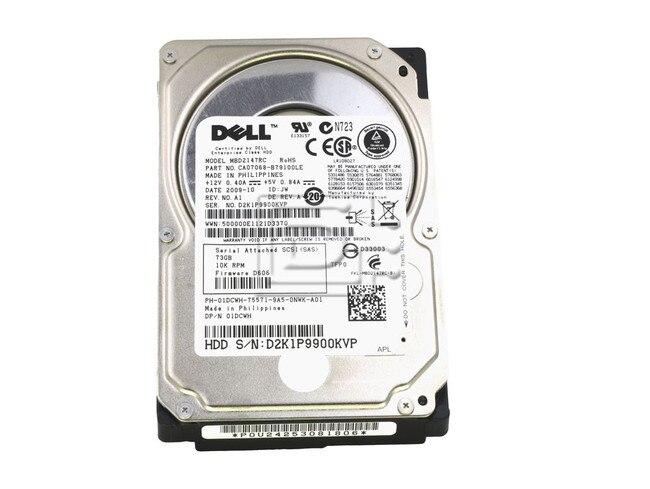

Dell 1DCWH Serial Attached SCSI / SAS Hard Drive

Dell Part #/MPN: 1DCWH

DiscTech Item #: DEL-1DCWH-BN-OE


$49.99
$49.99

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 3.8 / 4.3

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

Dell 1DCWH 73GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Brand New

Introducing a new enterprise class 2.5-inch SAS drive offering industry leading performance and environmental benefits.

The MBD2-RC series is the first enterprise hard disk drive to be halogen free. The 10,000 RPM 6Gb/sec. SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.

The higher capacity and performance meets a wide range of enterprise applications, from midrange volume servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS interface and improved areal densities enable higher data rates.

As part of the Green Policy Innovation program, the new series provides the best-in-class power consumption at 3.4 watts idle, achieving up to 28% reduction from previous generation models, and up to 74% reduction from current 3.5" 15K RPM offerings.


Compatibility:

This drive is compatible with the followinig servers (this list is not all inclusive):

Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.

Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity73 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)3.8/4.3 ms. typ. (read/write)
Seek time (full track)8.0/9.0 ms. typ. (read/write)
Average latency time2.99 ms.
Rotational speed10,025 RPM
InterfaceSAS II (6Gbps)
Data Buffer Size16 MB
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)3.2 W typ.
Form Factor2.5-inch x 15mm high
Height15.0 mm
Width69.85 mm
Depth100.45 mm
Weight0.22 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Maximum DE surface temperature (operating)60 max deg. C
Gradient20 degrees C per hour
Relative humidity (operating)5 to 95 % RH (non-condensing)
Relative humidity (non-operating)5 to 95 % RH (non-condensing)
Maximum wet bulb29 degrees C (non-condensing)
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)100G Max (1ms)
Shock (non-operating)400G Max (1ms)
Altitude (operating)3,048 metres
Altitude (non-operating)12,192 metres
Acoustic noise (at 1 metre idle)>/=2.9 (ready) bels

Alternate MPNs: MBD2147RC

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
