Dell 341-5943 SAS 6iR 6/iR SAS / SATA RAID Controller

Dell Part #/MPN: 341-5943

DiscTech Item #: DEL-341-5943-BN-OE


$149.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$149.00

Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8484

Electrical Interface: SATA 300 - 3.0Gbps

Bays/Ports/Slots: 8

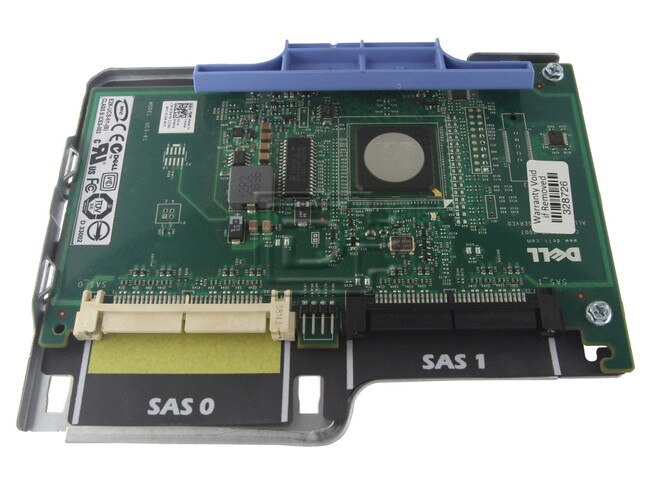

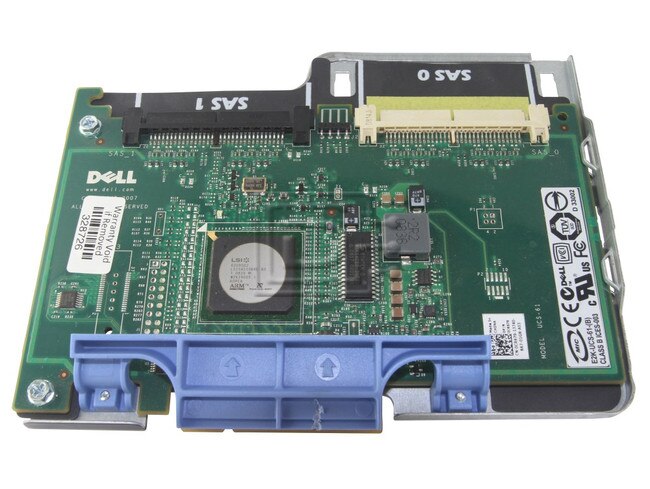

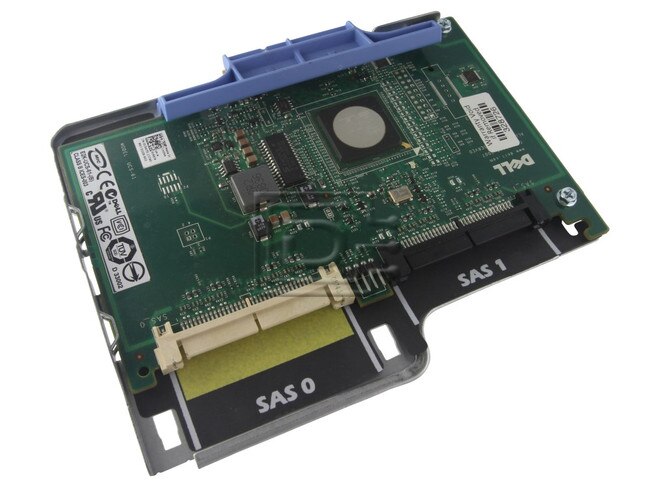

Dell SAS 6iR 6/iR SAS / SATA Integrated Controller 341-5943 / YM133 / CR679 - Brand New

The SAS6/iR Integrated SAS Controller from Dell provides integrated RAID capabilities. The card supports both SAS and Serial ATA drives. Featuring two internal connectors with 4 ports each, the card features an impressive 8 ports for connecting drives to. The SAS6/iR features PCIe® connectivity and requires a x8 slot for connectivity. The card also offers up to 3 GBps of maximum burst speed per port. With support for S.M.A.R.T. physical drives as well as up to 10 physical drives, this card is ideal for your Dell PowerEdgeServer. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system.

This Controller includes the following shielding plate:  NP007 0NP007



Integrated non bracketed PCI-e Controller with blue hold clip (PCIe slot grabber) with RAID Capabilities

Manufacturer Part# : CR679 0CR679 YM133  WY335  0YM133 0WY335

Dell Part# : 341-5943


Compatibility:

PowerEdge 1950PowerEdge 2950PowerEdge 2970PowerEdge R805

Tech Specs


General

Device Type

Storage controller (RAID) - plug-in card

Interface Type

PCI Express x8

Storage Controller

Controller Interface Type

Serial ATA-300 / SAS

Data Transfer Rate

300 MBps

Supported Devices

Disk array (RAID)

Max Storage Devices QTY

8

RAID Level

RAID 0, RAID 1

Expansion / Connectivity

Interfaces

2 x storage SFF-8484 - Serial Attached SCSI

Miscellaneous

Compatible with Windows 7


Click here to view the manufacturer's item description/brochure

Alternate MPNs: CR679 0CR679 341-9536 YM133 DX481 WY335 T774H 0YM133 0DX481 0WY335 0T774H

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
