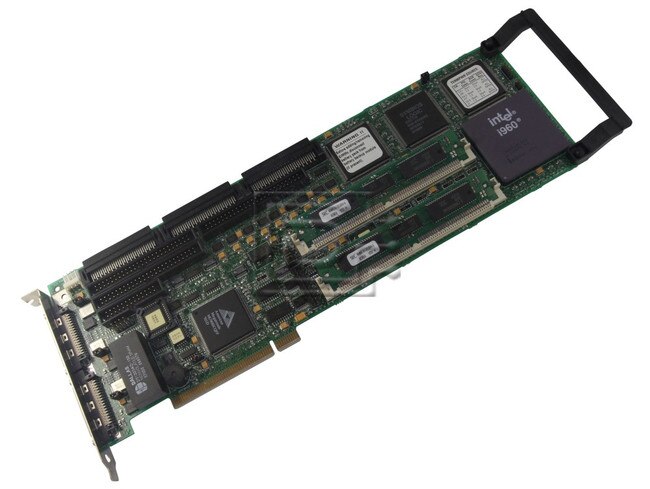

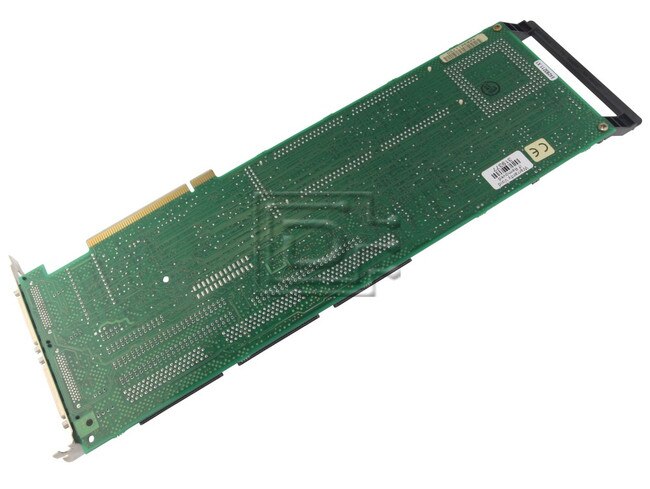

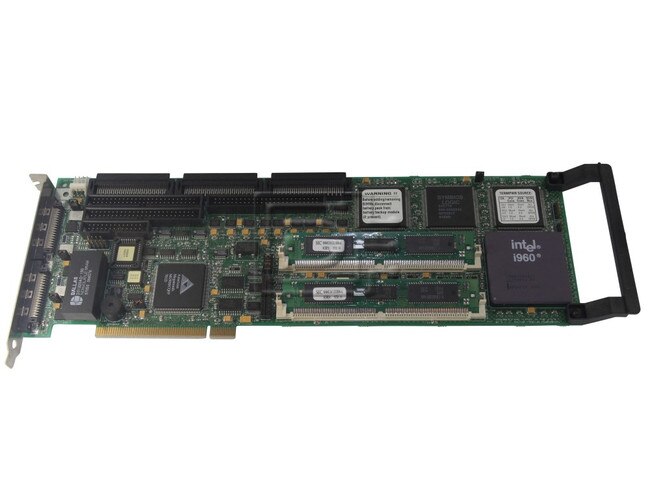

Dell AMI 1631T SCSI RAID Controller

(0) No Reviews Yet

Dell Part #/MPN: 1631T

DiscTech Item #: DEL-1631T-RF-OE


Interface Types: SCSI 68pin HD68 Female, SCSI VHDCI, PCI

On-Board Cache: 16MB

Voltage: 5V

Dell AMI MegaRAID 428 1631T Dual Channel PCI 16MB SCSI RAID Controller - Refurbished

Dell 1631T AMI MegaRAID Series 428 RAID Controller with a PCI Interface. It has a 32-bit Intel® i960CA RISC processor running at 33 MHz and 16MB of RAM.

This RAID Controller supports both Fast Wide SCSI (20MBps data transfer rate) and Ultra Wide SCSI (40MBps data transfer rate)

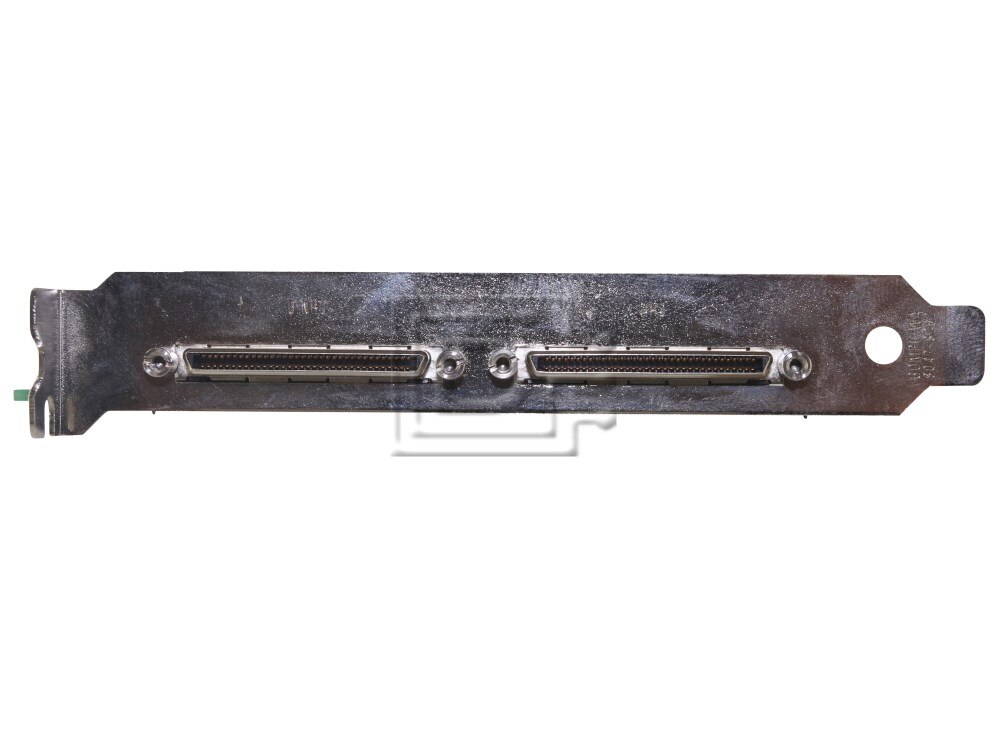

Connector types : Two 68 pin internal connectors, two 50 pin internal connectors and two external 68 pin VHDCI Female connectors.

Alt DPN : 01631T

InterfacePCI 2.1
Processor32-bit Intel® i960CA RISC processor
Card Size12.3" x 4.2" (31.2cm x 10.7cm)
Connector Types2x 68 pin Internal Connectors; 2x 50 pin Internal Connectors; 2x External 68 pin VHDCI Female Connectors

Alternate MPNs: 01631T

Weight: 1.5 lb

Warranty: 1 Year DiscTech
