Dell Part #/MPN: J23
DiscTech Item #: DEL-J23-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:29Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
Bays/Ports/Slots: 23
U Height: 2U
Wattage/VA: 550W
Ideal Chia Mining / Farming Storage Array - Best value / Lowest cost of TB/Watt - Dell CSA J23 / J23C Cloud Storage Array SAS / SATA 2U - 23 Bays with trays - Brand New
We have excellent bundled prices for systems loaded with drives. Call for details!
Ideal Chia Mining / Farming Storage Array - Best value / Lowest power of TB/Watt for Chia Crypto Plots / Farm. Supports 23 LFF 3.5" Hard Drives.

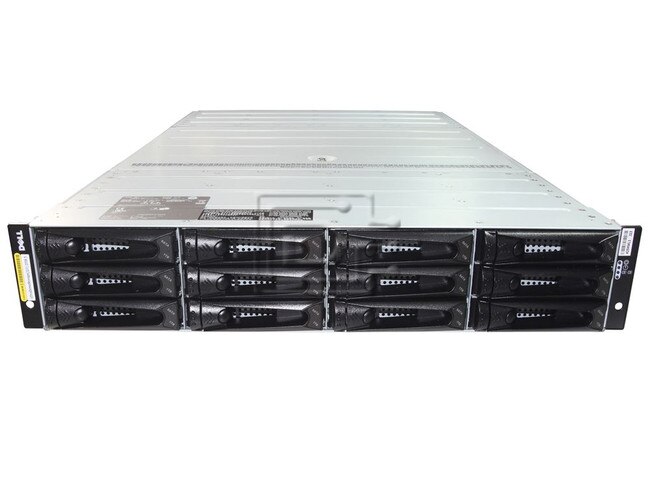

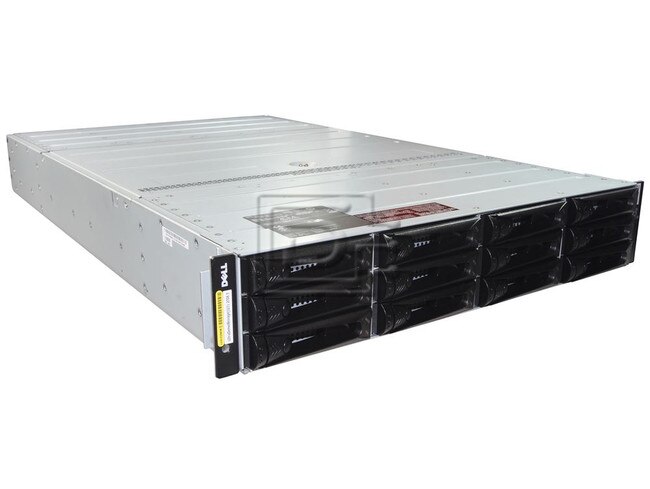

DELL PowerVault CSA Model J23 / J23C (Cloud Storage Array) is a 2U Rackmount 23-drive JBOD direct attached SAS storage array.
The Dell J23 is compatible with any server with an available external SAS RAID port (PERC 6/E or H800 / H810 / H830 - not included).
This DELL CSA was developed for cloud server data center environments to minimize rack space and power demands while maximizing density & capacity.
The Dell CSA is an ideal solution for an economical, low-power consumption, high-density disk-based backup
**COMBINE MULTIPLE UNITS FOR MAXIMUM CAPACITY**
Single 2U J23 DAS Array 23-bay capacity is 460TB MAX (23x 20TB HDDs)
*Up-to four (4) 2U DELL CSA units can be "daisy-chained" together from a single Dual Port SAS RAID HBA, offering the market's highest-available storage density of an astonishing 1840-Terabytes in an 8U rack space.
(* dependent on capabilities of RAID controller used.)
Alt Pt#: T084N / J23C
Compatibility: Recommended External RAID Controllers: Not included
- Dell Perc 6/E (Drives 2TB or smaller capacity only)
- Dell Perc H800
- Dell Perc H810
- Dell Perc H830 - (Best performance)
(SAS / SATA hard drives with 3.3v pin3 power disable feature are not supported, but can be modified to be compatible by blocking or removing power connector PIN #3 from the drive)
We have excellent bundled prices for systems loaded with drives. Call for details!
Dell CSA Specifications
- Dell Model - Cloud Storage CSA
- Drive Bays - 23x 3.5" SAS or SATA (12 front, 11 rear) up to 20TB per disk
- JBOD Max Native Capacity - 460 Terabytes (20TB x 23 HDDs)
- Interface - 3/6 Gbps SAS
- Backplane - 23x SAS 3.5-Inch (12 front, 11 Rear)
- Form Factor - 2U Rackmount

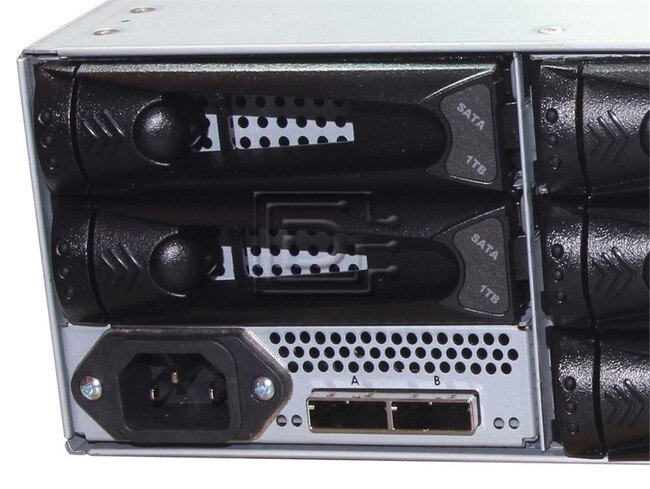

- Modules - 2-Channel SAS SFF-8088 (Non Hot Swap)
Power - 550W Non-Redundant - 23 x 3.5" Hot Swap Hard Drive Caddys included
Recommended Controllers
- Dell Perc 6/e (Drives 2TB or smaller capacity only)
- Dell Perc H800
- Dell Perc H810
- Dell Perc H830 (Best performance)
- 3.5" SAS HDDs*
- 3.5" SATA HDDs*
*(SAS / SATA drives with pin3 power disable feature are not supported, but can be modified to be compatible)
Click here to view the manufacturer's item description/brochure
Alternate MPNs: T084N J23C
Weight: 80 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
