Dell Part #/MPN: K09CJ
DiscTech Item #: DEL-K09CJ-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
Bays/Ports/Slots: 8

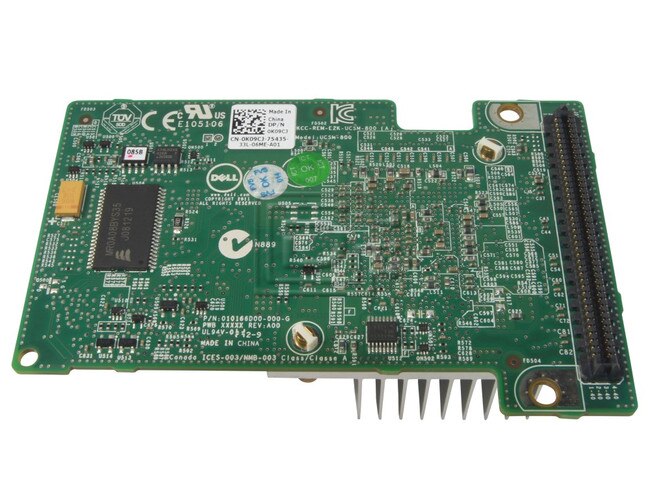

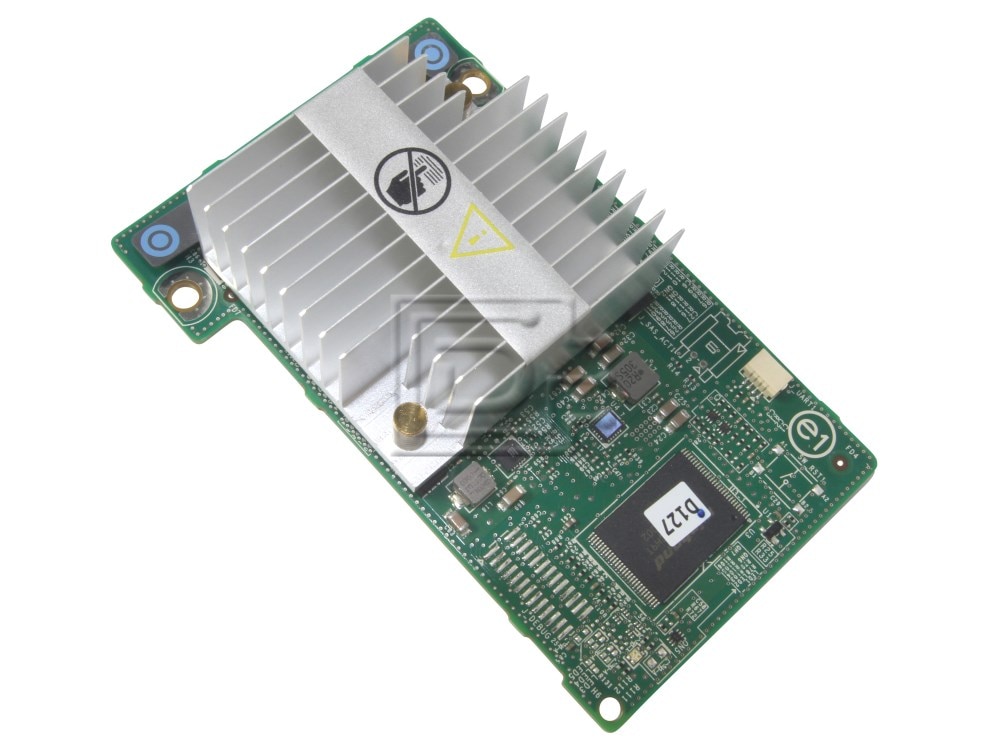

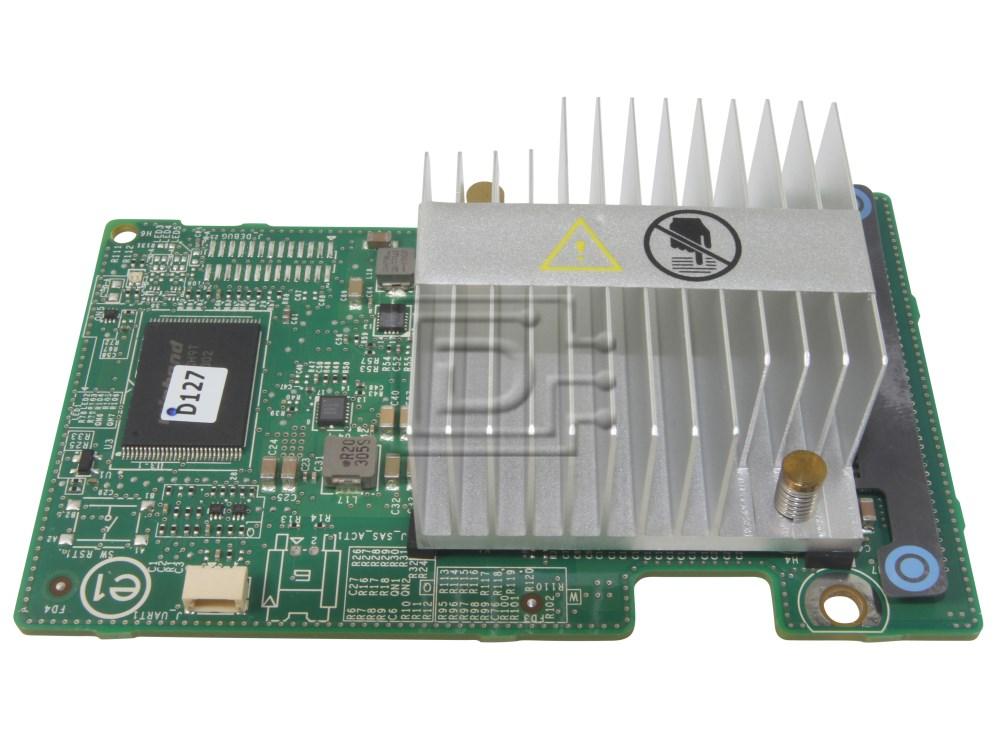

Dell PERC H310 Mini Mono K09CJ SAS / SATA RAID Controller 6.0Gb/s - New Pull
This controller is designed to work in the dedicated proprietary expansion slot on PowerEdge servers
The DellTMPERC (PowerEdgeTM RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management—providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server up time.
PERC H310: Dell H310 RAID controller cards offer a straight-forward solution that includes essential RAID levels and uncomplicated configuration options. In addition, these cards connect to SATA and SAS hard disk drives and solid state drives, allowing for tiered storage that optimizes cost and performance
Seamless migration: A unique feature of the PERC H310 is its ability to seamlessly migrate to other PERC product lines. Simply plug in a new controller to recognize and import the existing array without any reconfiguration. Plus, Dell OpenManage™ Storage Services (OMSS) provides a consistent user interface to manage any PowerEdge SATA or SAS arrays.
6Gb/s SAS performance advantage: 6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS and 3Gb/s SATA hard drives. Regardless of the drive speed, 6Gb/s PowerEdge RAID controllers deliver significant performance improvements in both read and write applications as compared to their 3Gb/s predecessors.
DPN: 0K09CJ / K09CJCompatibility:
Compatible with the following Dell storage enclosures:
- PowerEdge R320
- PowerEdge R420
- PowerEdge R520
- PowerEdge R620
- PowerEdge R720
- PowerEdge R720xd
Interface Type | SAS / SATA |
Host Bus Type | PCI-E 2.0 |
Dell Series | PERC H310 |
Device Type | Serial Attached SCSI Adapter Raid Controller Card |
Connectors | 2 Internal x4 mini-SAS SFF8087 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0K09CJ
Weight: 0.5 lb
Warranty: 1 Year DiscTech
