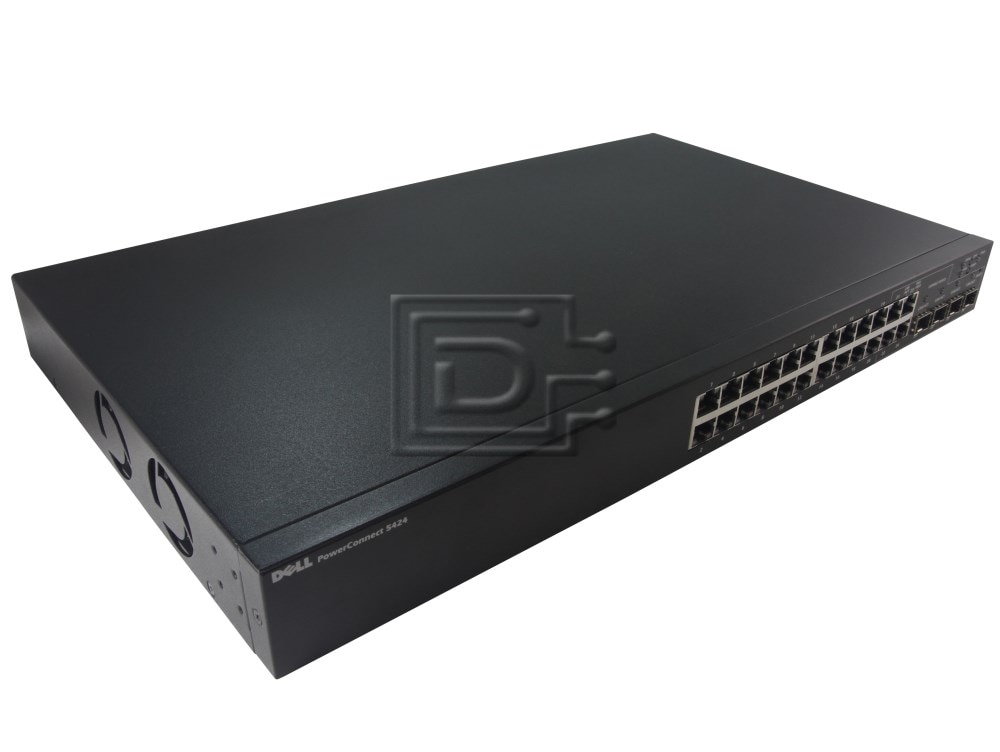

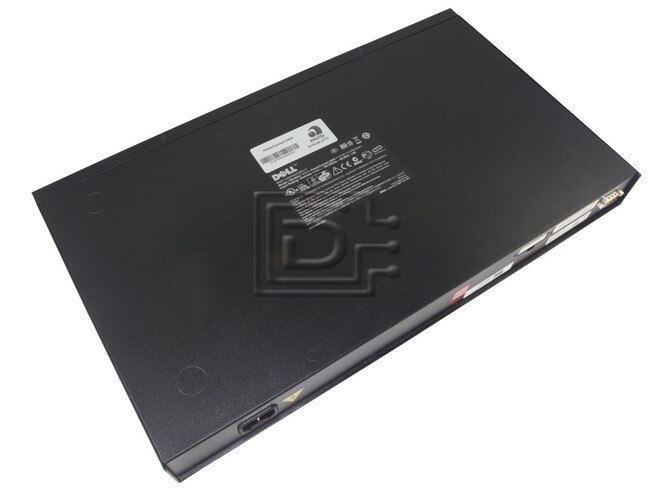

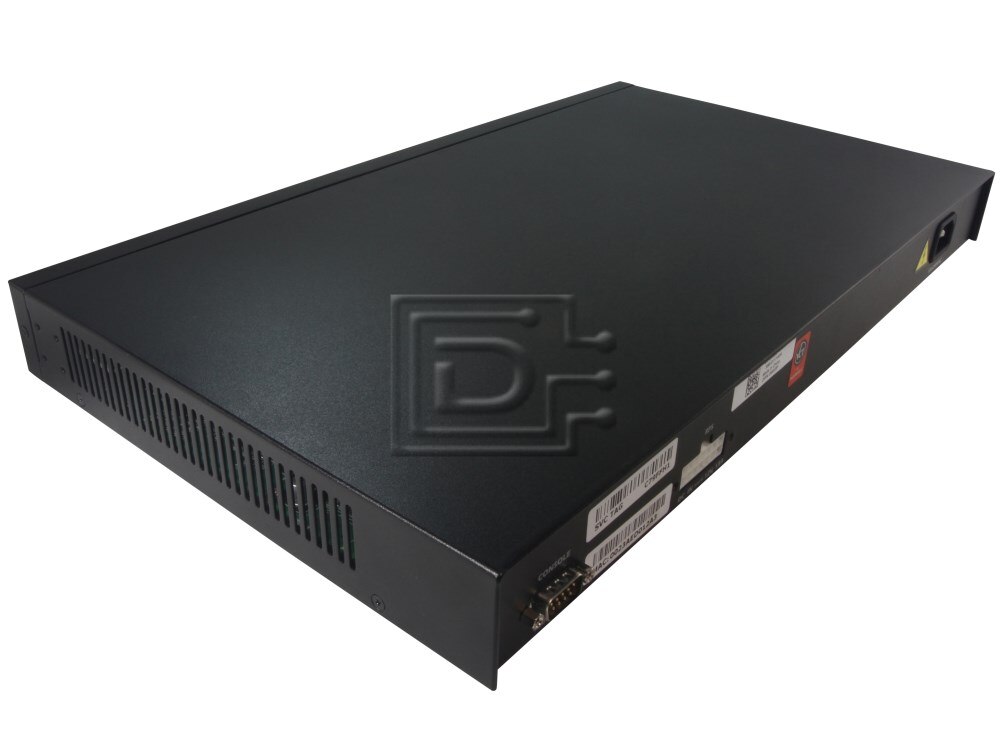

Dell PowerConnect 5424 24 Port Gigabit Managed Ethernet Switch

(0) No Reviews Yet

Dell Part #/MPN: PC5424

DiscTech Item #: DEL-PC5424-OB-OE


$899.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$899.00

Interface Types: Ethernet RJ45, SFP

Electrical Interface: Gigabit Ethernet - 1Gbps

On-Board Cache: 64MB

Bays/Ports/Slots: 24

U Height: 1U

Voltage: 220-240V

Untitled Document
 Port Attributes
24 10/100/1000BASE-T auto-sensing Gigabit Ethernet switching ports

4 SFP combo slots for fiber media support (Note: SFP slots are used instead of the built-in 10/100/1000BaseT ports)

Auto-negotiation for speed, duplex mode and flow control

Auto MDI/MDIX Port mirroring Broadcast storm control

  Performance
Switch Fabric Capacity 48.0 Gbps

Forwarding Rate 35.6 Mpps

Up to 8,000 MAC Addresses



  Availability
Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support

External redundant power support with PowerConnect RPS-600 (sold separately)

Cable diagnostics via Virtual Cable Tester



  VLAN
VLAN support for tagging and port-based as per IEEE 802.1Q; protocol-based VLANs

Up to 247 VLANs supported

Dynamic VLAN with GVRP support



  Quality of Service
Layer 2 Trusted Mode (IEEE 802.1p tagging)

Layer 3 Trusted Mode (DSCP)

4 Priority Queues per Port

Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling



  Multicast
Static IP Multicast

IGMP snooping for IP multicast support



  Security
Switch access password protection

User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access

Port-based MAC Address alert and lock-down

IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP

RADIUS and TACACS+ remote authentication for switch management access

SSLv3 and SSHv2 encryption for switch management traffic

Management access filtering via Management Access Profiles

IEEE 802.1x based edge authentication



  Other Switching
Link Aggregation with support for up to 8 aggregated links per switch and up to 8 member ports per aggregated link (IEEE 802.3ad)

LACP support (IEEE 802.3ad)

Supports jumbo frames up to 9,018 bytes



  Management
Web-based management interface

Industry-standard CLI accessible via Telnet or Local Serial Port

SNMPv1 and SNMP v2c supported

4 RMON groups supported (history, statistics, alarms and events)

TFTP transfers of firmware and configuration files

Dual Firmware images on-board

Multiple Configuration file upload/download supported

Statistics for error monitoring and performance optimization including port summary tables

BootP/DHCP IP address management supported

Syslog remote logging capabilities



  Chassis
440 x 253 x 44 mm (W x D x H)

1U, rack-mounting kit included

Approximate weight: 3.6 kg



  Hardware
64MB of CPU SDRAM

16MB of Flash Memory



  MIB Support
RFC 1213 MIB II

RFC 1215 Standard Traps

RFC 1286 Bridge MIB

RFC 1442 SMIv2 (SNMPv2 MIB)

RFC 1451 Manager-to-Manager MIB

RFC 1492 TACACS+

RFC 1493 Definitions of Managed Objects for Bridges

RFC 1573 Evolution of Interfaces

RFC 1643 Etherlike MIB

RFC 1757 Remote Network Monitoring (RMON) MIB

RFC 1907 SNMP v2 MIB

RFC 2011 Internet Protocol (IP) MIB using SMIv2

RFC 2012 Transmission Control Protocol (TCP) MIB using SMIv2

RFC 2013 User Datagram Protocol (UDP) MIB using SMIv2

RFC 2233 Interfaces Group using SMIv2

RFC 2618 RADIUS MIB

RFC 2665 Ethernet-like Interface Types MIB

RFC 2666 Identification of Ethernet Chip sets

RFC 2674 MIB for Bridge with Traffic Classes, Multicast Filtering and VLAN Extension (IEEE802.1p/q MIB)

RFC 2737 ENTITY-MIB

RFC 2819 RMON MIB

RFC 2863 Interface Evolution

Dell 5324 Private MIB



  Standards Supported
IEEE 802.1D

IEEE 802.1Q

IEEE 802.1p

IEEE 802.1w

IEEE 802.1x

IEEE 802.2

IEEE 802.3

IEEE 802.3I

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.ab

IEEE 802.3ac

IEEE 802.3ad

IEEE 802.1v



  Peripheral Products (sold separately)
Dell SFP Transceivers (1000-SX and 1000-LX)

RPS-600 Redundant Power Supply



  Environmental
Operating Temperature: 0º C to 40º C

Storage Temperature: -20º C to 70º C

Operating Relative Humidity: 10% to 90% non-condensing


Click here to view the manufacturer's item description/brochure

Weight: 22

Warranty: 1 Year DiscTech

New Open Box

Condition Levels Explained

The product is new, either in resealed factory packaging or replacement packaging. (Typically on hard drives this means that the drives have been re-bagged).The item may be a customer returned item.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
