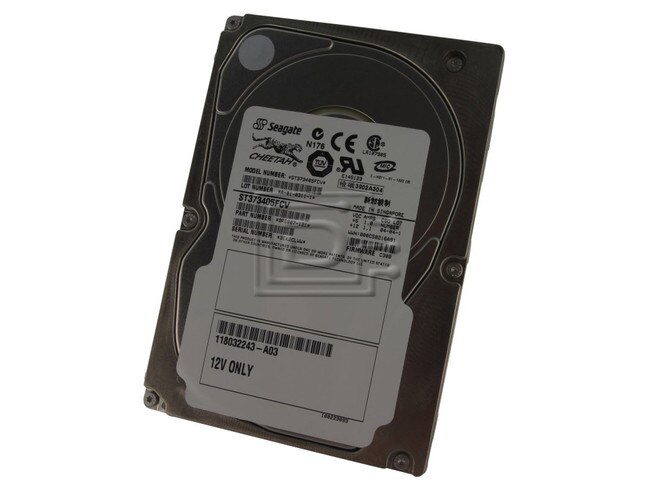

Seagate 73LP ST373405FCV Fibre / Fiber Channel Hard Drive

Seagate Part #/MPN: ST373405FCV

DiscTech Item #: SGT-ST373405FCV-NP-OE


$129.00
$129.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 38.4 to 63.9

Average Seek Time: 5.1 / 5.5

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 16MB

Seagate 73LP 73GB 10K 2Gbps FC-AL Fibre Fiber Channel Hard Drive - New Pulls

Distinctions

  • The industry's only fifth-generation 10,000-RPM mechanism
  • Industry's first 1,200,000-hour MTBF
  • 59% faster data rate over the previous generation
  • Unmatched Design and Manufacturing Experience
  • The Lowest Cost of Ownership 10K Storage Solution
  • The Cheetah Brand of Disc Drives are the Preferred Disc Drive for Storage Area Networks (SAN)

Seagate continues its lead in Enterprise Storage. Seagate's fifth generation of Cheetah products include the Cheetah 36XL and Cheetah 73LP. This family of 10,000-RPM drives supports capacities from 9.2 to 73.4 Gbytes and seek times as fast as 4.9 ms in a 3.5-inch form-factor for mainstream and high-performance users. Interface options include Ultra160 SCSI and the new 2Gbit/sec Fibre Channel.

SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2002 ST-373405FC Fibre Channel FC-AL, Dual Port (Cheetah 73LP) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º ST-373405FC ÈÍÍÍÍÍÍÍÍÍÍͼ 40 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄijÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄ20/) BOTTOM Notes on 40 pin I/O connector: +12v = pins 2, 3, 4, 21 +5v = pins 19, 20, 40 GND = pins 6, 22, 23, 26, 29, 32, 35 Mating FC connector: AMP US p/n: 787317-1 straight-in, Male 40-pin ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-373405FC) ÈÍÍÍÍÍÍÍÍÍÍÍͼ Reserved. Shipped with cover installed. Do not remove. Do not install jumpers ³ ÚÂÄÄÄÄ Reserved ³ ³³ÚÄÄÄ Fault LED ³ ³³³ÚÄÄ Port B Bypass LED ³ ³³³³ÚÄ Port A Bypass LED TOP (HDA) ÕØÍÍ͸ ³³³³1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍ;³³³ÀÅÙ ³ J6 ³³³ ÀÄÄ Ground LED ÄÙ ³³ÀÄÄÄÄ Active LED ³ÀÄÄÄÄÄ Ground ÀÄÄÄÄÄÄ Remote LED (pin-11 +5v) ST373405FC drives have two independent FC-AL ports. These ports may be connected on independent loops or on the same loop. Port A and Port B may be connected in any order or combination. ST-373405FC UNFORMATTED CAPACITY (GB) ________________97.0 FORMATTED CAPACITY (GB) __________________73.4 AVERAGE SECTORS PER TRACK ________________606 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________236,392 CYLINDERS ________________________________29,549 user HEADS ______PHYSICAL______________________8 DISCS (3.0 in) ___________________________4 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML 16/17 EPR4 INTERNAL TRANSFER RATE (mbits/sec)________399 to 671 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_38.4 to 63.9 EXTERNAL TRANSFER RATE (mbyte/sec/port)___106 Sync SPINDLE SPEED (RPM) ______________________10,041 AVERAGE LATENCY (mSEC) ___________________2.99 BUFFER (/optional FCV) ___________________4MB/16MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________FC-AL Fibre Channel - Arbitrated Loop, ASA II BYTES PER TRACK __________________________397,385 SECTORS PER DRIVE ________________________143,374,741 TPI (TRACKS PER INCH) ____________________38,000 BPI (PEAK KBITS PER INCH) ________________474 AVERAGE ACCESS (ms read/write)____________5.1/5.5 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.4/0.6 MAX FULL SEEK (ms read/write) ____________9.4/9.8 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________10 abnormal ________________________40 nonoperating ____________________75/225/120 ACOUSTICS (Bels typical, sound power) ____3.6 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.2/34.8 POWER REQUIREMENTS: +12V START-UP (amps) _2.21 +12V TYPICAL (amps) __0.54 idle +5V START-UP (amps) __0.80 +5V TYPICAL (amps) ___0.74 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.5/0.68 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (10/09/2002)

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
