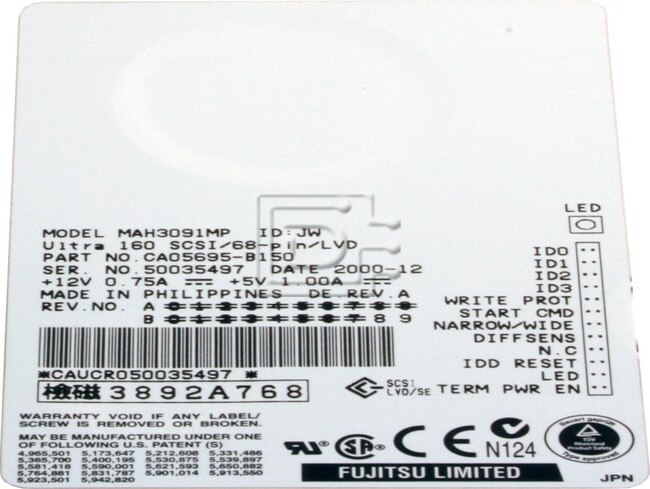

FUJITSU Part #/MPN: MAH3091MP
DiscTech Item #: FUJ-MAH3091MP-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 9GB
Speed: 10,000RPM
Interface Types: SCSI 68pin HD68
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 80
Average Seek Time: 5.2 / 5.8
Electrical Interface: SCSI LVD U160 - 160MBps 16-bit
On-Board Cache: 4MB

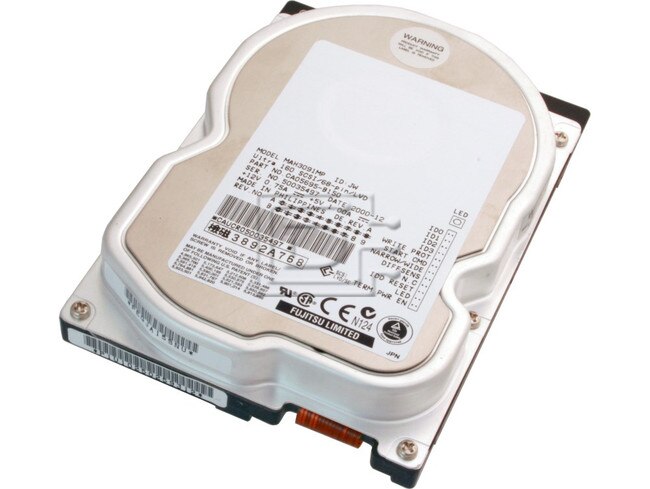

Fujitsu MAH 9GB 10K U160 68pin SCSI Hard Drive MAH3091MP - Brand New
Fujitsu's 9.1GB*1 and 18.2GB*1 are large-capacity, high-speed, low profile 3.5-inch disk drives. They incorporate Fujitsu designed GMR (giant magneto-resistive) heads and utilize EPR4ML read channel technology, allowing extremely high areal density of approximately 3.7Gbits/square inch. Rotational speed of MAH3091/3182 is 10,025rpm, permitting fast average positioning time of 5.0ms for read and fast average latency time of 2.99ms. Adopting SDRAM, the drives provide a data transfer rate of 80MB per second, and the 4MB*2 buffer enables efficient data storage and quick access to information. Fujitsu also offers the industry's leading interface options, including Ultra2 SCSI (LVD) and FCAL (MAH3091/3182). The enhanced S.M.A.R.T. detection system and ECC technology reflect Fujitsu's high reliability standards. With exceptional capacity, high rotational speed, and excellent reliability, the MAH3091/3182 is well suited for networks, minicomputers, workstations, file servers, and multi-user applications that require superior performance and reliability.
FUNCTIONAL SPECIFICATIONS
MODEL | MAH3182MC | MAH3182MP | MAH3091MC | MAH3091MP | |
---|---|---|---|---|---|
Storage capacity (Formatted)*1 | 18.2 GB | 9.1 GB | |||
Disks | 5 | 3 | |||
Heads (Read/Write) | 10 | 5 | |||
Track capacity | 139,776 to 215,040 bytes (14 zones) | ||||
Track per cylinder | 10 | 5 | |||
Cylinders | 9,866 | ||||
Sectors/Track*2 | 273 to 420 (14 zones) | ||||
Seek time | Track to track | Read 0.7ms Typical / Write 1.1ms Typical | |||
Average | Read 5.2ms Typical / Write 5.8ms Typical | ||||
Maximum | Read 11.0ms Typical / Write 12.0ms Typical | ||||
Average latency time | 2.99ms | ||||
Rotational speed | 10,025min2 {10,025rpm} | ||||
Recording density | 8,440 to 10,826bit/mm {214,400 to 275,000bpi(14 zone)} | ||||
Track density | 531track/mm {13,500tpi} | ||||
Data transfer rate (maximum) | 80MB/s (synchronous) | ||||
Recording code | 16/17 EPR4ML | ||||
Interface | LVD / Ultra-2 SCSI / Single Port | ||||
SCA-2 | 68-pin Wide | SCA-2 | 68-pin Wide | ||
Head positioning method | Rotary VCM | ||||
Start time | 30 seconds Typical/ 60 seconds Typical | ||||
Stop time | 30 seconds Typical |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
