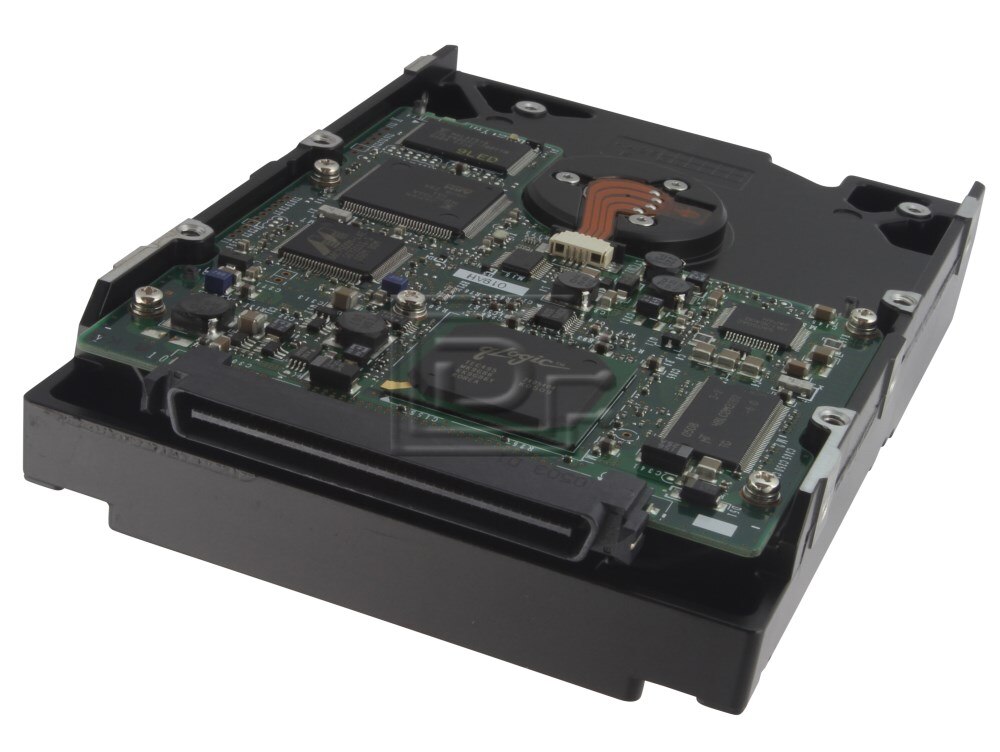

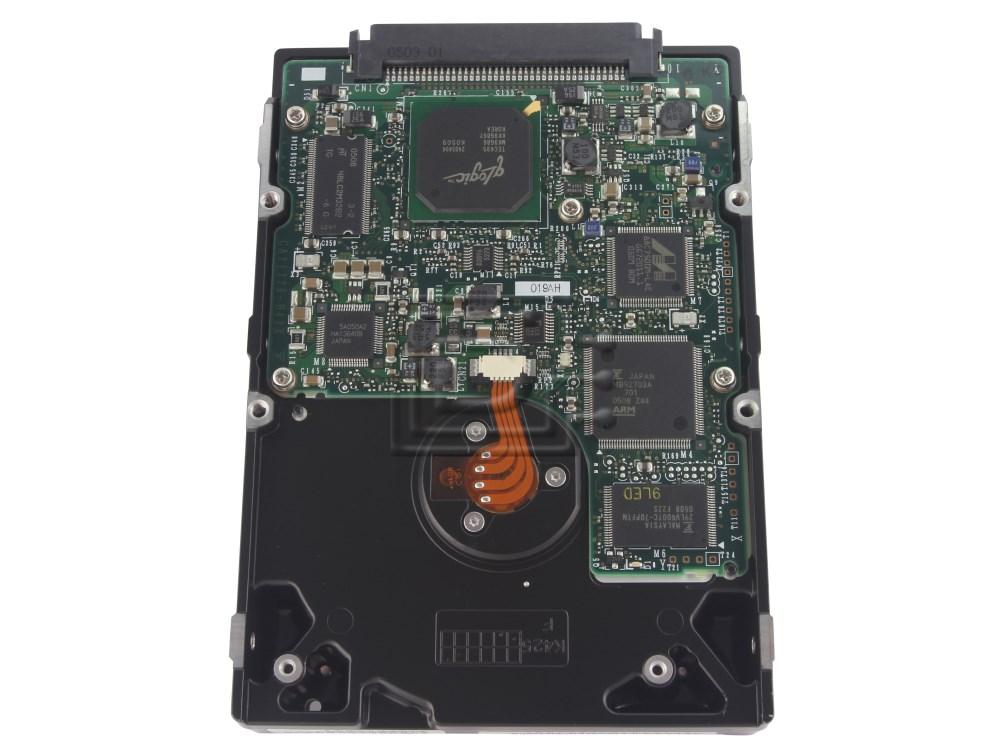

Fujitsu MAT3300NC SCSI Hard Drives

(0) No Reviews Yet


DiscTech Item #: FUJ-MAT3300NC-FR-OE


Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 4.5 / 5.0

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB




Functional Specifications
Storage Capacity (formatted)73.5 GB147.0 GB300.0 GB
Heads (read/write)258
Seek TimeTrack to trackRead: 0.2 ms (typ) / Write: 0.4 ms (typ)
AverageRead: 4.5 ms (typ) / Write: 5.0 ms (typ)
Full trackRead: 10.0 ms (typ) / Write: 11.0 ms (typ)
Average Latency2.99 ms
Rotational Speed10,025 RPM
Areal Density75 Gbits/sq. in. (max.)
Data Transfer RateTo/from media132 MB/s (max.)
To/from hostSCSI: 320 MB/s, FC: 2 Gb/s
Recording Code32/34 MEEPRML
InterfaceSCA-2 (NC Series), 68Pin Wide (NP Series), FC-AL
Head Positioning MethodRotary VCM
Start Time30 s (typ)
Stop Time30 s (typ)
Buffer Size8 MB
Physical Specifications
Power RequirementsVoltage5 V ± 5%, 12 V ± 5%
Spin-up12V ± 5% @ 2.5A (peak)

3.0 A (peak < 100 us)

5V ± 5% @ 0.7A
Idle (typ.)SCSI9.5 W
FC10.5 W
Dimensions (HxWxD)25.4mm x 101.6mm x 146.0mm
Ambient TemperatureOperating5°C to 55°C (DE base 60°C max)
Non-operating-40°C to 70°C
Gradient15°C/H max
Relative HumidityOperating5% to 95% (non-condensing)
Non-operating5% to 95% (non-condensing)
Max. wet bulb29°C (operating)
VibrationOperating0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz)
Non-operating3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz)
ShockOperating65 G max. (2 ms)
Non-operating225 G max. (2 ms)
Altitude (operation)Operating3,048 m (max.)
Non-operating12,192 m (max.)
Acoustics Noise (idle sound power) (typ.)3.4 bels (ready)
Reliability Specifications
MTBF1,200,000 hours
Component Life1 year
Error RatesSeek errors10 per 108 seeks
Unrecoverable errors1 per 1015 bits read
Limited Warranty1 year (from date of purchase).


Weight: 1.8 lb
