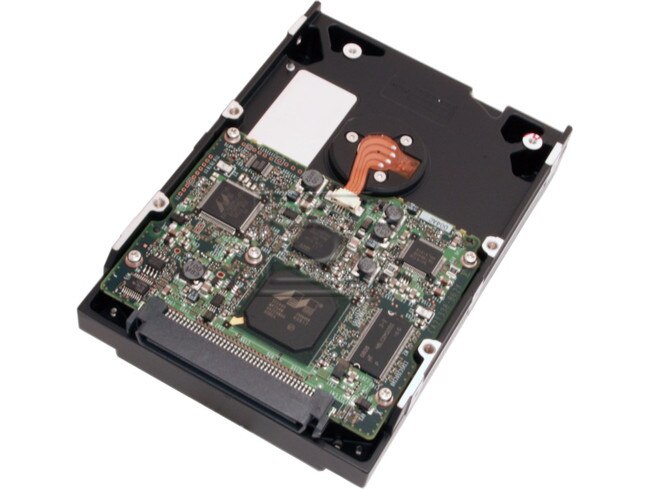

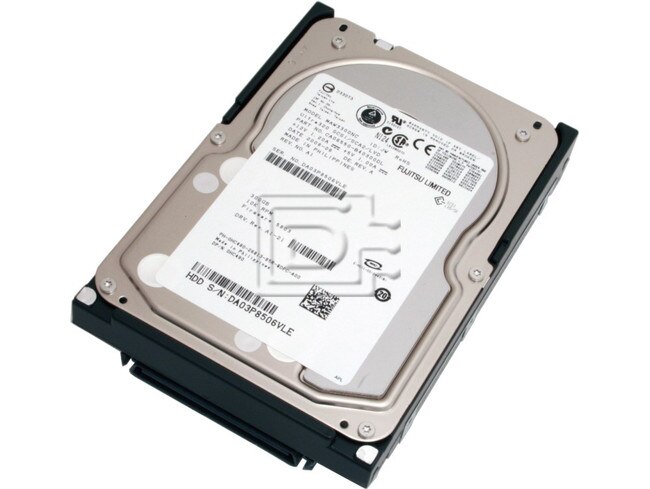

Fujitsu MAW3300NC SCSI Hard Disk Drive

(0) No Reviews Yet

FUJITSU Part #/MPN: MAW3300NC

DiscTech Item #: FUJ-MAW3300NC-BN-OE-DEL


$299.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$299.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 4.5 / 5.0

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

Fujitsu 300GB 10K U320 80pin SCA-2 SCSI Hard Drive RoHS Compliant MAW3300NC - Brand New OEM

* Large capacity: Massive capacity has been achieved through the development of head, media, signal processing technology, servo technology*1 as an element technology allowing up to to 11Gb/cm2 (75Gb/in 2) high density and up to 75GB*2 per disk, 300GB*2 per drive (4 disks) high capacity.

* High Performance: Read Ahead Cache *3 and Write Reordering Cache *4 enable the drives to execute read and write operation in high speed.

* High Reliability: On the fly ECC (Error Correction Code) and S.M.A.R.T *5 function enable the drives to improve the data reliability.

* Silence: FDB spindle motor is incorporated for silent operation

DPNs: HC490 0HC490


Compatibility:

This drive is compatible with any server that accepts 3.5"x1" (LFF) 80-Pin SCSI drives.

ModelMAW3073

NC/NP/FC
MAW3147

NC/NP/FC
MAW3300

NC/NP/FC
Functional Specifications
Storage Capacity (formatted)(1)73.5 GB147.0 GB300.0 GB
Disks134
Heads (read/write)258
Guaranteed Seectors585,937,500
Bytes/Sector512
Total Bytes Per Drive300,000,000,000
Seek TimeTrack to trackRead: 0.2 ms (typ) / Write: 0.4 ms (typ)
AverageRead: 4.5 ms (typ) / Write: 5.0 ms (typ)
Full trackRead: 10.0 ms (typ) / Write: 11.0 ms (typ)
Average Latency2.99 ms
Rotational Speed10,025 RPM
Areal Density60-75 Gbits/sq. in.
Data Transfer RateTo/from media132 MB/s
To/from hostSCSI: 320 MB/s, FC: 2 Gb/s
Recording Code32/34 MEEPRML
InterfaceSCA-2 80Pin (NC Series), 68Pin Wide (NP Series), SCA-2 40Pin (FC Series)
Head Positioning MethodRotary VCM
Start Time30 s (typ)
Stop Time30 s (typ)
Buffer Size8 MB
Physical Specifications
Power RequirementsVoltage5 V ± 5%, 12 V ± 5%
Spin-up12V ± 5% @ 2.5A (peak)

3.0 A (peak < 100 us)

5V ± 5% @ 0.7A
Idle (typ.)SCSI9.5 W
FC10.5 W
Dimensions (HxWxD)25.4mm x 101.6mm x 146.0mm
Weight750g
Ambient TemperatureOperating5°C to 55°C (DE base 60°C max)
Non-operating-40°C to 70°C
Gradient15°C/H max
Relative HumidityOperating5% to 95% (non-condensing)
Non-operating5% to 95% (non-condensing)
Max. wet bulb29°C (operating)
VibrationOperating0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz)
Non-operating3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz)
ShockOperating65 G max. (2 ms)
Non-operating225 G max. (2 ms)
Altitude (operation)Operating3,048 m (max.)
Non-operating12,192 m (max.)
Acoustics Noise (idle sound power) (typ.)</= 3.4 bels (ready)
Reliability Specifications
MTBF1,200,000 hours
Component Life5 years
Error RatesSeek errors10 per 108 seeks
Unrecoverable errors1 per 1015 bits read

Alternate MPNs: HC490 0HC490

Weight: 1.8 lb

Warranty: 1 Year DiscTech
