FUJITSU Part #/MPN: MBA3073RC
DiscTech Item #: FUJ-MBA3073RC-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 73GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 179
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

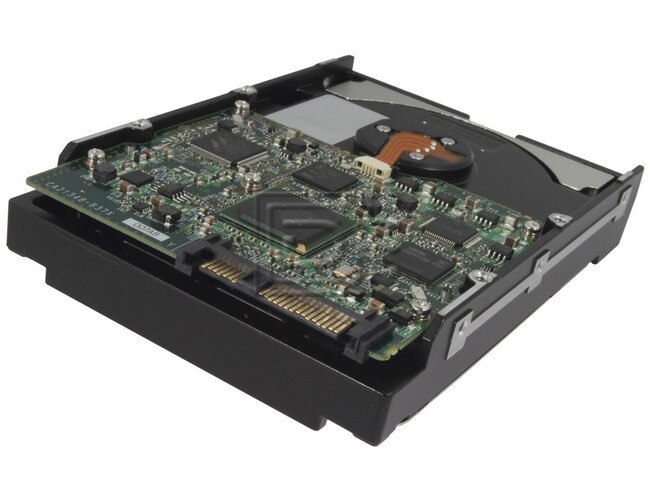

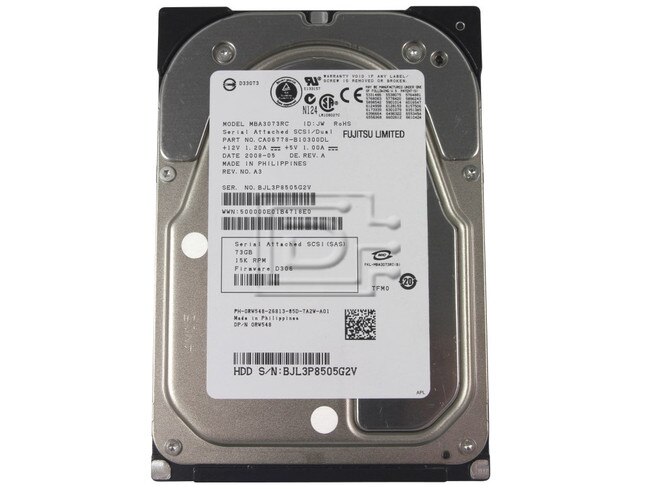

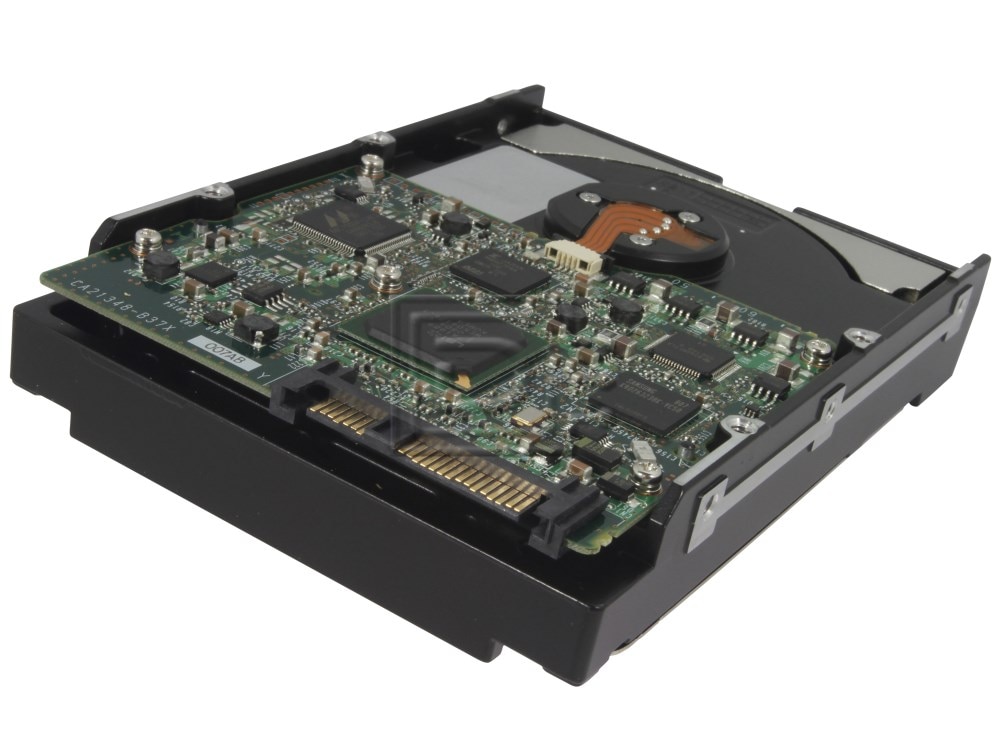

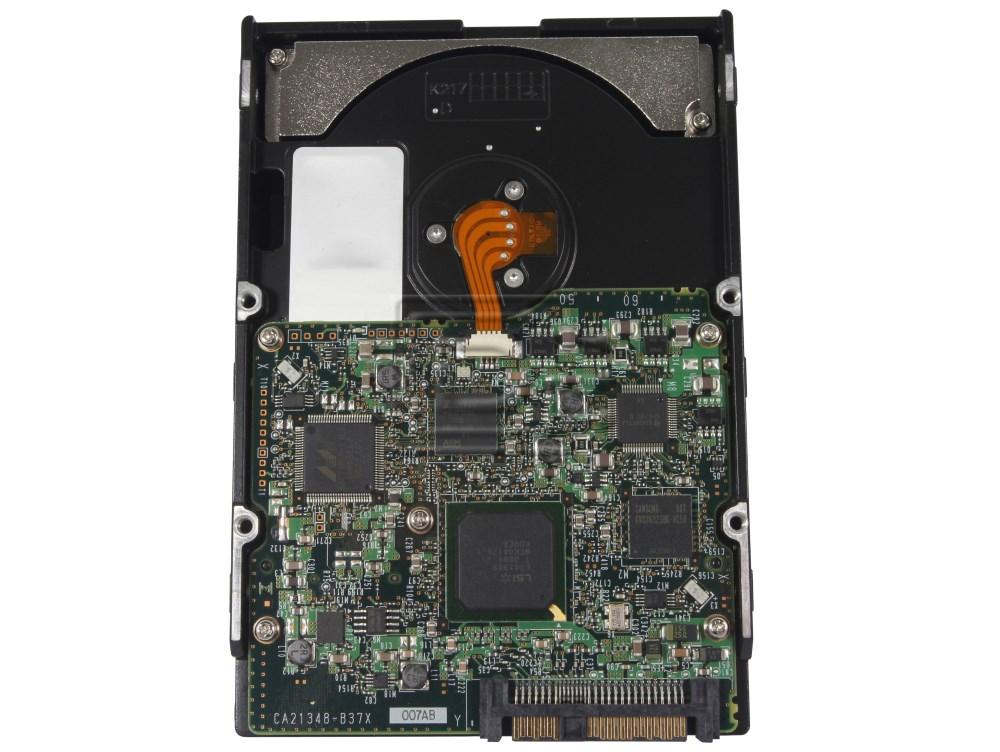

Fujitsu MBA MBA3073RC 73GB 15K 3Gbps Serial Attached SCSI Hard Drive - Refurbished - OEM
Fujitsu's latest generation 15K RPM Enterprise Hard Disk Drives (MBA Series) continue to represent some of the fastest enterprise 3.5-inch hard disk drives in the industry. Leveraging our technology expertise and heritage, we deliver reliable, high-capacity HDDs for your customer’s most demanding storage applications.
With 73, 147 and 300GB capacity points this latest drive technoogy offers low power consumption, high reliability, and faster internal data rates. Interface options include 3Gb/sec SAS, 68/80-pin U320 SCSI and 4Gb/sec Fibre Channel.
Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology. This provides a flexible and cost effective storage solution for your most demanding applications including rack and tower servers, storage arrays, RAID systems and digital video systems.
Fujitsu p/n: CA06778-B100
DPN: 0RW548 / RW548
Compatibility:
This drive is compatible with the following servers (list is not all inclusive):
Dell PowerEdge 1950, 1955, 2900, 2950, 6950
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
FUNCTIONAL SPECIFICATIONS | |
Formatted storage capacity | 73.5 GB |
Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
Seek time (average) | 3.4 / 3.9 ms. typ. (read/write) |
Seek time (full track) | 8.0/9.0 ms. typ. (read/write) |
Average latency time | 2.00 ms. |
Rotational speed | 15,005 RPM |
Interface | SAS (3Gbps) |
Data Buffer Size | 16 MB |
Recording code | 60/62 MEEPRML |
Head positioning method | ROTARY VCM |
Spindle start time | 20 seconds typical |
Spindle stop time | 20 seconds typical |
PHYSICAL SPECIFICATIONS | |
Power requirement Idle (ready) | 12.8 W typ. |
Form Factor | 3.5-inch x 1-inch high |
Mounting screws | #6 x 32UNC |
Height | 25.4 mm |
Width | 101.6 mm |
Depth | 146.0 mm |
Weight | 0.75 kg |
Ambient temperature (operating) | 5 to 55 degrees C |
Ambient temperature (non-operating) | -40 to 70 degrees C |
Maximum DE surface temperature (operating) | 60 max deg. C |
Gradient | 20 degrees C per hour |
Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
Maximum wet bulb | 29 degrees C (non-condensing) |
Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
Shock (operating) | 65G Max (2ms) |
Shock (non-operating) | 250G Max (2ms) |
Altitude (operating) | 3,000 metres |
Altitude (non-operating) | 12,000 metres |
Acoustic noise (at 1 metre idle) | >/=3.6 (ready) bels |
RELIABILITY | |
MTBF (Mean Time Between Failures) | 1,400,000 power on hours |
Component life (years) Design life used to calculate MTBF. NOT Warranty | 5 years |
Unrecoverable errors | 1 per 10^15 bits read |
Seek errors | 10 per 10^8 seeks |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: CA06778-B100 0RW548 RW548
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
