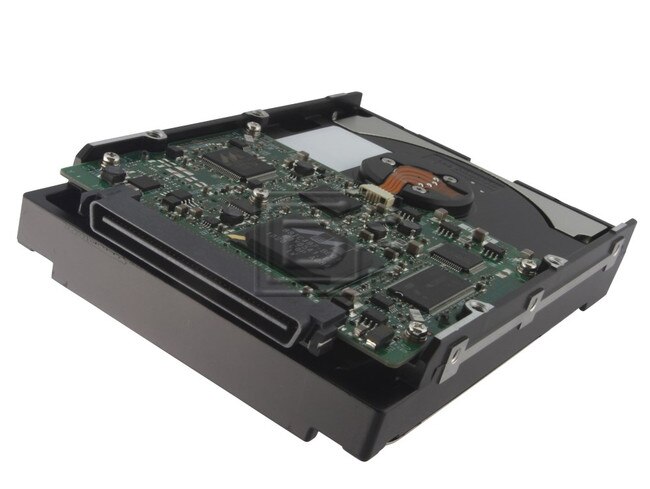

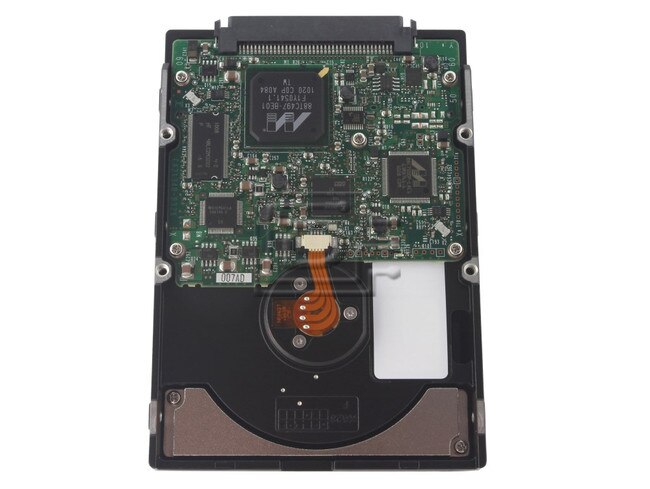

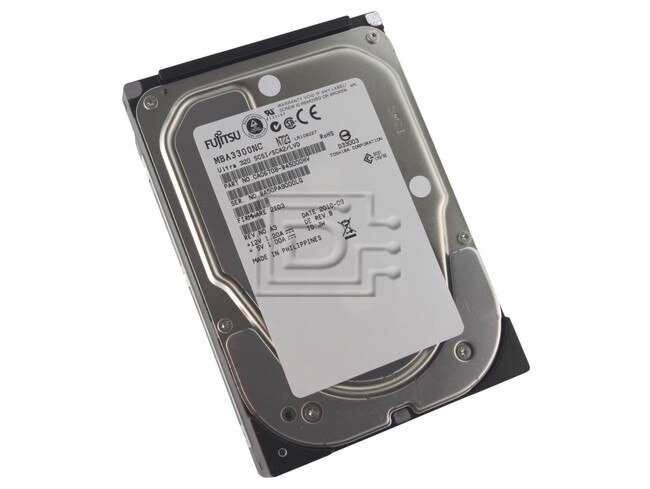

Fujitsu MBA3300NC SCSI Hard Drive

(0) No Reviews Yet

FUJITSU Part #/MPN: MBA3300NC

DiscTech Item #: FUJ-MBA3300NC-BN-5Y


$269.00
$269.00

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 3.4/3.9

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 16MB

Fujitsu MBA3300NC 300GB 15K U320 80pin SCA-2 SCSI Hard Drive RoHS Compliant - Brand New

Fujitsu's latest generation 15K RPM Enterprise Hard Disk Drives (MBA Series) continue to represent some of the fastest enterprise 3.5-inch hard disk drives in the industry. Leveraging our technology expertise and heritage, we deliver reliable, high-capacity HDDs for your customer’s most demanding storage applications.

With 73, 147 and 300GB capacity points this latest drive technoogy offers low power consumption, high reliability, and faster internal data rates. Interface options include 3Gb/sec SAS, 68/80-pin U320 SCSI and 4Gb/sec Fibre Channel.

Leading edge technology enables industry leading performance specifications blended with the latest advances in interface technology. This provides a flexible and cost effective storage solution for your most demanding applications including rack and tower servers, storage arrays, RAID systems and digital video systems.

DPN: 0JU654 JU654

MPN: CA06708-B40300DL CA06708-B400 PN-0JU654-26813-97F-2L9M-A01


Compatibility:

This drive is compatible with any of our SCSI hot-swap trays.

ModelMBA3073

NC/NP
MBA3147

NC/NP
MBA3300

NC/NP
Functional Specifications
Storage Capacity (formatted)73.5 GB147.0 GB300.0 GB
Disks124
Heads (read/write)248
Bytes/Sector512
Seek TimeTrack to trackRead: 0.2 ms (typ) / Write: 0.4 ms (typ)
AverageRead: 3.4 ms (typ) / Write: 3.9 ms (typ)
Full trackRead: 8.0 ms (typ) / Write: 9.0 ms (typ)
Average Latency2. ms
Rotational Speed15,000 RPM
Data Transfer RateTo/from media147 MB/s
To/from hostSCSI: 320 MB/s
Recording Code60/62 MEEPRML
InterfaceSCA-2 80Pin (NC Series), 68Pin Wide (NP Series)
Head Positioning MethodRotary VCM
Start Time20 s (typ)
Stop Time20 s (typ)
Buffer Size16 MB
Physical Specifications
Power RequirementsVoltage5 V ± 5%, 12 V ± 5%
Idle (typ.)9.5 W
Dimensions (HxWxD)25.4mm x 101.6mm x 146.0mm
Weight750g
Ambient TemperatureOperating5°C to 55°C
Non-operating-40°C to 70°C
Gradient20°C/H max
Relative HumidityOperating5% to 95% (non-condensing)
Non-operating5% to 95% (non-condensing)
Max. wet bulb29°C (operating)
VibrationOperating0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz)
Non-operating3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz)
ShockOperating65 G max. (2 ms)
Non-operating250 G max. (2 ms)
Altitude (operation)Operating3,000 m (max.)
Non-operating12,000 m (max.)
Acoustics Noise (idle sound power) (typ.)</= 3.6 bels (ready)
Reliability Specifications
MTBF1,400,000 hours
Component Life5 years
Error RatesSeek errors10 per 108 seeks
Unrecoverable errors10 per 1016 bits read

ROHS Compliant

Alternate MPNs: 0JU654 JU654 CA06708-B40300DL CA06708-B400 PN-0JU654-26813-97F-2L9M-A01

Weight: 1.8 lb

Warranty: 5 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

5 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
