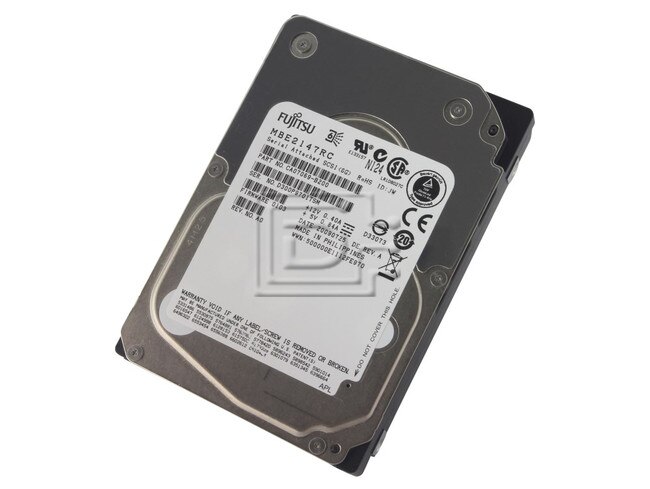

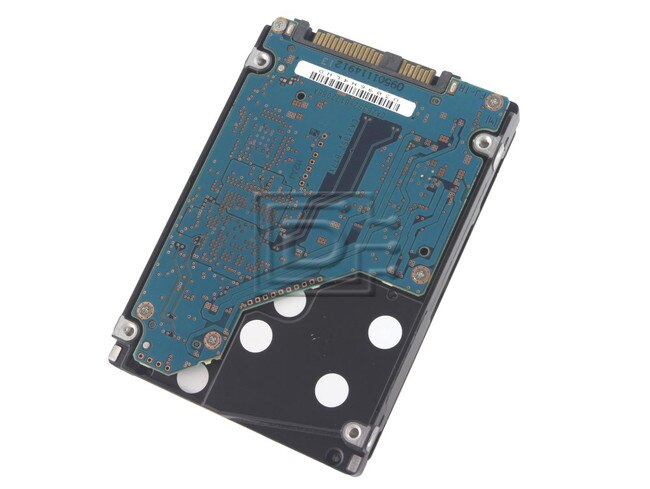

Fujitsu MBE2147RC SAS Hard Disk Drives

(0) No Reviews Yet

FUJITSU Part #/MPN: MBE2147RC

DiscTech Item #: FUJ-MBE2147RC-FR-OE


$129.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$129.00

Enterprise Grade

Capacity: 146GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 2.9 / 3.4

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Fujitsu MBE 147GB 15K 6Gbps SFF Serial Attached SCSI 2.5" Hard Drive MBE2147RC - Factory Recertified

Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu introduces a new enterprise class 2.5-inch SAS drive offering industry leading performance and environmental benefits.

The MBE2-RC series is the first enterprise hard disk drive from Fujitsu to be halogen free. The 15,000 RPM, 6Gb/sec., SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.

The higher capacity and performance meets a wide range of enterprise applications, from highend servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS-2 interface and improved areal densities enable higher data rates.

As part of the Fujitsu Green Policy Innovation program, the new series provides the best-in-class power consumption at 4.1 watts idle, achieving up to 21% reduction from previous generation models, and up to 68% reduction from current 3.5" 15K RPM offerings.

Fujitsu p/n: CA07069-B200


Compatibility:

Dell PowerEdge 1950, 1955, 2900, 2950, 6950



Compaq/HP Proliant:

BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity147.0 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)3.8/4.3 ms. typ. (read/write)
Seek time (full track)7.0/8.0 ms. typ. (read/write)
Average latency time2.0 ms.
Rotational speed15,000 RPM
InterfaceSAS II (6Gbps)
Data Buffer Size16 MB
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)4.1 W typ.
Form Factor2.5-inch x 15mm high
Height15.0 mm
Width69.85 mm
Depth100.45 mm
Weight0.22 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Maximum DE surface temperature (operating)60 max deg. C
Gradient20 degrees C per hour
Relative humidity (operating)5 to 95 % RH (non-condensing)
Relative humidity (non-operating)5 to 95 % RH (non-condensing)
Maximum wet bulb29 degrees C (non-condensing)
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)100G Max (1ms)
Shock (non-operating)400G Max (1ms)
Altitude (operating)3,048 metres
Altitude (non-operating)12,192 metres
Acoustic noise (at 1 metre idle)>/=2.9 (ready) bels

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: CA07069-B200

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
