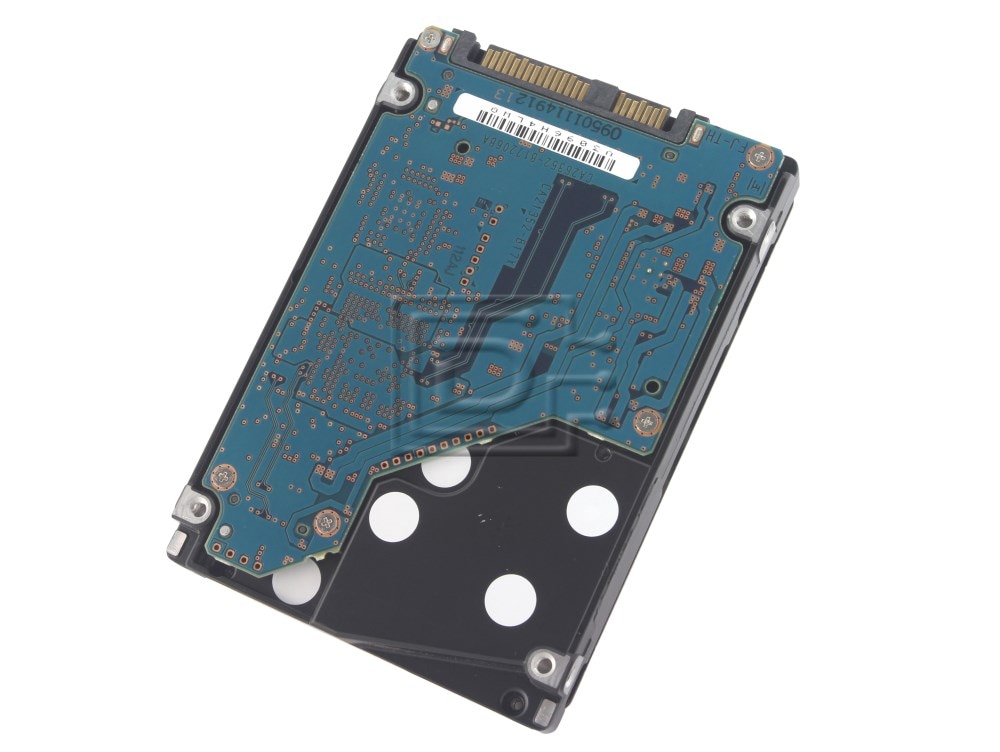

Fujitsu MBE2147RC SAS Hard Drive

(0) No Reviews Yet


DiscTech Item #: FUJ-MBE2147RC-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 146GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 2.9 / 3.4

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Formatted storage capacity147.0 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)3.8/4.3 ms. typ. (read/write)
Seek time (full track)7.0/8.0 ms. typ. (read/write)
Average latency time2.0 ms.
Rotational speed15,000 RPM
InterfaceSAS II (6Gbps)
Data Buffer Size16 MB
Power requirement Idle (ready)4.1 W typ.
Form Factor2.5-inch x 15mm high
Height15.0 mm
Width69.85 mm
Depth100.45 mm
Weight0.22 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Maximum DE surface temperature (operating)60 max deg. C
Gradient20 degrees C per hour
Relative humidity (operating)5 to 95 % RH (non-condensing)
Relative humidity (non-operating)5 to 95 % RH (non-condensing)
Maximum wet bulb29 degrees C (non-condensing)
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)100G Max (1ms)
Shock (non-operating)400G Max (1ms)
Altitude (operating)3,048 metres
Altitude (non-operating)12,192 metres
Acoustic noise (at 1 metre idle)>/=2.9 (ready) bels

Click here to view the manufacturer's item description/brochure

Alternate MPNs: CA07069-B200

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
