FUJITSU Part #/MPN: MHW2120BH
DiscTech Item #: FUJ-MHW2120BH-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 120GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12 / 14
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 8MB

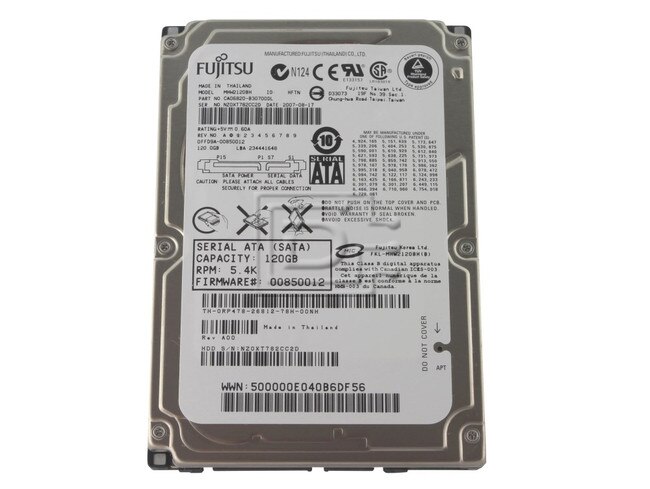

Fujitsu 120 GB 5.4K 2.5" SATA Hard Drive MHY2120BH - New Pull
Fujitsu reaches another landmark with the introduction of its first 2.5-inch SATA product developed using PMR technology. Since notebook manufacturers are beginning to require 160GB SATA hard disk drives for their products, the new Fujitsu PMR models are entering the market at an optimal time to take advantage of this demand.
Engineered to deliver high capacity in a small form factor, the mobile series still retains the outstanding level of quality and reliability for which Fujitsu is renowned. The 5,400RPM mobile HDDs achieve 80GB per platter, among the top in the industry with this spindle speed. Featuring 160GB of storage space, low power consumption and reduced acoustic noise, the 2.5-inch SATA hard disk drives are an excellent choice for today’s ultra-fast, high-capacity notebook computers.
With the delivery of its first generation, perpendicular recording SATA hard disk drive, Fujitsu continues to demonstrate its strong commitment to technology leadership.
Compatibility:
Drive specification | MHW2120BH |
Formatted Gbytes (512 bytes/sector) | 120 |
Bytes per sector | 512 |
Number of Sectors | 234,441,648 |
Spindle speed (RPM) | 5,400 |
I/O data transfer rate (Gb/sec max) | 1.5 |
Cache buffer | 8 Mbytes |
Height (max) | 9.5 mm (0.37 inches) |
Width (max) | 70 mm (2.8 inches) |
Length (max) | 100 mm (3.9 inches) |
Weight (max) grams | 101 |
Track-to-track seek time (msec typical) | 1.5 |
Average seek, read (msec typical) | 12 |
Average seek, write (msec typical) | 14 |
Startup current (typical) 12V (peak) | 1.0 amps |
Operating power (typical) watts | 1.9 |
Idle mode (typical) watts | .6 |
Standby mode (typical) watts | .13 |
Sleep mode | .13 |
Ambient temperature | 5° to 55 °C (op.) –40° to 65 °C (nonop.) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
