FUJITSU Part #/MPN: MJA2160BH
DiscTech Item #: FUJ-MJA2160BH-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 160GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

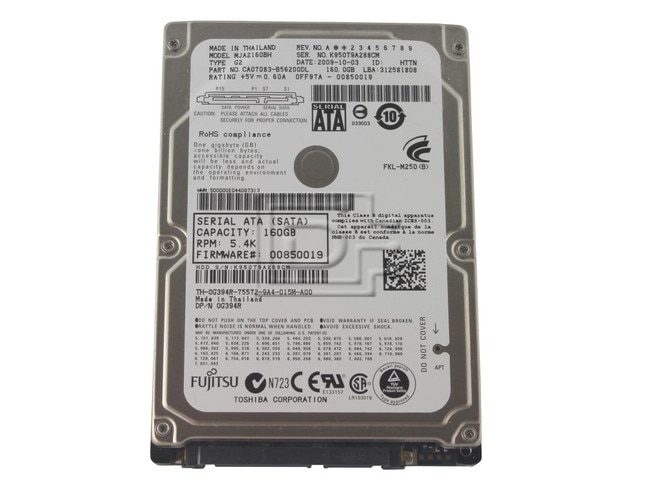

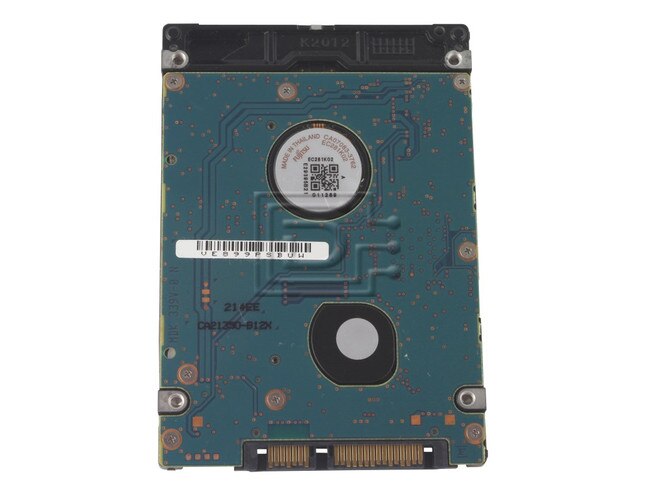

Fujitsu MJA2160BH 160GB 5.4K 2.5 inch SFF SATA Hard Drive - Refurbished OEM
Key Advantages:
- 5400 rpm drives deliver higher performance
- 160GB in 9.5 mm height
- Low power consumption lets NBs work
longer - Super-quiet Seek Technology
Applications:
- Notebooks and small form factor PCs
- External Storage
- And more digital applications
DPN: G394R 0G394R
Performance Specifications | ||
Rotational Speed | 5,400 RPM (nominal) | |
Buffer Size | 8 MB | |
Average Latency | 5.50 ms (nominal) | |
Seek Times | ||
Read Seek Time | 12.0 ms | |
Track-To-Track Seek Time | 2.0 ms (average) | |
Transfer Rates | ||
Buffer To Host (Serial ATA) | 3.0 Gb/s (Max) | |
Transfer Rate (Buffer To Disk) | 600 Mbits/s (Max) | |
Physical Specifications | ||
Capacity | 160 GB | |
Interface | SATA 3.0 Gb/s | |
Physical Dimensions | ||
English | ||
Height | 0.374 Inches ±0.008 inch | |
Length | 3.94 Inches ±0.010 inch | |
Width | 2.75 ±0.010 inch | |
Weight | 0.26 Pounds | |
Metric | ||
Height | 9.5 mm ±0.20 mm | |
Length | 100.2 ±0.25 mm | |
Width | 69.85 ±0.25 mm | |
Weight | 0.117 kg | |
Temperature (English) | ||
Operating | 32° F to 140° F | |
Non-operating | -40° F to 149° F | |
Temperature (Metric) | ||
Operating | 0° C to 60° C | |
Non-operating | -40° C to 65° C | |
Humidity | ||
Operating | 8-90% RH non-condensing | |
Non-operating | 5-95% RH non-condensing | |
Altitude (English) | ||
Operating | -1,000 feet to 10,000 feet | |
Non-operating | -1,000 feet to 40,000 feet | |
Altitude (Metric) | ||
Operating | -305M to 3,050M | |
Non-operating | -305M to 12,200M | |
Vibration | ||
Operating | ||
10-500 Hz, 1.0G (0 to peak) | ||
10-500 Hz (0.309 g² / Hz) | ||
Electrical Specifications | ||
Sleep | 20 mA | |
Power Dissipation | ||
Read/Write | 2.50 Watts | |
Idle | 0.85 Watts | |
Standby | 0.25 Watts | |
Sleep | 0.10 Watts |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: G394R 0G394R
