Hewlett Packard 516733-B21 517994-001 708069-001 HP ProCurve 6120XG Blade Switch

HEWLETT PACKARD Part #/MPN: 516733-B21

DiscTech Item #: HPI-516733-B21-RF-OE


$449.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$449.00

Interface Types: Ethernet RJ45, SFP

Electrical Interface: Ethernet 10Gigabit - 10Gbps

Bays/Ports/Slots: 1

Voltage: 12V

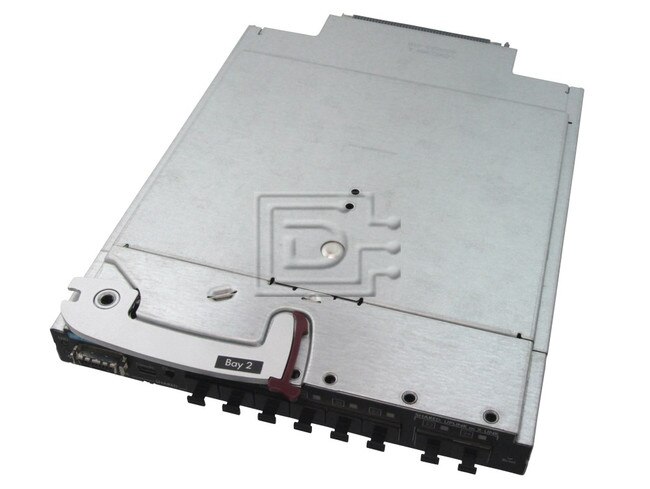

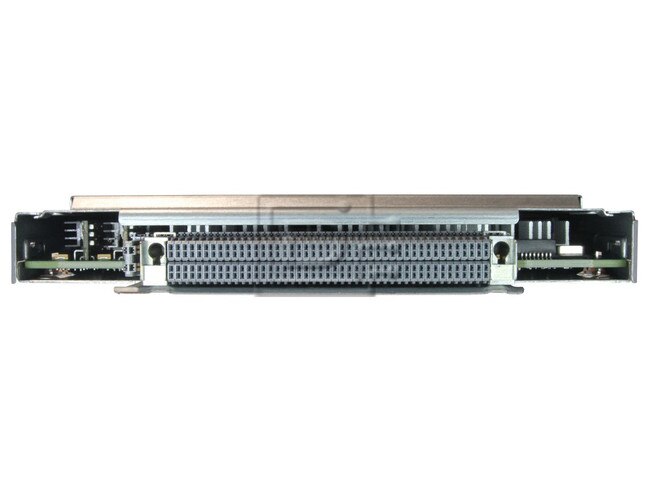

HP 516733-B21 708069-001 517994-001 ProCurve 6120XG Blade Switch 10GbE with 8 SFP expansion slots - Refurbished

The 6120XG is perfectly suited for datacenters migrating to next generation 10G high performance architectures. With support of dual speed on 10G uplinks and Converged Enhanced Ethernet (CEE) HW Capability, the 6120XG provides future proofing and investment protection. The 6120XG blade switch provides consistency and interoperability across existing network investments to help reduce the complexity of network management through resilient core-to-edge connectivity and automated provisioning technologies. With a variety of connection interfaces, the 6120XG switch offers excellent investment protection, flexibility, and scalability, as well as ease of deployment and reduced operational expense.

Specifications
Availability featuresLink Aggregation Protocol; Uni-Directional Link Detection; Multiple Spanning Tree; EEE 802.1s
Management featuresCLI; IPv6 Host; SNMP v1, v2, v3; HTTP, HTTPS; NTP sever support; RMON
Port Speed10 GbE
Port speed rating10 GbE
Product dimensions (W x D x H)10.63 x 13.88 x 4.75 in
Protocol supportedEthernet
Weight ( Imperial )4.4 lb
Weight ( Metric )2.0 kg
Extended Specifications
Interfaces/Ports
Number of Ports1
10Gigabit Ethernet PortYes
Interfaces/Ports 1 x 10GBase-CX4 Network Uplink
1 x USB Management
Media & Performance
Forwarding/Filtering Rate357.1 Mpps
Switching Throughput480 Gbps
I/O Expansions
Number of Expansion Slots8
Expansion Slots(7 Total) SFP+ Uplink
(1 Total) SFP+ Shared
Network & Communication
Layer Support2
Management & Protocols
ManageableYes
Management
  • ProCurve Manager
  • Web-based Management
  • SNMP v1, v2c, v3
  • Datacenter Connection Manager (DCM)
  • IEEE 802.1p QoS
  • IEEE 802.1q VLAN
  • Telnet
  • CLI
  • RMON v1, v2
  • DHCP
  • Syslog
Memory
Standard Memory512 MB
Flash Memory640 MB
Power Description
Input Voltage12 V DC
Power SourceAC Adapter
Physical Characteristics
Dimensions1.10" Height x 7.50" Width x 10.50" Depth
Weight (Approximate)2.80 lb

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 6120XG 517994-001 708069-001

Weight: 7.5 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
