Hitachi Part #/MPN: 08K2166
DiscTech Item #: HIT-08K2166-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:50Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.9 / 5.4
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 4MB

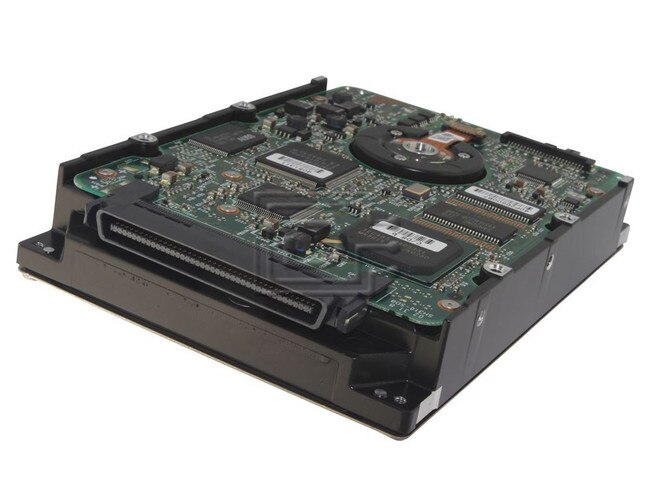

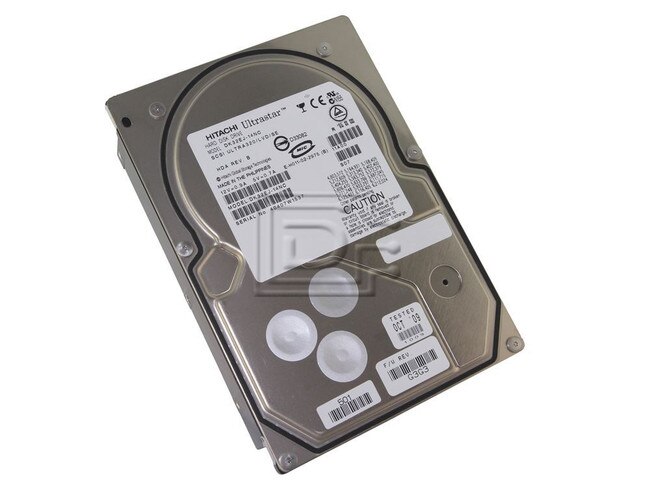

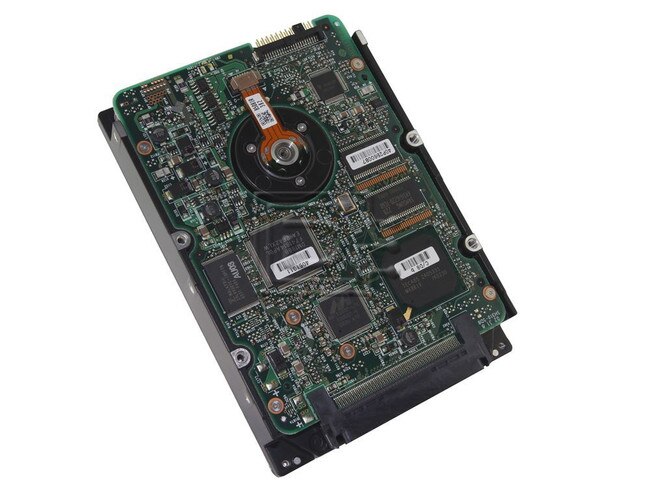

Hitachi Ultrastar 08K2166 / DK32EJ-14NC 147GB 10K U320 80pin SCSI Hard Drive - Factory Recertified
The DK32EJ series uses high performance sputtered disks, GMR heads, and a rotary type voice coil motor to drive the heads. These features provide high capacity, high speed positioning and high reliability.
Alternate Part Number: DK32EJ-14NC
Compatibility:
This drive is compatible with any computer / server that accepts 80 pin SCSI hard drives.
| Specifications | |
|---|---|
| Model number | 08K2166 / DK32EJ-14NC |
| Model Name | DK32EJ |
| Formatted Capacity | 146 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 4 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 320 MBytes/sec |
| Average Seek Time | 4.9 / 5.4 |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.700 kg |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: DK32EJ-14NC
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
