Hitachi Part #/MPN: 0F11000
DiscTech Item #: HIT-0F11000-NP-5Y
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 134
Average Seek Time: 8.5
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 32MB

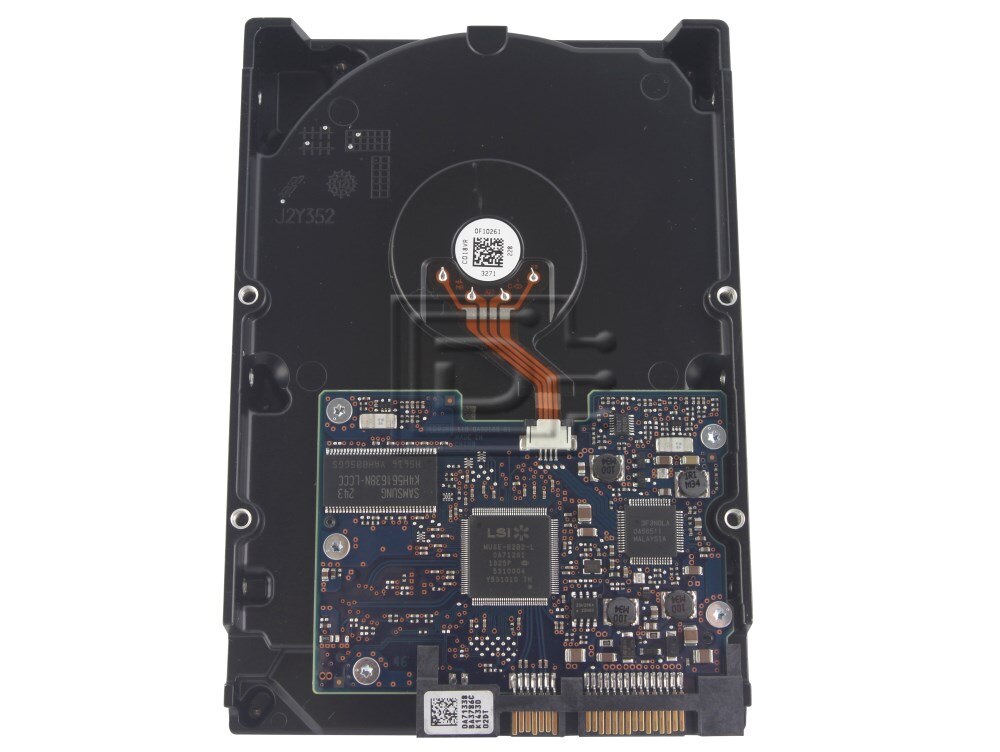

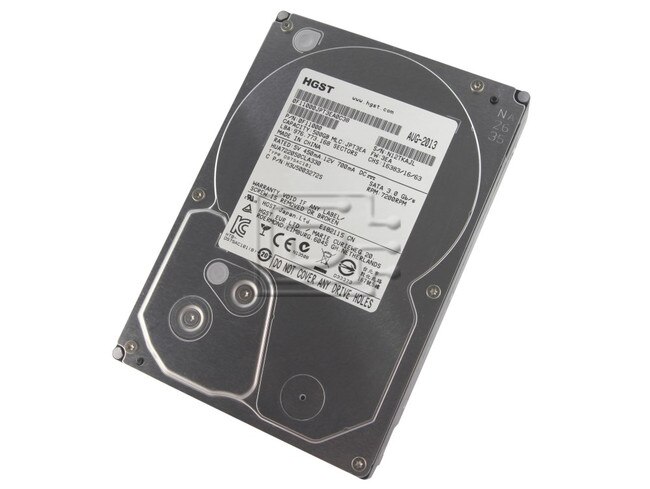

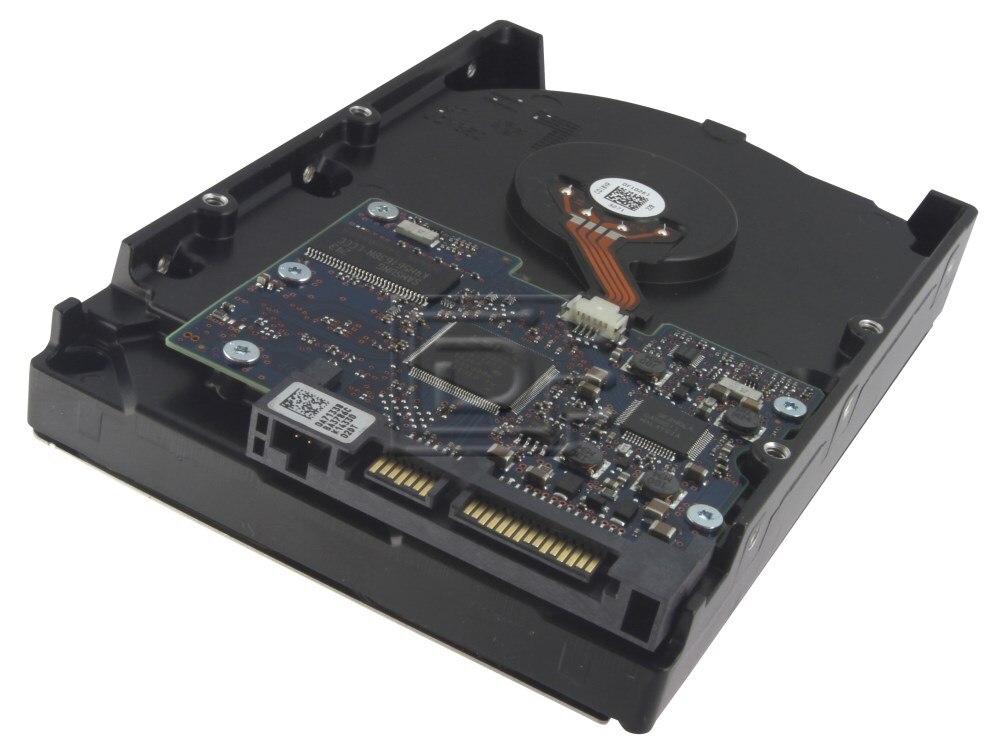

Hitachi Ultrastar A7K2000 0F11000 / HUA722050CLA330 500GB 3Gbps 7.2K SATA Hard Drive - New Pull
Hitachi Ultrastar A7K2000 0F11000 500GB 3.0Gbps 7,200 RPM Serial ATA Hard Drive - New Pull
Alt MPN: HUA722050CLA330
Ultrastar® A7K2000
3.5-Inch Enterprise 7200 RPM Hard Disk Drives
Combining 7200 RPM Performance And Granular Power Control
Operating at 7200 RPM,the HGST Ultrastar® A7K2000 offers better overall performance than slower-RPM, capacity-oriented drives at impressively low power-consumption rates. When compared to the previous generation Ultrastar A7K1000,the A7K2000 offers up to a 155% improvement in sustained data transfer rate. With five Advanced Power Management modes, a 36% reduction in watts during low-RPM idle mode, and using less than 1W during standby/sleep mode,the Ultrastar A7K2000 can help data centers achieve lower AC power and HVAC requirements,freeing up precious headroom for growing enterprise needs.
Delivering Industry-Leading Reliability
With a robust fourth-generation mechanical design, Ultrastar A7K2000 is specifically built and tested for the enterprise. The Ultrastar SATA drive family features HGST-patented Rotational Vibration Safeguard (RVS) sensor technology, which optimizes drive reliability in multi-drive RAID arrays and rack-mounted systems. Backed by a five-year warranty,the Ultrastar platform has earned HGST a reputation among server and storage vendors as a global partner dedicated to delivering the highest quality and reliability in the industry.
Innovation for a more sustainable environment
The Ultrastar A7K2000 demonstrates HGST ecological leadership with its halogen-free design and power-efficient operation. Both these features serve to qualify the drive for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Highlights
- Up to 1 terabyte of capacity
- Enhanced Rotational Vibration Safeguard (RVS) for robust performance in multi-drive environments
- 24x7 enterprise-class duty cycle
- Targeted 1.2 million hours MTBF
- 3Gb/s & 6Gb/s SATA for configuration flexibility
Applications/Environments
- Cloud storage
- Massive Scale Out (MSO)
- Data warehousing & mining
- Disk-to-disk backup & archiving
- RAID arrays
- Network Attached Storage (NAS)
Compatibility:
This drive is compatible with any server that accepts 3.5"x1" (LFF) SATA drives.
| Specifications | |
|---|---|
| Model Number | HUA722050CLA330 |
| Part Number | 0F11000 |
| Configuration | |
| Interface | SATA 3Gb/s |
| Capacity (GB) at 512 bytes/sector | 500GB |
| Sector size (bytes) | 512 |
| Max. areal density (Gbits/sq. in) | 352 |
| Performance | |
| Data buffer (MB) | 32 |
| Rotational speed (RPM) | 7200 |
| Interface transfer rate (MB/s, max) | 300 |
| Sustained transfer rate (MB/s, typical) | 134 |
| Seek time (read, ms, typical) | 8.5 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 1015 |
| Load/unload cycles (at 40° C) | 300,000 |
| Availability (hrs/day x days/wk) | 24x7 |
| MTBF (M hours) | 1,200,000 |
| Acoustics | |
| Idle (Bels, typical) | 2.4 |
| Power | |
| Requirement | +5 VDC (+/-5%) +12 VDC (+10%/-8%) |
| Startup current (A, max.) | 2.0 (+12V), 1.2 (+5V) |
| Read/write (W) | 8.4 |
| Unload idle (W) | 3.9 |
| Power consump. efficiency index (W/GB) | 0.0078 |
| Physical size | |
| z-height (mm) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
| Weight (g, max) | 680 |
| Environmental (operating) | |
| Ambient temperature | 5o to 60o C |
| Shock (half-sine wave, G) | 70 |
| Vibration (G RMS, 5 to 500 Hz) | 0.67 (XYZ) |
| Environmental (non-operating) | |
| Ambient temperature | 40o to 70o C |
| Shock (half-sine wave, 1ms, G) | 350 |
| Vibration (G RMS, 5 to 500 Hz) | 1.04 (XYZ) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUA722050CLA330
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
