Hitachi Part #/MPN: 0F19455
DiscTech Item #: HIT-0F19455-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 3TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

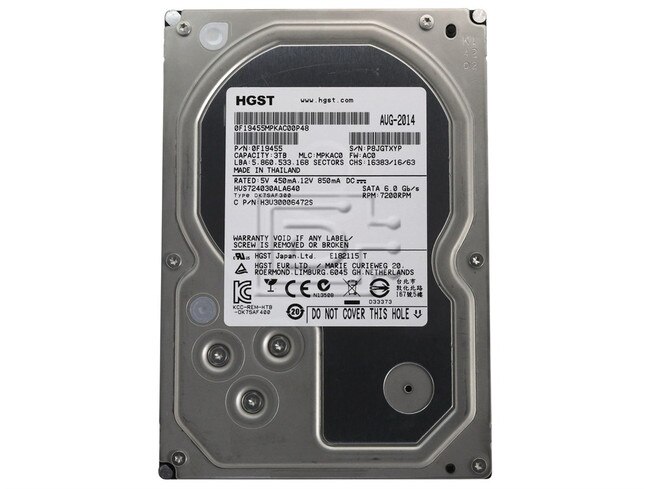

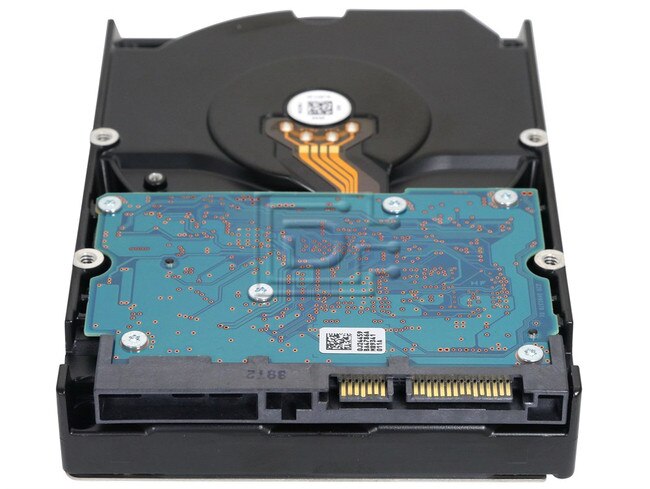

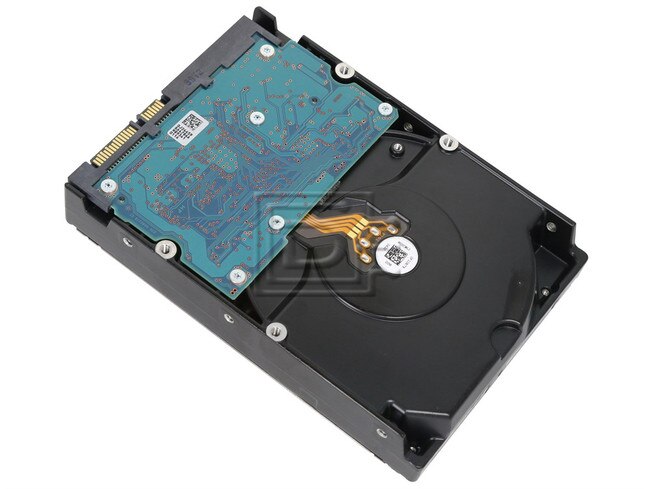

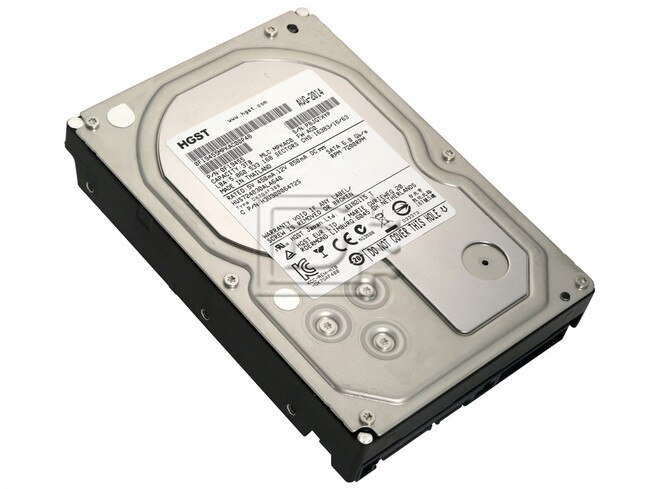

Hitachi Ultrastar 7K4000 0F19455 / HUS724030ALA640 3TB 3.5" 6Gbps 7.2K RPM Enterprise SATA HDD - Refurbished
Hitachi Ultrastar 7K4000 0F19455 / HUS724030ALA640 3TB 3.5" 6Gbps 7.2K RPM Enterprise SATA HDD - Refurbished
Highest capacity and reliability with a proven design
The Deskstar™ 7K3000 is Hitachi’s first hard drive to deliver an enormous three terabytes of storage capacity and 7200 RPM performance in a standard 3.5-inch form factor. The 7K3000 is also the first Hitachi hard drive with a 6Gb/s SATA interface, which along with its 64MB cache buffer delivers a big boost to performance over the previous generation product. The Deskstar 7K3000 is designed to allow manufacturers to leverage the benefits of the latest components and operating systems to deliver high-performance, high-capacity, power-efficient systems. Manufacturers planning to use the highest capacity 3TB drive in systems should consult the Hitachi High Capacity Technology Brief. Deskstar 7K3000 is also available in 2TB and 1.5TB models that accommodate existing systems, as well as new designs. .
Hitachi p/n: HUS723030ALS640
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.
Ultrastar™ 7K4000 | |
---|---|
Model Number | 0F19455 |
Alt Model Number | HUS724030ALA640 |
Configuration | |
Interface | SATA 6Gb/s |
Capacity | 3TB / 3000GB |
Sector size (bytes) | 512 |
Max. areal density (Gbits/sq. in) | 411 |
Performance | |
Data buffer (MB) | 64 |
Rotational speed (RPM) | 7200 |
Media transfer rate (Mbits/s, max) | 1656 |
Interface transfer rate (MB/s, max) | 600 |
Reliability | |
Error rate (non-recoverable, bits read) | 1 in 10^14 |
Load/unload cycles (at 40˚ C) | 600,000 |
Availability (hrs/day x days/wk) | 24x7 |
Acoustics | |
Idle (Bels, typical) | 2.9 |
Power | |
Requirement | +5 VDC (+/-5%) +12 VDC (+10%/-8%) |
Startup current (A, max.) | 1.2 (+5V) 2.0 (+12V) |
Idle (W) | 6.8 |
Physical size | |
z-height (mm) | 26.1 |
Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
Weight (typical, g, max.) | 690 |
Environmental (non-operating) | |
Ambient temperature | 5o to 60o C |
Relative humidity (non-condensing) | 70 |
Shock (half-sine wave, G (2ms)) | |
Vibration, random (G RMS 5 to 500 Hz) | 0.67 (XYZ) |
Environmental (non-operating) | |
Ambient temperature | -40o to 70o C |
Relative humidity (non-condensing) | 5% to 95% |
Shock (half-sine wave, G) | 300 (1ms) |
Vibration, random (G RMS 2 to 200 Hz) | 1.04 (XYZ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUS724030ALA640
