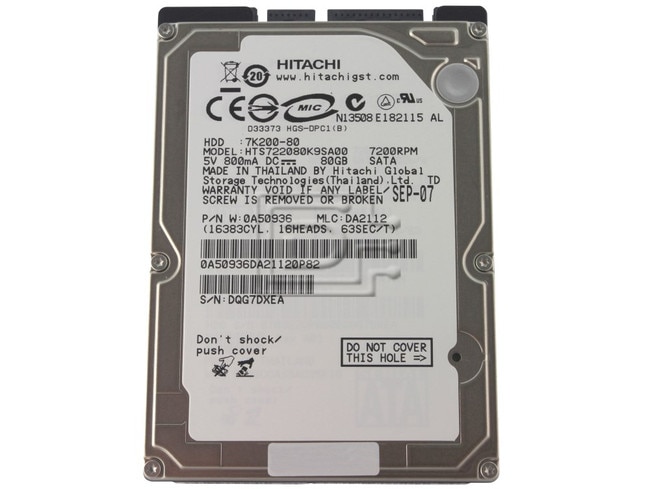

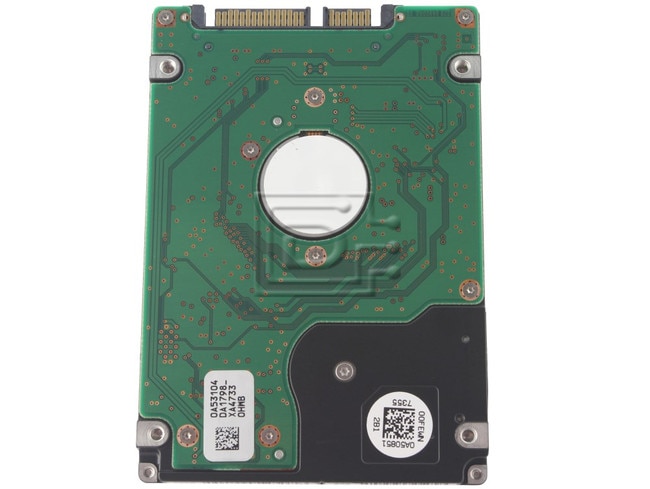

Hitachi 7K200 80GB 7.2K 2.5" SATA Hard Disk Drive 0A50936

(0) No Reviews Yet

Hitachi Part #/MPN: 0A50936

DiscTech Item #: HIT-0A50936-FR-OE


Capacity: 80GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Average Seek Time: 10

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 16MB

Model number 0A50936 / HTS722080K9SA00
Model Name 7K200
Form Factor(width) 2.5-inch
Form Factor(height) 9.5 mm
Height 9.5 mm
Width 70 mm
Length 100 mm
Weight 110 g
Formatted Capacity 80 Gbytes
Internal Transfer Rate (max) 695 Mbits/sec
External (I/O) Transfer Rate (max) 150 MBytes/sec
Average Seek Time, Read 10 msec typical
Average Latency 4.2 msec
Default Buffer (cache) Size 16 Mbytes
Number of Discs (physical) 2
Number of Heads (physical) 1
Startup Current (5VDC +/- 5%) 5.5 watts
Sleep (5VDC +/- 5%) .2 watts
Max Operating Shock (2-msec) 350 Gs
Max Nonoperating Shock (1-msec) 1000 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 65 deg C
Nonoperating Temperature (min) -40 deg C
Acoustics, Idle (sound power, typ) 2.6 bels

Click here to view the manufacturer's item description/brochure

Alternate MPNs: HTS722080K9SA00

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
