Hitachi Part #/MPN: DF800-RKHE2
DiscTech Item #: HIT-DF800-RKHE2-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 6TB
Interface Types: SAS Serial Attached SCSI, SATA, SCSI 80pin SCA-2 Hot-Swap, Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Electrical Interface: FC-AL - 8Gbps
On-Board Cache: 32GB
Bays/Ports/Slots: 8
Wattage/VA: 440W

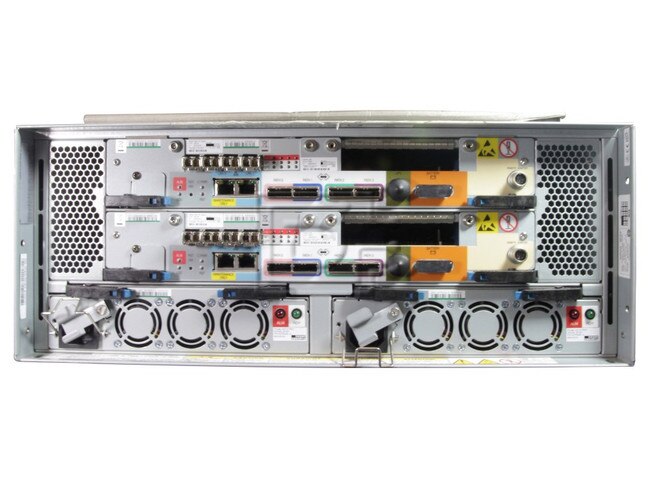

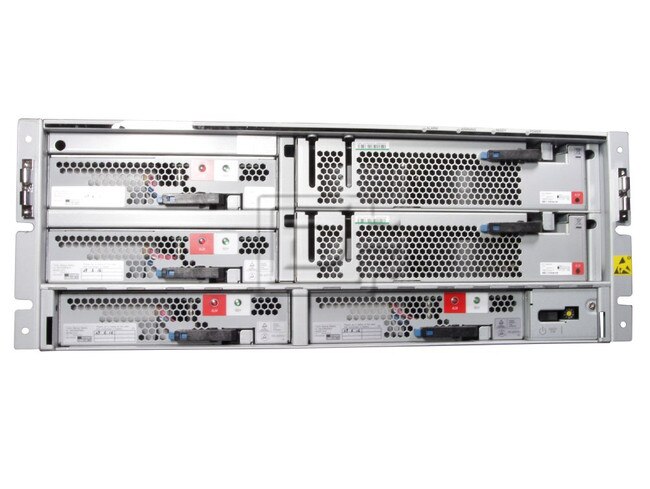

Hitachi DF800-RKHE2 AMS Adaptable Modular Storage 2500 Base Unit - Refurbished
Hitachi Adaptable Modular Storage 2500 |
|---|
|
| No. | Item | Unit | A13-08-74 | |
|---|---|---|---|---|
| 1 | Model name | - | Hitachi Adaptable Modular Storage 2500 | |
| 2 | External dimension [width X depth X height] | Width | [mm] | 483 |
| Depth | [mm] | 650 | ||
| Height | [mm] | 174 | ||
| 3 | Product mass | [kg] | 45.44 | |
| 4 | Energy consumption efficiency | [W/GB] | 0.035 | |
| 5 | Power consumption | normal state | [W] | 440 |
| power-on | [W] | 440 | ||
| 6 | major material component ratio | Iron and iron alloy (inc. stainless-steel) | [%] | 69% |
| Aluminum and its alloys | [%] | 4% | ||
| Other metals | [%] | 0% | ||
| Plastics | [%] | 3% | ||
| HDD | [%] | 0% | ||
| Others | [%] | 24% | ||
| 7 | battery | kind | - | nickel metal hydride rechargeable battery |
| quantity | [kg] | 0.9 | ||
| 8 | recyclable ratio | [%] | 74 | |
| 9 | External dimensions of packaging materials | Width | [mm] | 580 |
| Height | [mm] | 380 | ||
| Depth | [mm] | 750 | ||
| 10 | major packing materials | Corrugated board | [%] | 33% |
| Wood | [%] | 54% | ||
| Foamed polystyrene | [%] | EE/td> | ||
| Other plastics | [%] | 8% | ||
| Others | [%] | 4% | ||
| 11 | Consumption of lead solder(Pb) | [g] | 0.00 | |
| 12 | noise when used | [dB] | 57 | |
| 13 | Market release timing | YM | 2008/10 | |
| 14 | Special notes | - | - | |
Factor X |
|---|
| Product | Factor Calculation Results (compared with reference model) | |
|---|---|---|
| Global warming prevention | Resource | |
| Hitachi Adaptable Modular Storage 2500 | 20.6 | 11 |
| Item/Product | Unit | Reference | Assessment | |
|---|---|---|---|---|
| Manufacturing year | - | 2003 | 2008 | |
| Model name | - | Thunder 9585V | Hitachi Adaptable Modular Storage 2500 | |
| Product life (Specified operating time) | (years) | 8 | 8 | |
| Product function | Maximum disk capacity | [GB] | 1814 | 6152 |
| Maximum host interface speed | [Gbps] | 2 | 4 | |
| Maximum physical host ports | [ports] | 4 | 8 | |
| Greenhouse gas emissions | (% for Base) | 100 | 65.8 | |
| Efficiency of global warming prevention | - | 1160.96 | 23930.259 | |
| Resource value coefficient | - | 1 | 1 | |
| The amount of newly used resource | (% for New resources used of Base) | 100 | 111.6 | |
| The amount of disposed resource | (% for New resources used of Base) | 32 | 50.9 | |
| Resource efficiency | - | 879 | 9690 | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 80 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
