Hitachi Part #/MPN: DK32EJ-36FC
DiscTech Item #: HIT-DK32EJ-36FC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:37Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 36GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 33.8 - 66.7
Average Seek Time: 4.9 / 5.4
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 4MB

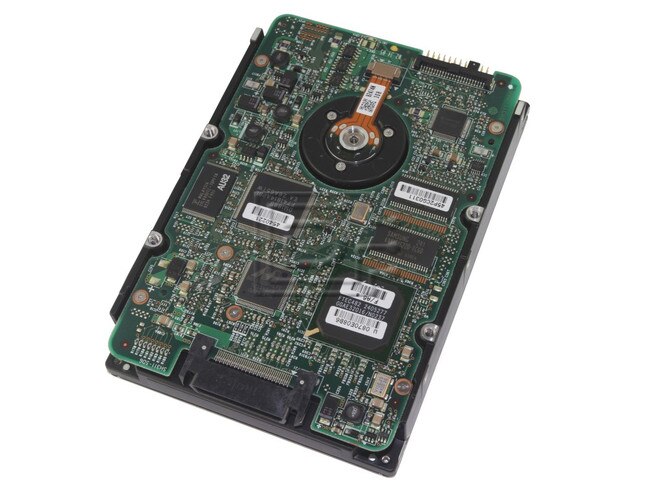

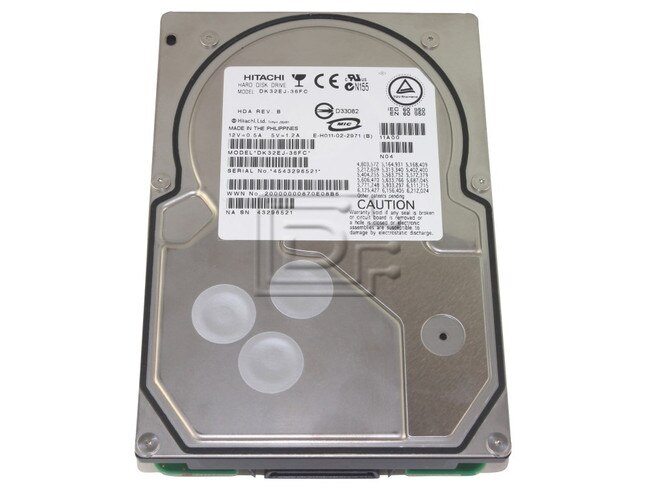

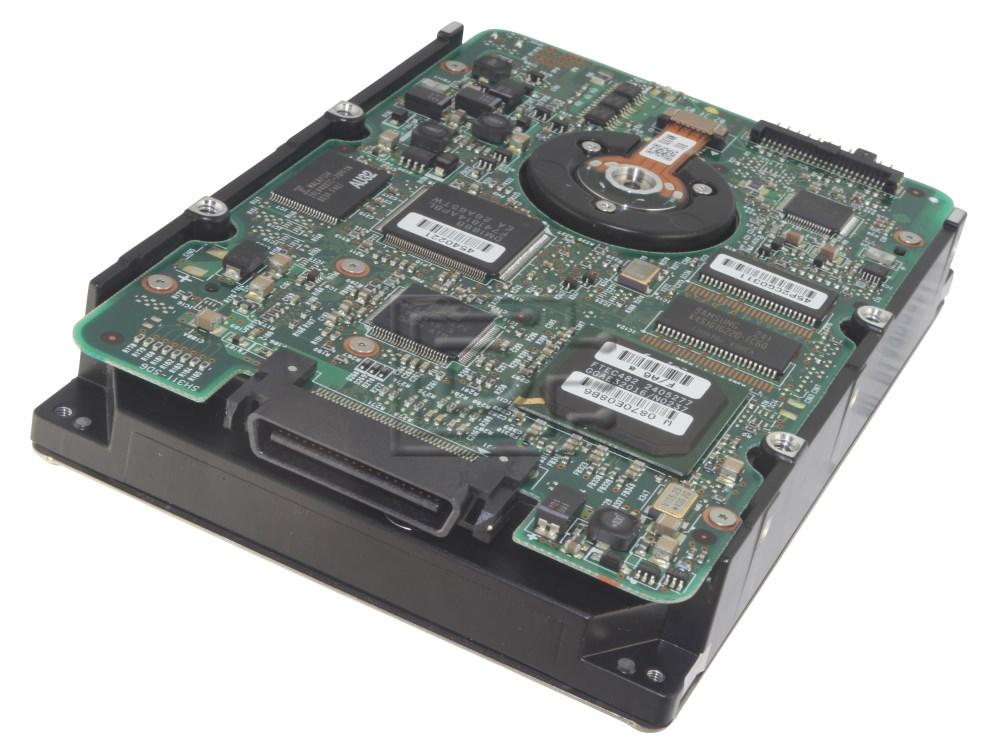

Hitachi DK32EJ-36FC 36GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive - Refurbished
The DK32EJ series uses high performance sputtered disks, GMR heads, and a rotary type voice coil motor to drive the heads. These features provide high capacity, high speed positioning and high reliability.
The DK32EJ-FC uses a SCSI interface as the upper level layer though the physical host interface is changed to Fibre Channel. Therefore, the host can access the FC disk drive with almost same manner as the SCSI disk drive. Some functions dependent on physical interface is different from that of SCSI disk drives.
Compatibility:
This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays.
Specifications | |
---|---|
Model number | DK32EJ-36FC |
Model Name | 146Z10 |
Formatted Capacity | 36 Gbytes |
Rotational Speed | 10,000 rpm |
Default Buffer (cache) Size | 4 Mbytes |
Number of Discs (physical) | 2 |
Performance | |
Internal Transfer Rate (max) | 458 - 799 Mbits/sec |
External (I/O) Transfer Rate (max) | 200 MBytes/sec |
Average Latency | 2.99 msec |
Physical | |
Form Factor(width) | 3.5-inch |
Form Factor(height) | 1-inch |
Height | 25.4 mm |
Width | 101.6 mm |
Length | 146.0 mm |
Weight | 780 g |
Environmental | |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Reliability | |
Recoverable error | 10 per 10^12 bits read |
Non-recoverable Read Errors | 1 per 10^14 bits read |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
