Hitachi Part #/MPN: 0J12281
DiscTech Item #: HIT-0J12281-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

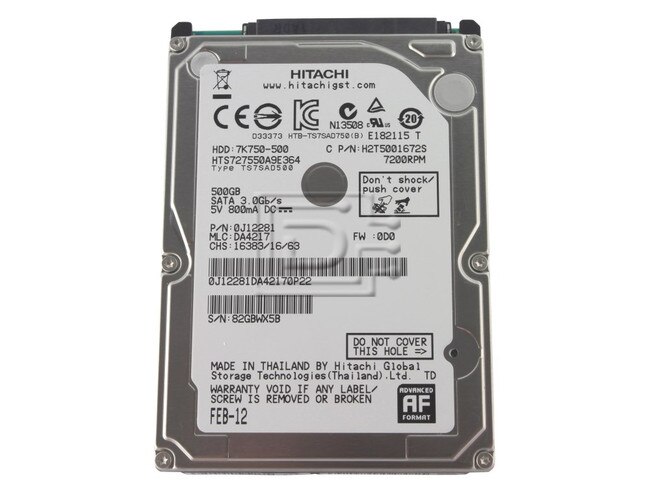

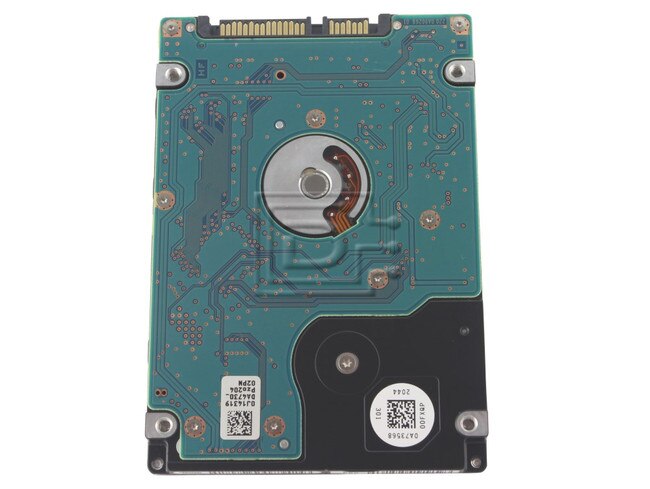

Hitachi Travelstar 7K750 HTS727550A9E364 / 0J12281 500GB 7.2K 2.5 inch Laptop SATA Hard Drive - New Pull
High-Capacity Storage Paves the Way for New Mobile Platforms
Travelstar™ 7K750 is a 7200RPM, 375GB/platter, 2.5-inch hard drive with capacities of 500GB, 640GB and 750GB. This standard 9.5mm, two-disk design,intended for use in notebook PCs, external storage and other mobile applications,uses the industry’s new Advanced Format. Advanced Format increases the physical sector size on hard drives from 512 bytes to 4096 (4K) bytes,which increases drive capacities and improves error correction capabilities. The Travelstar 7K750 allows manufacturers to deliver high-capacity,power-efficient systems.Manufacturers can consult the HGST Advanced Format Technology Brief for more information on using these hard drives.The 7K750 continues HGST’s tradition of ecological leadership and carries its EcoTrac classification. Travelstar 7K750 delivers speed and capacity, without sacrificing battery life or audio quality,to meet the multi-tasking demands of commercial and consumer users on the go.
Encryption Option
Travelstar 7K750is the fifth generation self-encrypting drive (SED)to feature HGST’s Bulk Data Encryption.The SED encrypts data using protected keys in real time,providing users the highest level of data protection available. It also speeds and simplifies drive re-purposing. By deleting the encryption key,the data on the drive is rendered unreadable, thereby eliminating the need for time-consuming data-overwrite. For information about the SED models designed to meet the Trusted Computing Group (TCG) Opal Storage Security specification,please contact your HGST representative.
Enhanced Availability (EA)—for 24x7 Access to Data
HGST provides enhanced availability models that allow the Travelstar 7K750 to deliver 24x7 access to data for data-intensive applications requiring round-the-clock operation.The 7K750 provides high capacity,durability and low power utilization on a proven platform for quality and reliability. EA models support the stringent demands of“always-on”applications in lower-transaction environments.
Alt PN# HTS727550A9E364 / H2T5001672S
Model(s) | Standard Models HTS727575A9E364 HTS727564A9E364 HTS727550A9E364 | BDE Option Models HTS727575A9E361 HTS727564A9E361 HTS727550A9E361 | EA Models HTE727575A9E364 HTE727564A9E364 HTE727550A9E364 |
Interface | SATA 3Gb/s | ||
Capacity (GB) | 750/640/500 | ||
Sector size (variable, Bytes/sector) | 512e | ||
Recording zones | 24 | ||
Max areal density (Gbits/sq. in.) | 502 | ||
Performance | |||
---|---|---|---|
Data buffer (MB) | 16 | ||
Rotational Speed (RPM) | 7200 | ||
Latency Average (ms) | 4.2 | ||
Media transfer rate (Mbits/sec, max) | 1276 | ||
Interface transfer rate (MB/sec, max) | 300 | ||
Seek time: Average (typical)ms(read) | 12 | ||
Seek time: Track to track (typical)ms(read) | 1 | ||
Seek time: Full Stroke (typical)ms(read) | 20 | ||
Reliability | |||
Load/Unload Cycles | 600,000 | ||
Power on hours (POH) per month | N/A | 730 | |
Availability (hrs/day x days/wk) | N/A | 24x7 | |
Acoustics | |||
Idle (Bels) | 2.5 | ||
Seek (Bels, typical) | 2.7 | ||
Power | |||
Requirement | +5 VDC (+ -5%) | ||
Requirement: Start-up (W, peak, max) | 5.5 | ||
Requirement: Read/Write (W, avg) | 1.8 | ||
Requirement: Low power idle (W, avg) | 0.69 | N/A | |
Requirement: Standby (W, avg) | 0.2 | ||
Dissipation: Seek (W, Avg) | 2.0 | ||
Dissipation: Active Idle (W, Avg) | 1.0 | N/A | |
Performance Idle | 1.7 | ||
Sleep (W) | 0.1 | ||
Physical size | |||
Z-height (mm) | 9.5 | ||
Dimensions (width x depth, mm) | 70 x 100 | ||
Weight (g, max) | 115 | ||
Environmental (operating) | |||
Ambient temperature | 0 to 60ºC | ||
Shock (half-sine wave) | 400G/2ms, 225G/1ms | ||
Environmental (non-operating) | |||
Ambient temperature | -40 to 65ºC | ||
Shock (half-sine wave) | 1000G/1ms |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HTS727550A9E364 H2T5001672S
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
