Hitachi Part #/MPN: 0A35772
DiscTech Item #: HIT-0A35772-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 42 - 85
Average Seek Time: 8.2
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 32MB

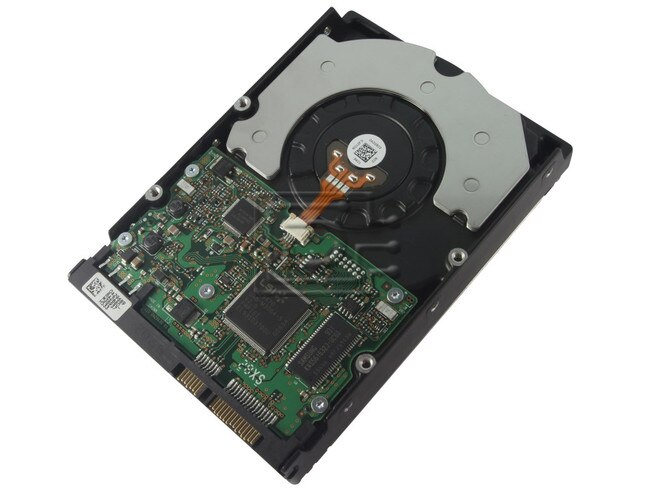

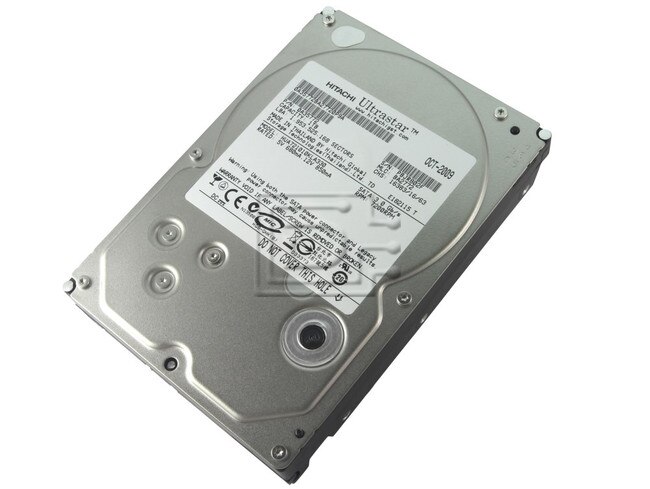

Hitachi Ultrastar 0A35772 / HUA721010KLA330 1000GB / 1TB 7.2K Enterprise SATA Hard Drive - New Pull
The Ultrastar A7K1000 delivers up to 1TB of storage capacity in a standard 3.5-inch form factor, filling a vital need for high-density storage in the enterprise. With a unique 5-platter design, Hitachi has relaxed the bit densities to achieve higher reliability. The Ultrastar A7K1000 is built using the industry’s most reliable perpendicular magnetic recording (PMR) recording heads and media. The Ultrastar A7K1000 features a 3 GB/s SATA interface supporting key features in the Serial-ATA specification including Native Command Queuing (NCQ), staggered spin-up and hot-swap capability.
Alternate P/N's: 0A36073 / HUA721010KLA330
Capacity: 1000GB / 1TB / 1 TB
Compatibility:
This drive is compatible with any system that uses SATA hard drives.
Drive specification | 0A35772 / HUA721010KLA330 |
Formatted Gbytes (512 bytes/sector) | 1000 |
Bytes per sector | 512 |
Read/write heads | 10 |
Data Disks | 5 |
Areal density (Gbits/inch2 avg) | 148 |
Spindle speed (RPM) | 7,200 |
Internal data transfer rate (Mbits/sec max) | 1070 |
I/O data transfer rate (Mbytes/sec max) | 300 |
Cache buffer | 32 Mbytes |
Height (max) | 26.11 mm (1.028 inches) |
Width (max) | 101.85 mm (4.010 inches) |
Length (max) | 146.99 mm (5.787 inches) |
Weight (max) grams | 700 |
Average seek, read (msec typical) | 8.2 |
Startup current (typical) 12V (peak) | 2.0 amps |
Idle mode (typical) watts | 9.0 |
Ambient temperature | 5° to 60°C (op.) –40° to 70°C (nonop.) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUA721010KLA330
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
