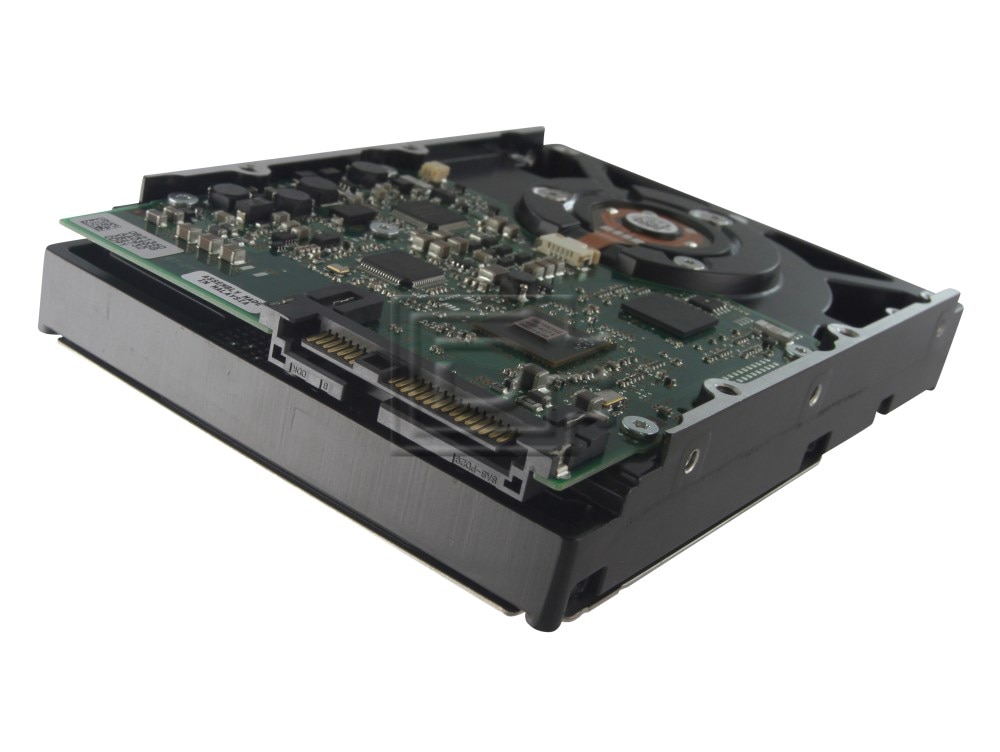

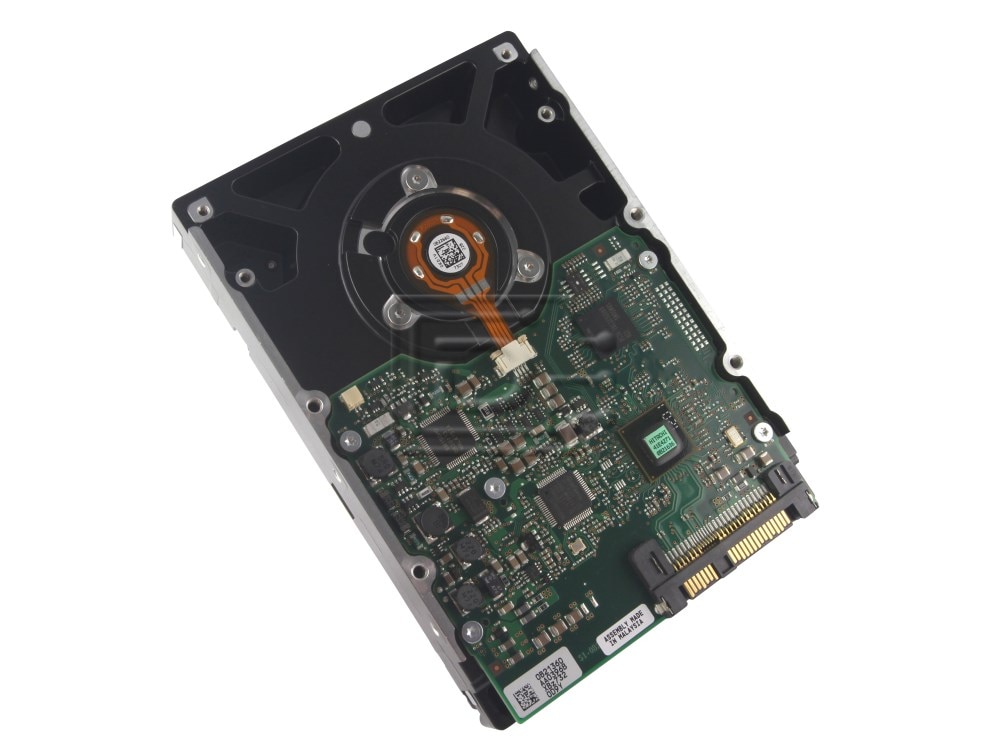

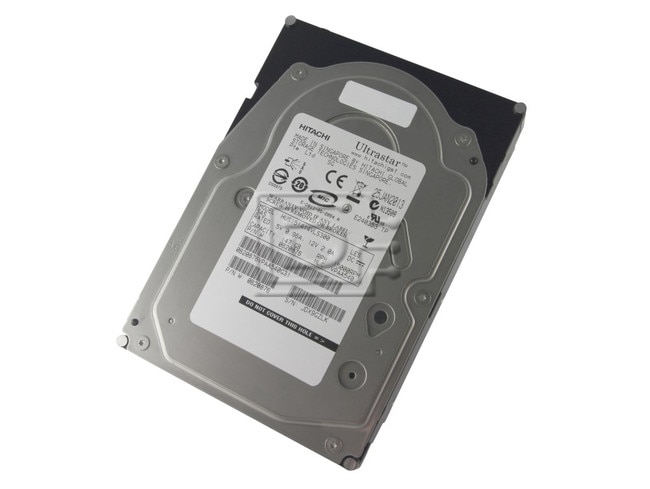

Hitachi Ultrastar 0B20876 / HUS151414VLS300 147GB SAS Hard Drive

Hitachi Part #/MPN: 0B20876

DiscTech Item #: HIT-0B20876-FR-OE


$145.00
$145.00

Enterprise Grade

Capacity: 146GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 93.3

Average Seek Time: 3.7

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 16MB

Hitachi Ultrastar 0B20876 / HUS151414VLS300 147GB 15K RPM 3Gbps Serial SCSI / SAS Hard Drive - Factory Refurbished

Hitachi Ultrastar 0B20876 / HUS151414VLS300 147GB 15000 RPM 3Gbps Serial SCSI / SAS Hard Drive - Factory Refurbished

Built upon proven technology

Hitachi’s next-generation 3.5-inch 15,000 RPM hard drive delivers the performance and reliability required for mission-critical enterprise computing environments. Leveraging the proven system architecture and electronics of the previous generation, the Ultrastar™ 15K300 provides up to 300GB capacity, 16MB cache and Ultra320 SCSI, 3Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel interfaces. These features make the Ultrastar 15K300 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and other multi-userapplications. The mature design of the Ultrastar 15K300 helps to ensure shorter qualification times.

Demonstrated reliability

Key reliablility features have been built into the Ultrastar 15K300. Key reliablility features have been built into the Ultrastar 15K300. Hitachi’s Thermal Fly-height Control (TFC) capability maintains a consistent fl y-height during the read/write process ensuring a better soft error rate and end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.


Compatibility:

The Hitachi 0B20876 / HUS151414VLS300 is compatible with any server that accepts 3.5" LFF SAS Hard Drives.

Specifications
Model0B20876 / HUS151414VLS300
Interface3Gb/s SAS
Capacity (GB) 146
Sector size (variable, Bytes/sector) 512-528 (variable, 2 byte inc.)
Recording zones 24
Data heads (physical) 10
Data disks5
Max. areal density (Gbits/sq. in.) 61.7
Performance
Data buffer (MB)16
Rotational speed (RPM) 15,000
Latency average (ms) 2
Media transfer rate (Mbits/sec, max) 1129
Interface transfer rate (MB/sec, max) 300
Sustained data rate (MB/sec.max) 93.3
Seek time (read, typical) Average (ms) 3.7
Track to track (ms) 0.6
Full stroke (ms) 6.7
Reliability
Error rate (non-recoverable) 10 in 10E16
Start/stops (at 40° C) 50,000
Availability (hrs/day x days/wk) 24x7
Acoustics
Idle (Typical (Bels))3.5
Operating (Typical (Bels)) 4.6
Power
Requirement+5VDC (+-5%), +12 VDC (+-5%)
Dissipation Startup current (max. peak DC)0.70A (5V), 1.70A (12V)
Idle (W) 11.22
Power consump. efficiency index (W/GB) 0.08
Physical Size
Height (mm, max) 26.1
Width (mm) 101.6 +-0.25
Depth (mm) 146.0 +- 0.6
Weight (kg, max) 0.758
Environmental characteristics
Operating
- Ambient temperature5° to 55° C
- Shock (half sine wave) 15G (11ms)
- Random Vibration, no data loss 1.2G, all axes
Non-operating
- Ambient temperature (shipping)
- Shock (half sine wave) 250G (2ms) / 80G (11ms)
- Random Vibration (RMS) 1.04G, all axes
RoHS compliantYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: HUS151414VLS300

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
