Hitachi Part #/MPN: 0B20915
DiscTech Item #: HIT-0B20915-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 93.3
Average Seek Time: 3.7
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

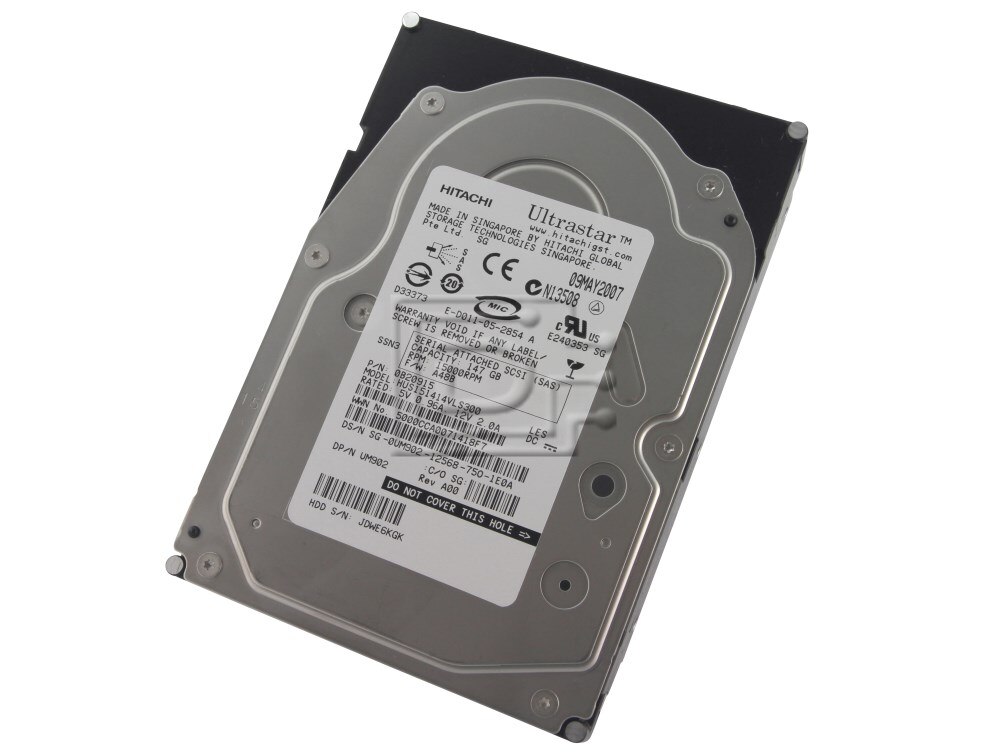

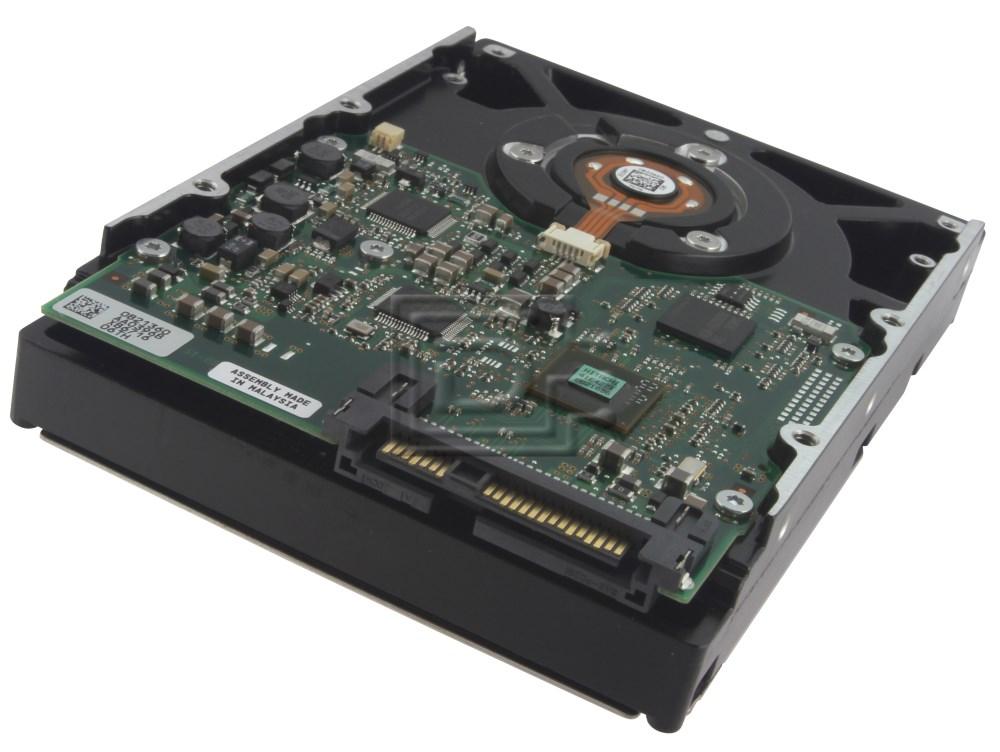

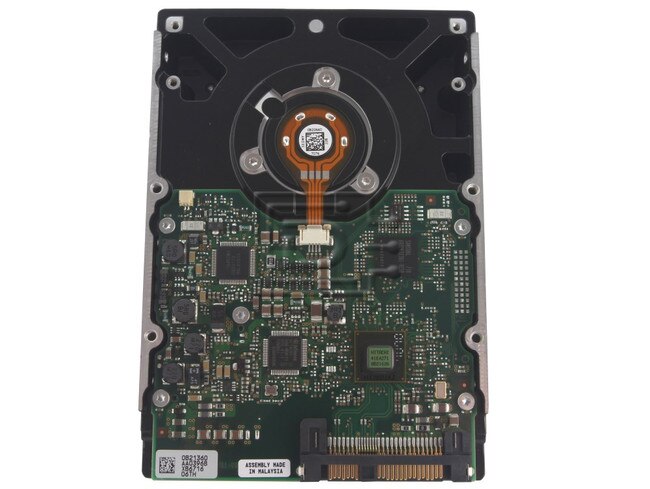

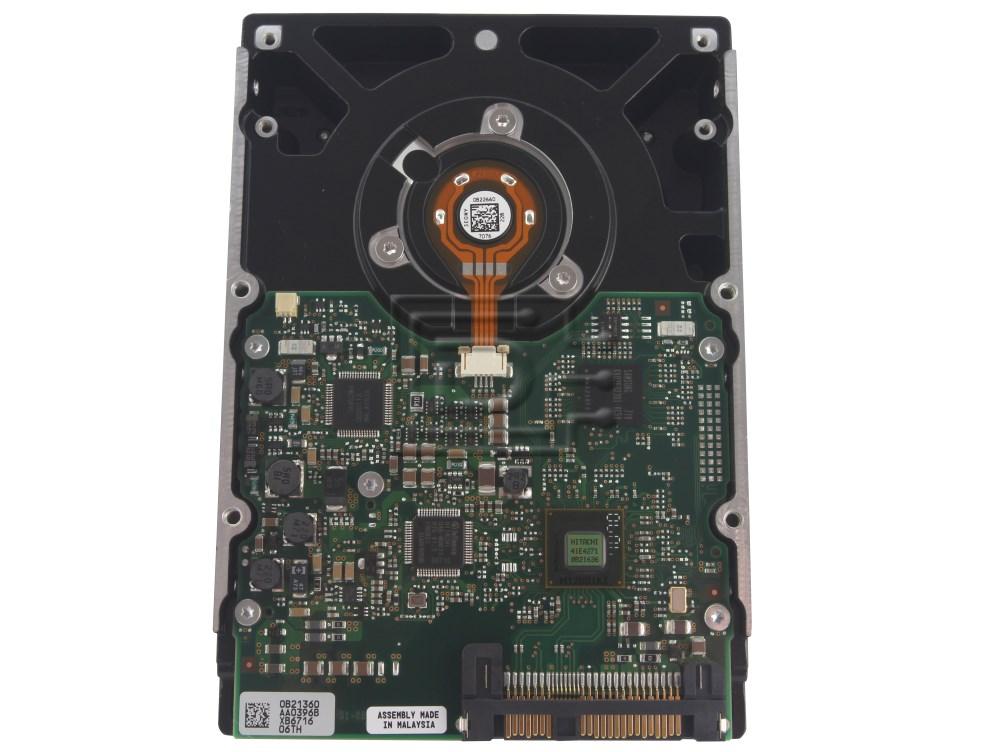

Hitachi Ultrastar 15K147 0B20915 / HUS151414VLS300 147GB 15K RPM 3.0Gbps Serial SCSI / SAS Hard Drive - Refurbished OEM
The Hitachi Ultrastar 15K147 is the 3rd generation of 15,000 RPM enterpriseclass hard drives from Hitachi. Leveraging award-winning technologies that have generated proven quality and high-performance, the Ultrastar 15147 incorporates Fluid Dynamic Bearing motors (FDB) to contribute to increased capacity by enabling high-track density through a more precise position of the head. AFC Media, also known as "pixie dust", is an industry-first in 15,000 RPM enterpriseclass hard drives, enabling higher areal densities by improving thermal stability, which in turn, maintains data integrity.
Designed for both high-performance and high-reliablity, the Ultrastar 15K147 was developed with powerful processors and read-write channels, advanced servo coupled technology, (AFC), also known controls to improve seek and settle times, and overall improved mechanical stability to excel in today's demanding data-processing environments.
Model : HUS151414VLS300
DPN: UM902 / 0UM902
Compatibility:
All SAS compatible servers including:
Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000
| Specifications | |
|---|---|
| Model number | 0B20915 / HUS151414VLS300 |
| Model Name | 15K147 |
| Formatted Capacity | 147 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 5 |
| Performance | |
| Internal Transfer Rate (max) | 1129 Mbits/sec |
| External (I/O) Transfer Rate (max) | 425 MBytes/sec |
| Average Latency | 2.00 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 26.1 mm |
| Width | 101.6 mm |
| Length | 146.0 mm |
| Weight | 758 g |
| Environmental | |
| Max Operating Shock (2-msec) | 15 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^15 bits read |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS151414VLS300 UM902 0UM902
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
