Hitachi Part #/MPN: 0B23460
DiscTech Item #: HIT-0B23460-BN-OE-DEL
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 98 - 160
Average Seek Time: 3.6
Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB

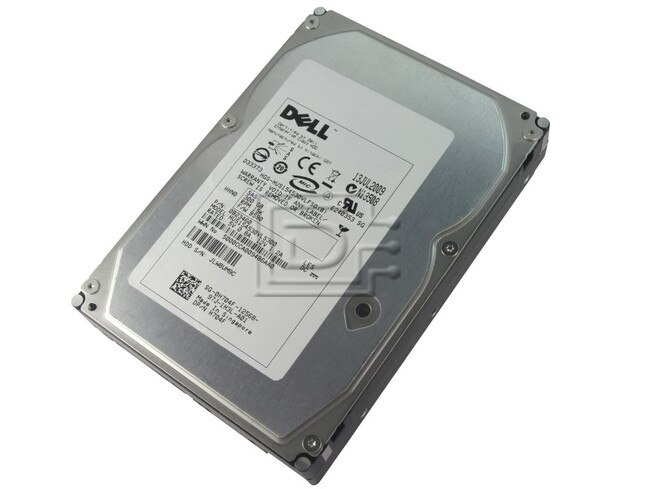

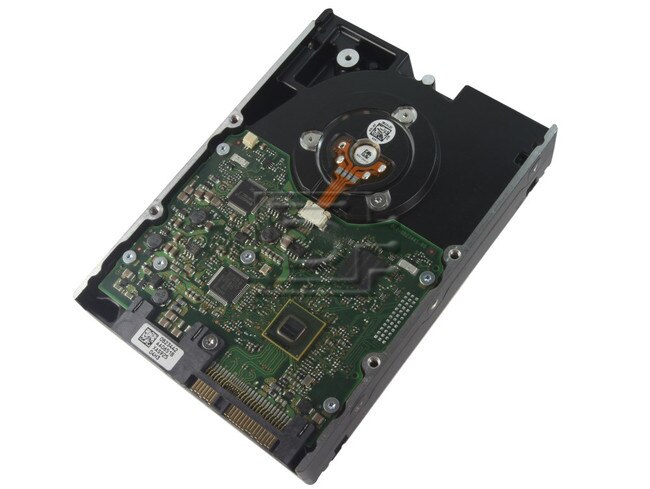

Hitach Ultrastar 15K450 0B23460 / HUS154530VLS300 300GB 15K RPM 3.0Gbps Serial SCSI / SAS Hard Drive - Brand New OEM
Ultimate performance meets high capacity
Hitachi’s next-generation 3.5-inch 15,000 RPM enterprise class hard drive delivers the performance and reliability required in mission-critical non-stop computing environments. Built upon the mature system architecture and electronics of the prior generation, the Ultrastar™ 15K450 provides up to a spacious 450GB capacity, 16MB cache and a choice of Serial Attached SCSI (SAS) 3Gb/s or Fibre Channel Arbitrated Loop (FCAL) 4Gb/s interfaces. These features make the Ultrastar 15K450 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and multi-user applications. The mature design of Ultrastar 15K450 helps ensure shorter qualification time.
Highest reliability for demanding environments
Important reliability features come standard in the Ultrastar 15K450. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi-patented Thermal Fly-height Control (TFC) technology maintains a consistent fly-height during the read/write process ensuring a better soft error rate, while end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.
Proven PMR technology
The Ultrastar 15K450 is the first enterprise-class drive from Hitachi to use Perpendicular Magnetic Recording (PMR) technology. PMR has already been in use across the company’s mobile and desktop product lines and has been proven ready for the demanding mission-critical server and storage applications in the enterprise environment.
Dell p/n: 0H704F H704F
All SAS compatible servers including:
Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000 and MD3000.
0B23460 / HUS154530VLS300
Formatted Gbytes (512 bytes/sector)
Bytes per sector
Areal density (Gbits/inch2 avg)
Spindle speed (RPM)
I/O data transfer rate (Mbytes/sec max)
Weight (max) grams
Average seek, read (msec typical)
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS154530VLS300 0H704F H704F
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
