Hitachi Part #/MPN: 0B24502
DiscTech Item #: HIT-0B24502-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 198 to 119
Average Seek Time: 3.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

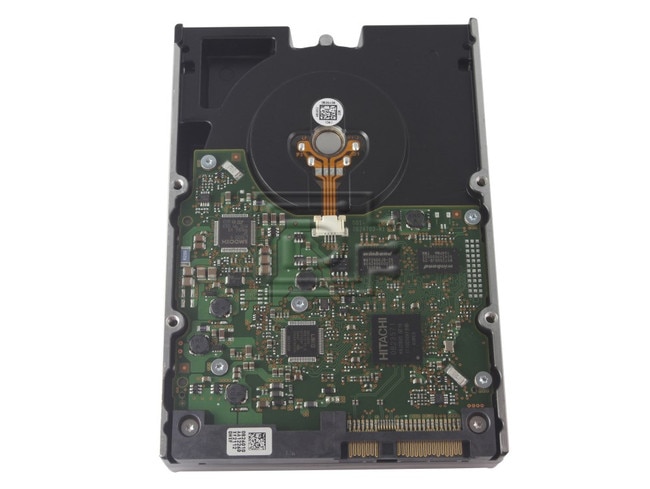

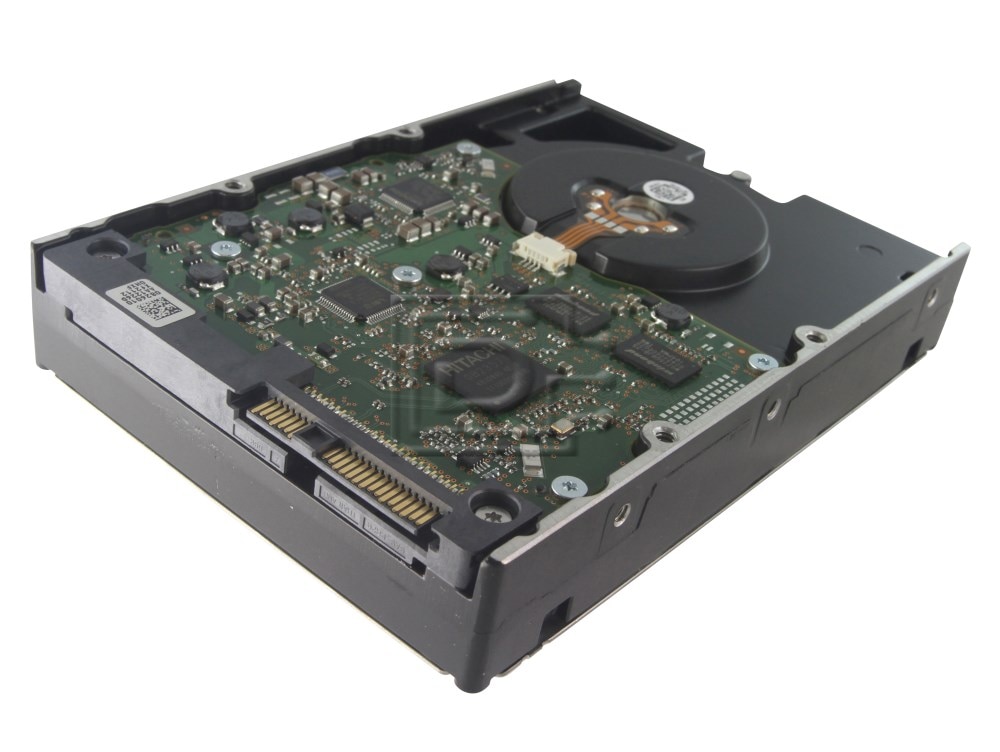

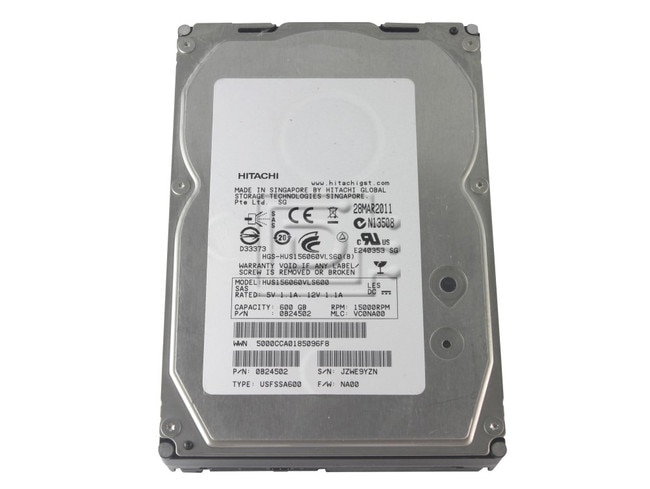

Hitachi Ultrastar 15K600 0B24502 / HUS156060VLS600 / NetApp 600GB 6Gbps SAS / Serial Attached SCSI 15K RPM Enterprise Hard Drive - Refurbished
Hitachi Ultrastar 15K600 0B24502 / HUS156060VLS600 600GB 6.0Gbps SAS / Serial Attached SCSI 15000 RPM Enterprise Hard Disk Drive - Refurbished
All-in-one Storage Solution
HGST combines ultimate performance with high capacity in the same drive. The Ultrastar™ 15K600 can store up to 600GB of data while spinning at 15,000 RPM. That amounts to a capacity growth of 33% over its predecessor to keep pace with digital data growth and improve space efficiency in today’s data centers. At the same time, sequential performance increased by 23% compared to prior generation to keep data moving faster. The 64MB cache buffer is the largest in the industry in its class and the 15K600 is designed for HGST reliability. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments like on-line transaction processing, intensive data analysis, multi-user applications and data warehousing.
Friends of the Earth
Compared to its predecessor, power usage is reduced by up to 31% to help reduce the cooling requirements in data centers. In addition, Advanced Power Management feature enables multiple idle modes in order to optimize power usage and save even more on energy costs. The 15K600 also saves money because the larger capacity enables higher data storage density in the current footprint without further expansion of the data center. These eco-friendly features qualify the 15K600 for the EcoTrac classification.
Compromise Nothing
The Ultrastar 15K600 self-encrypting models conform to the Trusted Computing Group’s Enterprise A Security Subsystem Class encryption specification. Now, customers can reduce costs associated with drive retirement and extend drive life by enabling repurposing of drives.
Alt. MPN : HUS156060VLS600
Compatibility:
The Hitachi 0B24502 is compatible with any server that accepts 3.5"x1" (LFF) SAS Hard Drives.
| Specifications | |
|---|---|
| Model | 0B24502 (NetAPP) |
| Configuration | |
| Interface | SAS 6Gbps |
| Capacity (GB) | 600 |
| Data heads (physical) | 8 |
| Data Disks | 4 |
| Performance | |
| Data buffer (MB) | 64 |
| Rotational speed (RPM) | 15,000 |
| Interface transfer rate (MB/s, max | 600 |
| Sustained transfer rate (MB/s, typical) | 198 to 119 |
| Seek time (read/write, ms, typical) | 3.4 |
| Reliability | |
| Error rate (non-recoverable, bits read) | 1 in 1016 |
| MTBF (M hours) | 1.6 |
| Availability (hrs/day x days/wk) | 24x7 |
| Acoustics - Idle (Bels) | 3.7 |
| Power | |
| Requirement | +5 VDC (+/-5%) / +12 VDC (+/-5%) |
| Operating, (W, typical) | 16.6 |
| Unload power idle (W) | 10.7 |
| Physical size | |
| z-height (mm) | 25.8 |
| Dimensions (width x depth, mm) | 101.6 x 146.2 |
| Weight (g, max) | 750 |
| Environmental (operating) | |
| Ambient temperature | 5o to 55o C |
| Shock (half-sine wave) | 30G (2ms) |
| Vibration (G RMS, 5 to 500 Hz) | 1.5, all axes |
| Environmental (non-operating) | |
| Ambient temperature | -40o to 70o C |
| Shock (half-sine wave) | 200G (2ms) |
| Vibration (G RMS, 5 to 500 Hz) | 2.0, all axes |
