EATON Part #/MPN: 00AK123
DiscTech Item #: IBM-00AK123-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: IEC C13, IEC C19
U Height: 3U
Wattage/VA: 5000W
Voltage: 110-240V Multi

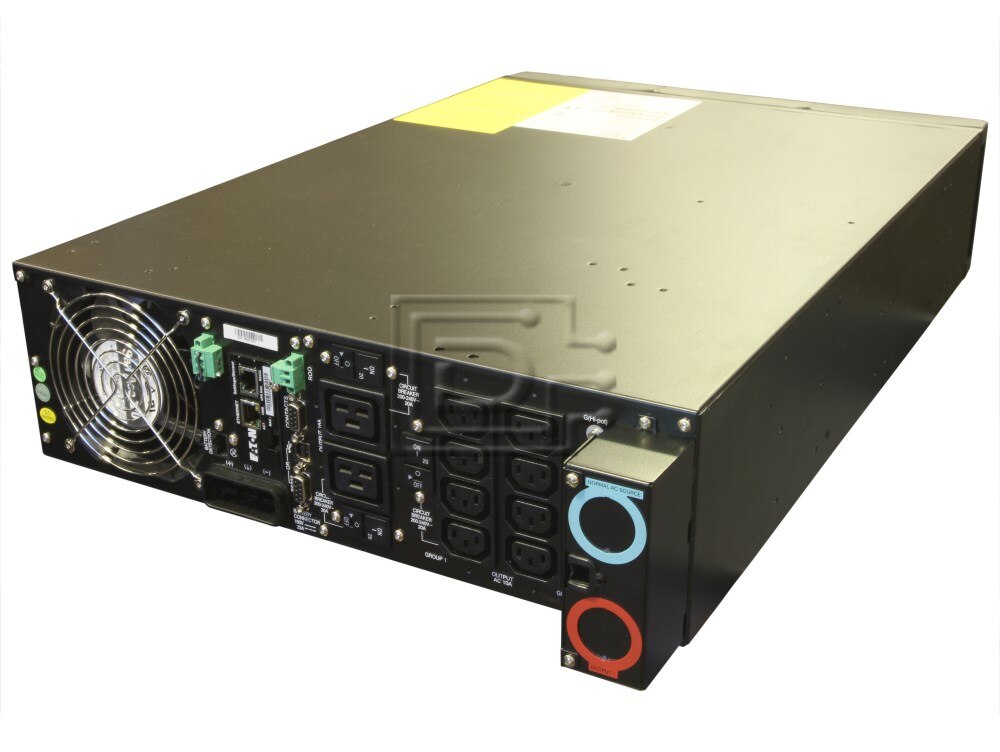

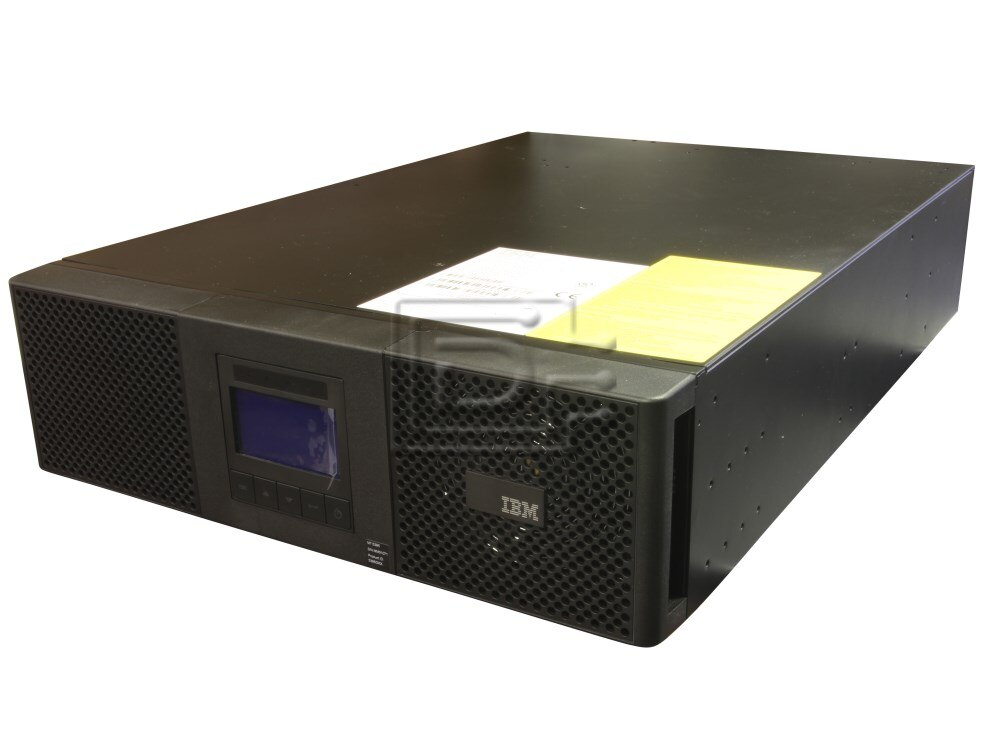

IBM 00AK123 / 9SX UPS 6000VA / 5000W Uninterruptible Power Supply - Brand New
IBM 00AK123 / 9SX UPS 6000VA / 5000W Uninterruptible Power Supply - Brand New
Alt MPN's: IBM 5395, 5395-RU4, 5395GKX, 00AK116, 00AK123
Compatibility:
This model of UPS is compatible with IBM 00AK0017.
Technical Specifications | |
---|---|
Output | |
Output Power Capacity | 200/208/220/230/240V +/- 1% |
Max Configurable Power | 5000 VA / 6000W |
Nominal Output Voltage | 200/208/220/230/240V |
Output Frequency | 50/60 Hz autoselection |

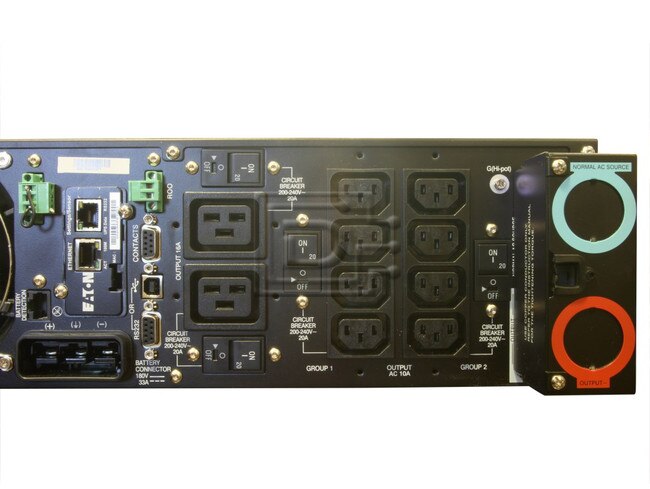

Output Connections | (8) IEC 320 C13 / (2) IEC 320 C19 |
Input | |
Nominal Input Voltage | 200/208/220/230/240V |
Input Frequency | 50/60 Hz autoselection |
Input Connections | Hardwired - (Manual describes terminal block layout) |
Input voltage range for main operations | 176-276V without derating (up to 100-276V with derating) |
Batteries & Runtime | |
Battery Management | ABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
Extended Battery Capability | EBM with Rack Kit |
Communications | |
User Interface | Multilingual graphical LCD Display |
Communication Ports | 1 USB Port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off |
Communications Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
Environments & Standards | |
Audible Noise | <45dB |
Operating Temperatures | 0 to 40 degrees celcius continuous |
Safety Markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
EMC Markings | IEC/EN 62040-2, FCC Class A, IEC/EN 62040-3 (Performance), C-Tick |
Approvals | CE, CB report (TUV), UL |
Alternate MPNs: 5395 5395-RU4 5395GKX 00AK116 9SX6KIRT
Weight: 106 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
