IBM Part #/MPN: 43W7666
DiscTech Item #: IBM-43W7670-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SATA
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 120
Average Seek Time: 4.2
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

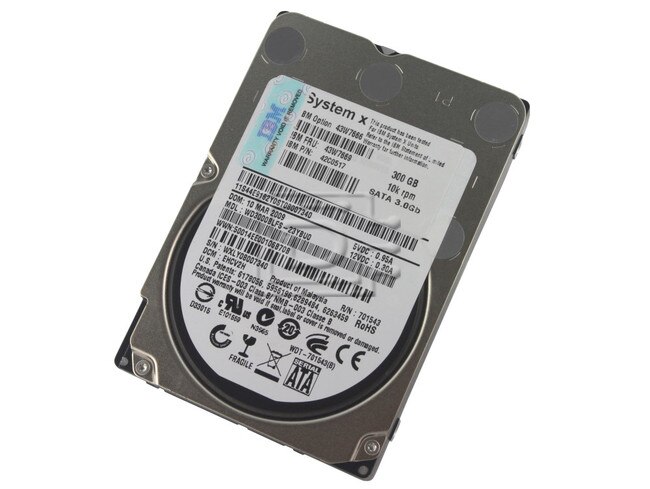

IBM BladeCenter 43W7670 300GB 10K 2.5" 3Gbps SFF NHS SATA Hard Drive - Brand New
Overview
The 300 GB 10K rpm SATA 2.5-inch non hot-swap and slim hot-swap hard drives provide 2.5 inch form factor options that can be used as hot-swap or non-hot-swap drives. The addition of a 10K rpm offering to the IBM BladeCenter blade family of 2.5-inch SATA hard drives will offer the highest-performing SFF options and a wider selection of choices to satisfy the range of potential applications. These new drives are positioned at the top of our SATA SFF hard drive line based on increased performance.
Compatibility:
This hard drive is compatible with blade servers capable of accepting 14.8mm high SATA drives.
| x3400 M2 | x3400 M3 | x3500 M2 | x3500M3 |
| x3550 M2 | x3550 M3 | x3650 M2 | x3650 M3 |
| BladeCenter HS22 |
The 300 GB 10K rpm SATA 2.5-inch NHS and Slim-HS HDDs provide 2.5-inch form factor options that can be used as hot-swap or non-hot-swap drives. The addition of a 10K rpm offering to the IBM BladeCenter blade family of 2.5-inch SATA HDDs will offer the highest-performing SFF options and a wider selection of choices to satisfy the range of potential applications. These new drives are positioned at the top of our SATA SFF HDD line based on increased performance. Key features and benefits include:
- 10,000 rpm speed to optimize performance
- Superior reliability that enables operation in RAID environments without compromising application performance or availability
Performance
300 GB performance characteristics include:
- Formatted capacity: 300,000 MB
- Drive to host interface that supports 3.0 Gb/s burst rate
- Drive media to buffer interface that supports sustained interface data transfers of up to 120 MB/s average
- Spindle speed of 10,000 rpm
- Average latency of 3.0 ms
- Average seek on reads of less than 4.2 ms
- Hot-swap capability
- SATA interface
Reliability
- SATA compliance enables HDDs to connect directly into BladeCenter systems.
- S.M.A.R.T Technology allows software utilities to alert you of impending drive failures so replacements can be made before a problem occurs.
- Rigorous testing through the ServerProven® program instills confidence that your storage subsystem is compatible and will function reliably.
The IBM 300 GB 10K SATA HDDs are supported on HS21, HS21 XM, and HS12 blade servers.
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 43W7673
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
