IBM / Hitachi Fibre / Fiber Channel Hard Drive 07N9370

(0) No Reviews Yet

Hitachi Part #/MPN: 07N9370

DiscTech Item #: HIT-07N9370-BN-OE


$75.00
$75.00

Enterprise Grade

Capacity: 36GB

Speed: 10,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 33.8 - 66.7

Average Seek Time: 4.7

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 8MB

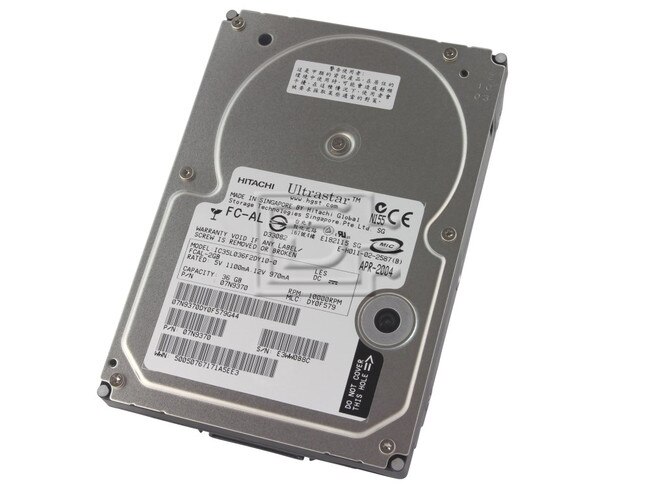

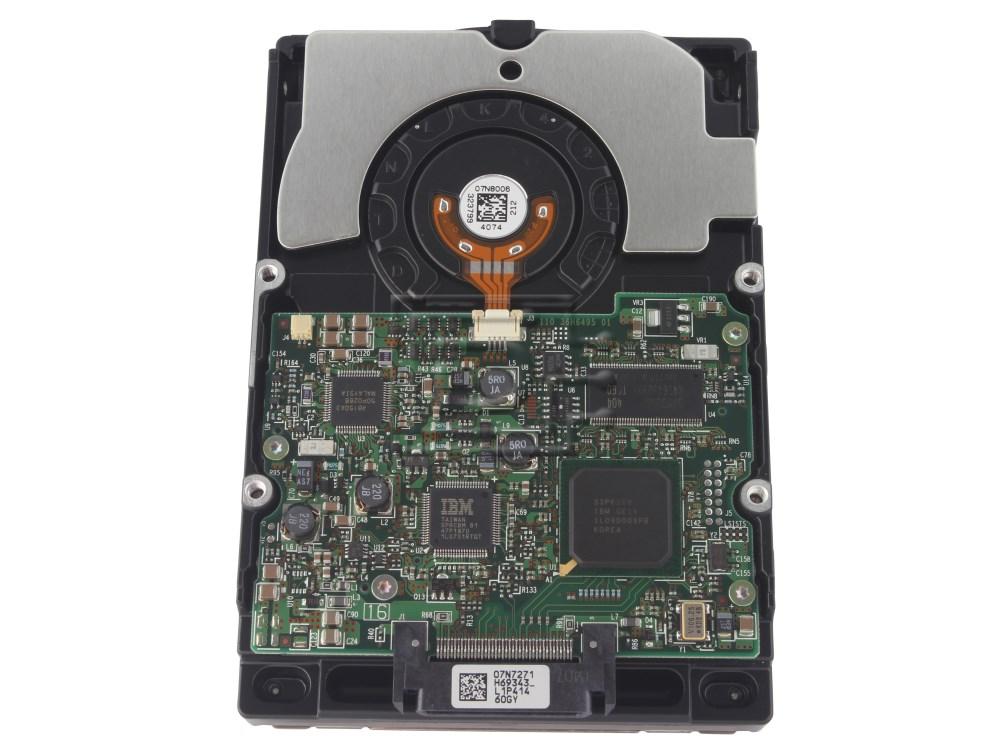

IBM / Hitachi 146Z10 07N9370 / IC35L036F2DY10 36GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive - Brand New

Highlights:

  • Rotational speed of 10,000 rpm and average seek times as low as 4.7 ms provide outstanding performance
  • Capacities of 146, 73, 36, and 18GB from a single server drive family for unrivaled configuration flexibility and ease of integration
  • First ever server-class drive to implement antiferromagnetically-coupled (AFC) media, combined with advanced head/disk design, resulting in high reliability for today�fs critical server-class environments
  • Enhanced servo technology (Rotational Vibration Safeguard) nullifies the effect of rotational vibration in multi-drive cabinets, overcoming an industry hurdle to optimal server performance

Advanced drive technology

Introducing the sixth generation of Ultrastar 10,000 rpm disk drives. The Hitachi Ultrastar 146 Z10 drive family offers high quality and superior performance. These drives feature more powerful processors and read/write channels to excel in server-class environments.

To achieve maximum I/O performance, the drives combine fast seek times, large 8 MB multi-segmented buffers, a sophisticated command queuing algorithm, hardware automation, and superior data rates (825 Mbps). Ultrastar 146 Z10 drives include new servo technology (Rotational Vibration Safeguard "RVS"), employed to counteract the effects of rotational vibration that commonly occur in multi-drive cabinets. They also employ fifth-generation giant magnetoresistive (GMR) head technology to double areal density from previous generation drives (26.3 Gbits/sq. in.) and boost performance. In addition, highly efficient No-ID* sector formatting enables more data to be stored per disk.

Reliability features

The Ultrastar 146 Z10 family of server-class drives is the first of its class to incorporate our storage breakthrough technology antiferromagnetically-coupled (AFC) media. Informally known as �gpixie dust�h, this technology sandwiches a three-atom thick layer of ruthenium, a precious metal, between two magnetic layers on a disk. AFC technology provides greater stability of the recording media, enhancing reliability.

Drive Fitness Test enables drive self-testing and analysis for more robust system management. To help ensure data protection, Hitachi Ultrastar drives include exclusive reporting tools, such as Predictive Failure Analysis* (to signal potential drive problems) and Drive-TIP* (to monitor the drive temperature and avoid malfunctions).

In addition, load/unload technology and glass substrate disks increase reliability of Ultrastar drives by providing a more robust solution at high rotational speeds.

Outstanding environmentals

Hitachi Ultrastar drives provide extremely quiet operation. The tri-laminate drive cover reduces both idle and seek acoustics while an enhanced spindle motor driver enables smoother commutation for less noise. Moreover, the Ultrastar 146Z10 delivers an outstanding power efficient design.

Support for advanced applications and interfaces

Hitachi Ultrastar drives provide high data throughput for data-intensive applications with a choice of 2 Gbit Fibre Channel and Ultra320 SCSI (backward-compatible) interfaces. The Ultra320 SCSI adds greater speed, reduced overhead, improved diagnostic capabilities and data protection.

Hitachi p/n: IC35L036F2DY10 / Daytona


Compatibility:

This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays.

Specifications
Model number 07N9370 / IC35L036F2DY10
Model Name 146Z10
Formatted Capacity 36 Gbytes
Rotational Speed 10,000 rpm
Default Buffer (cache) Size 8 Mbytes
Number of Discs (physical) 2
Performance
Internal Transfer Rate (max) 433 - 825 Mbits/sec
External (I/O) Transfer Rate (max) 212.5 MBytes/sec
Average Latency 2.99 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.0 mm
Weight 780 g
Environmental
Max Operating Shock (2-msec) 10 Gs
Max Nonoperating Shock (2-msec) 75 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 65 deg C
Nonoperating Temperature (min) -40 deg C
Reliability
Nonrecoverable Read Errors 1 per 10^15 bits read

Click here to view the manufacturer's item description/brochure

Alternate MPNs: IC35L036F2DY10

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
