Hitachi Fibre / Fiber Channel Hard Drive 0B20853

Hitachi Part #/MPN: 0B20853

DiscTech Item #: HIT-0B20853-BN-OE


$134.00
$134.00

Enterprise Grade

Capacity: 73GB

Speed: 15,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 3.7

Electrical Interface: FC-AL - 4Gbps

On-Board Cache: 16MB

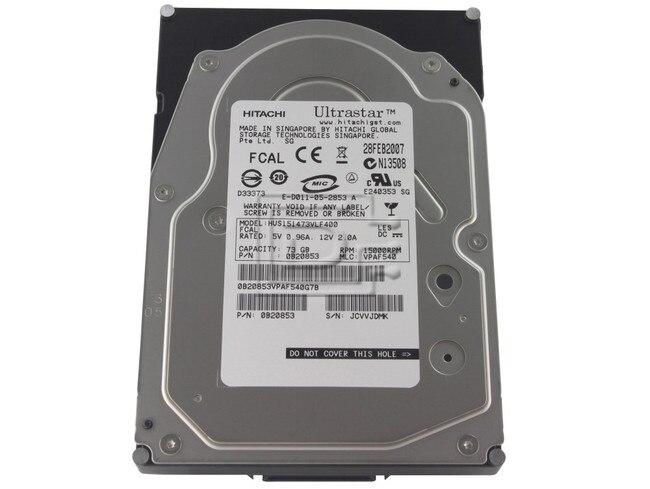

Hitachi 15K147 0B20853 / HUS151473VLF400 73GB 15K 4Gbps 40pin FC-AL Fibre Channel Hard Drive - Brand New

The Hitachi Ultrastar 15K147 is the 3rd generation of 15,000 RPM enterpriseclass hard drives from Hitachi. Leveraging award-winning technologies that have generated proven quality and high-performance, the Ultrastar 15147 incorporates Fluid Dynamic Bearing motors (FDB) to contribute to increased capacity by enabling high-track density through a more precise position of the head. AFC Media, also known as "pixie dust", is an industry-first in 15,000 RPM enterpriseclass hard drives, enabling higher areal densities by improving thermal stability, which in turn, maintains data integrity.

Designed for both high-performance and high-reliablity, the Ultrastar 15K147 was developed with powerful processors and read-write channels, advanced servo coupled technology, (AFC), also known controls to improve seek and settle times, and overall improved mechanical stability to excel in today's demanding data-processing environments.

Model : HUS151473VLF400 / VIPER-AP


Compatibility:

This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays.

Specifications
Model number 0B20853 / HUS151473VLF400
Model Name 15K147
Formatted Capacity 73 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 16 Mbytes
Number of Discs (physical) 3
Performance
Internal Transfer Rate (max) 1129 Mbits/sec
External (I/O) Transfer Rate (max) 425 MBytes/sec
Average Latency 2.00 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 26.1 mm
Width 101.6 mm
Length 146.0 mm
Weight 758 g
Environmental
Max Operating Shock (2-msec) 15 Gs
Max Nonoperating Shock (2-msec) 250 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Reliability
Nonrecoverable Read Errors 1 per 10^15 bits read

Click here to view the manufacturer's item description/brochure

Alternate MPNs: HUS151473VLF400

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
