Hitachi Part #/MPN: 17R6381
DiscTech Item #: HIT-17R6381-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:13Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 46.8 - 89.3
Average Seek Time: 4.7
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 16MB

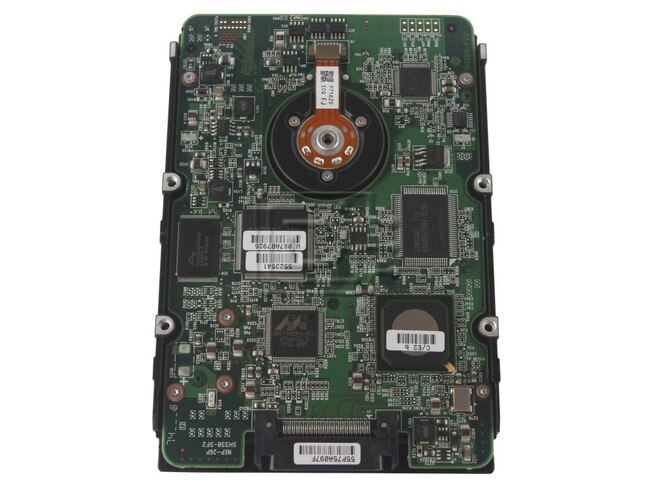

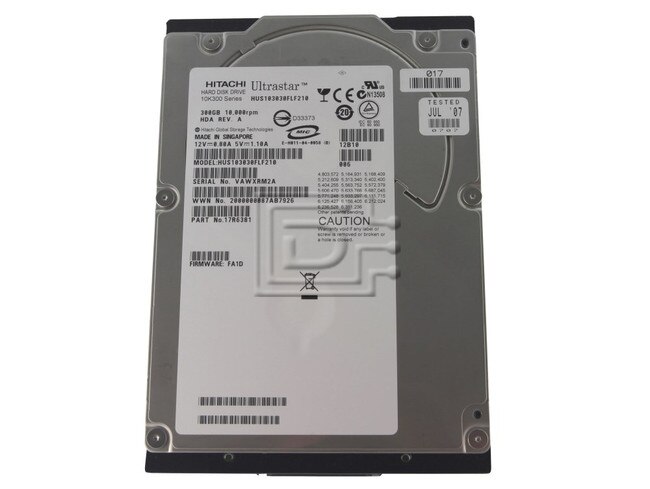

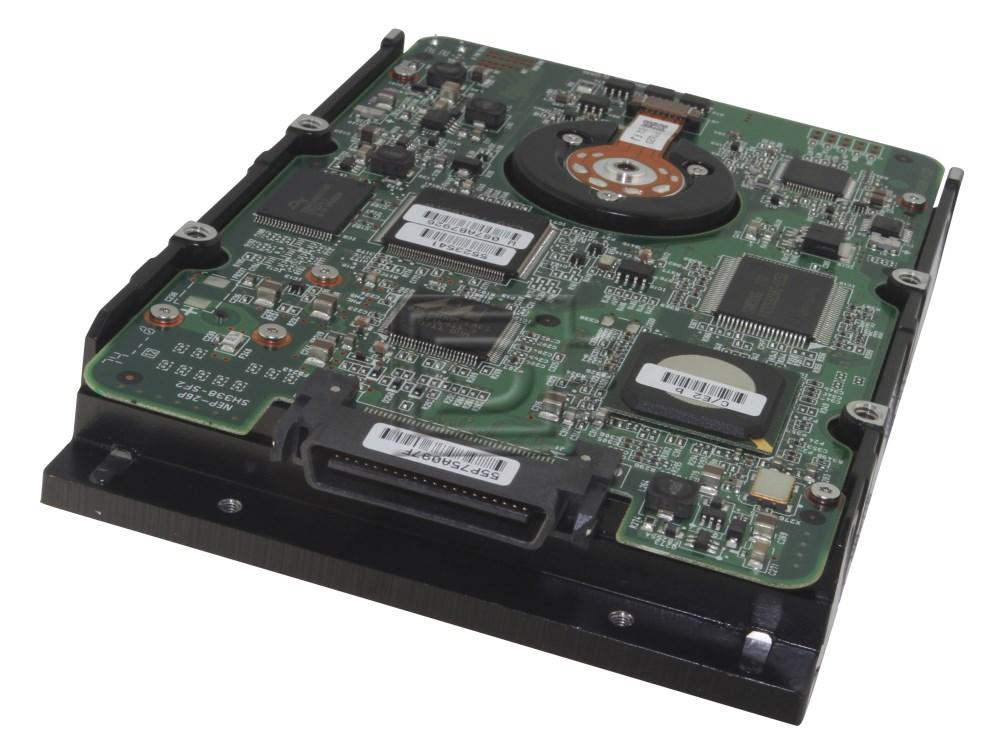

Hitachi 10K300 17R6381 / HUS103030FLF210 300GB 10K 2Gbps 40pin FC-AL Fibre / Fiber Channel Hard Drive - Brand New
Ultrastar 10K300 17R6381 / HUS103030FLF210 Hard Drive offers the lowest total cost of ownership enterprise solution in the industry. At double the capacity of previous generations, the new Ultrastar drive enables mission critical configurations utilizing fewer systems for equivalent capacity and performance, requiring less power to run those systems, and fewer people to manage them. A mature drive design means higher quality and less down time for repairs.
Model : HUS103030FLF210 / Python-A
Compatibility:
This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays
| Specifications | |
|---|---|
| Model number | 17R6381 / HUS103030FLF210 |
| Model Name | 10K300 |
| Formatted Capacity | 300 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 5 |
| Number of Heads (physical) | 10 |
| Performance | |
| Internal Transfer Rate (max) | 1075 Mbits/sec |
| External (I/O) Transfer Rate (max) | 200 MBytes/sec |
| Sustained Transfer Rate | 46.8 - 89.3 MBytes/sec |
| Average Latency | 2.99 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 26.1 mm |
| Width | 101.6 mm |
| Length | 147.0 mm |
| Weight | 750 g |
| Electrical | |
| Power (Idle) | 13.4 watts |
| Startup Current (12VDC +/- 5%) | 2.45 amps |
| Startup Current (5VDC +/- 5%) | 1.10 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 15 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 2.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS103030FLF210
