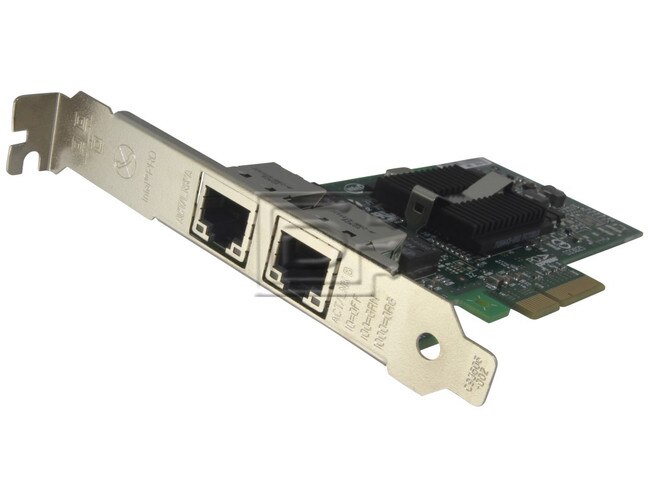

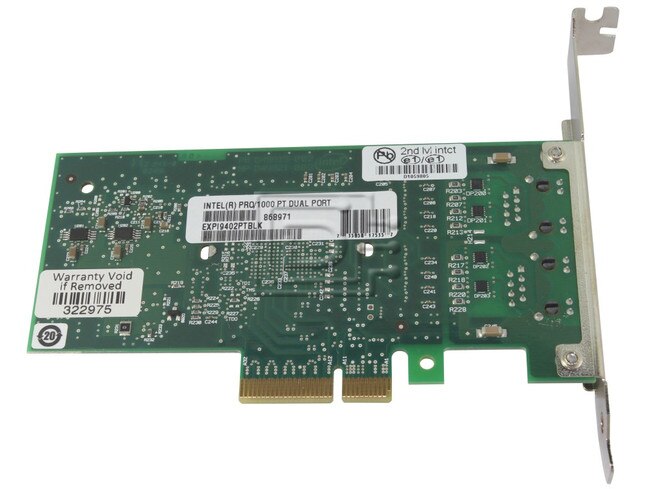

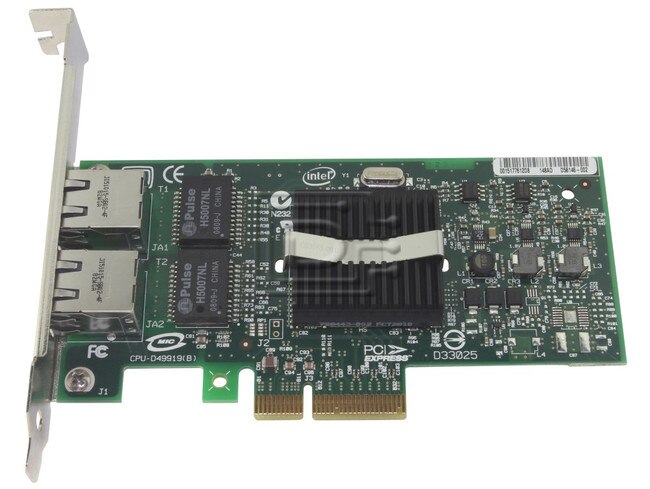

Intel Pro/1000 Intel PRO/1000 PT Dual Port Server Adapter EXPI9402PT

INTEL Part #/MPN: EXPI9402PT

DiscTech Item #: INT-EXPI9402PT-NP-OE


$95.00
$95.00

Interface Types: Ethernet RJ45, PCIe

On-Board Cache: 8MB

Intel Pro/1000 Intel PRO/1000 PT Dual Port Server PCIe Ethernet Adapter EXPI9402PT - New Pull

Intel Pro/1000 Intel PRO/1000 PT Dual Port Server Adapter EXPI9402PT - New Pull

Two Gigabit Copper Server Connections in a Single PCI Express* Slot

Conserve valuable PCI Express (PCIe*) server slots while adding multi-port Gigabit Ethernet capability with the Intel PRO/1000 PT Dual Port Server Adapter. The dedicated I/O bandwidth of PCIe ensures priority performance on each port, without bus sharing, for Gigabit Ethernet connectivity in Category-5 networks. Additionally, the Intel PRO/1000 PT Dual Port Server Adapter is designed to provide high performance in multi-processor systems by efficiently balancing network loads across multiple Central Processing Units (CPUs) when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux*.

The Intel PRO/1000 PT Dual Port Server Adapter features 10/100/ 1000 Mbps self-configuration for compatibility with mixed-speed network devices, and is supported by Intel PRO Intelligent Install and the new Intel PROSet Utility for Microsoft* Device Manager. Intel PROSet simplifies adapter installation and gives you point-and-click power to configure and manage all your Intel PRO Network Connections for connectivity you can count on.

Two high-performance PCI Express 10/100/1000 Mbps connections for slot-constrained servers

Multi-Gigabit scalability and increased uptime through advanced server features

Built on Intel lead-free1 technology

***Does NOT include Optional low-profile bracket included for high-density, rack-mounted servers

Alternate Part Numbers: G174P M4166 313-4439 430-1734 430-2476 A0620418 X3959 D33682

Features Benefits
Intel 82571GB Gigabit Controller Enhances high performance and reliability
Load balancing on multiple CPUs Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with receive-side scaling from Microsoft or Scalable I/O on Linux
Interrupt moderation Delivers increased performance while significantly reducing CPU utilization
Compatible with x4, x8, and x16 full-height and low-profile PCI Express* slots Allows use in any PCI Express server slots
Support for most network operating systems (NOS) Enables widespread deployment
Remote management support Reduces support costs with remote management based on industry-wide standards
Category-5 unshielded twisted pair (UTP), 4-pair cabling Uses existing 4-pair cabling and saves re-wiring costs

RoHS compliant Compliant with the new European Union directive (effective July 2006) to reduce the use of hazardous materials
Intel PROSet Utility for Microsoft* Device Manager Provides point-and-click power over individual adapters, advanced adapter features, connection teaming, and VLAN configuration
Advanced cable diagnostics Dynamically tests and reports network problems (error rate, cable length) and automatically compensates for cable issues (cross-over cable, wrong pin-out/polarity)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: G174P M4166 313-4439 430-1734 430-2476 A0620418 0X3959 X3959 D33682

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull
