Kingwin Part #/MPN: EZD-2536U3
DiscTech Item #: KWI-EZD-2536U3-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: SATA, USB 2.0, USB 3.0 3.1 3.2
Form Factor: 3.5inx1.0in LFF Hard Drive
On-Board Cache: 8MB
Wattage/VA: 36W
Voltage: 110-240V Multi
Color: Black

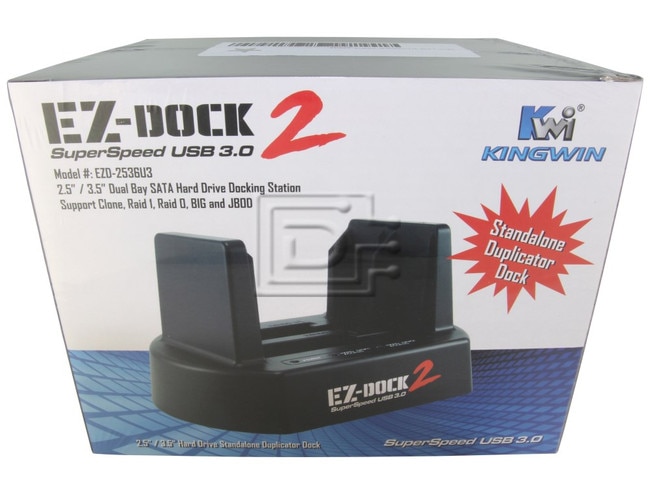

Kingwin Dual Bay 2.5-Inch and 3.5-Inch SATA Hard Drive Docking Station with USB 3.0 - Duplicator - RAID 0 or 1 or JBOD - EZD-2536U3 - Refurbished
The EZ-Dock2 (Model EZD-2536U3) is a SuperSpeed USB 3.0 Dual-Bay 2.5”/3.5” SATA Hard Drive Docking Station with RAID options and also can work as a stand-alone drive duplicator. SuperSpeed USB 3.0 interface has data transfer bandwidth of up to 5Gbps offering 10X faster performance over Hi-Speed USB 2.0 (480Mbps) while still retaining backward compatibility and interoperability with all PC USB ports and devices. SuperSpeed USB 3.0 also works well with latest Windows 8 and Mac OS X.
The EZ-Dock2 top-loading bay lets you easily insert one or two 2.5” or 3.5” SATA Hard Drives or Solid-State Drives (SSD). Each bay can support drives with up to 4TB capacity. You can also mix and match any HDD or SDD and any disk size at the same time. The EZ-Dock2 also has a Power and two Drive LED status indicators.

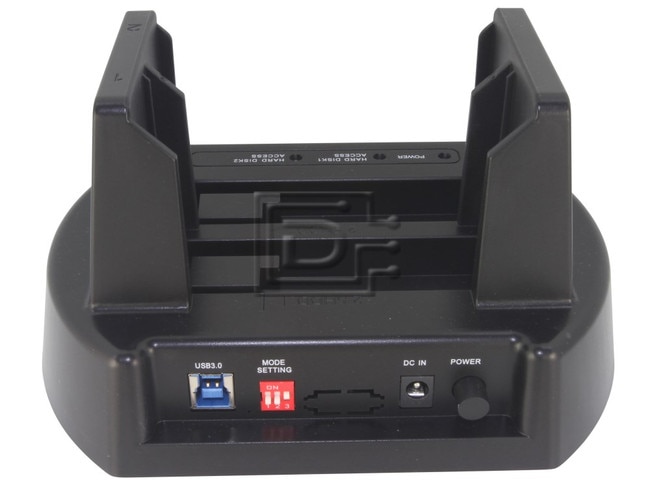

The EZ-Dock2 switch mode settings support RAID 0 (Striped) mode for maximum capacity and accelerated performance, RAID 1 (Mirrored) mode for real-time extra drive backup protection, JBOD (Just a Bunch Of Disks) mode for two separate independent drives, and also BIG mode for one concatenated big capacity drive. The DIP switches are located at the rear of the EZ-Dock2.
Another unique feature of the EZ-Dock2 is the stand-alone disk cloning feature that allows you to duplicate or clone the entire drive to another faster or larger drive without having to connect to a PC. Simply plug the source drive to Bay-1 and the new drive to Bay-2, turn on the EZ-Dock2 power and set the duplicator jumper switch to begin the cloning process. The result is two identical drives containing the same files, boot sector, partition table and file system format. If the destination drive is larger than the source drive, the remaining partition of the drive that was not used during the cloning process will be converted as an unallocated partition. You can still repartition and format that partition as another extra logical drive.
Interface: | Serial ATA to USB 2.0 or 3.0. |
Application: | 3.5" or 2.5" Serial ATA HDD. |
Material: | Plastic. |
Cooling fan: | N/A. |
Color: | Black. |
Power Adapter: | AC Input: 100~240V, 50~60Hz; DC Output: 12V, 3A; Watts:36W |
Dimensions: | 133 (W) x 123 (L) x 62 (H) mm. |
Weight: | 2lb. |
System Requirement: | PC or Mac system(Desktop/Laptop) with available USB 2.0 or 3.0 ports. |
Operating System: | Windows 2000/XP/Vista/7/8, Mac OS 10.5 or higher. |
Contents: | EZDock2, Manuals, USB 3.0 Cables, Power Adapte (Drives not included) |
Click here to view the manufacturer's item description/brochure
Weight: 4 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
