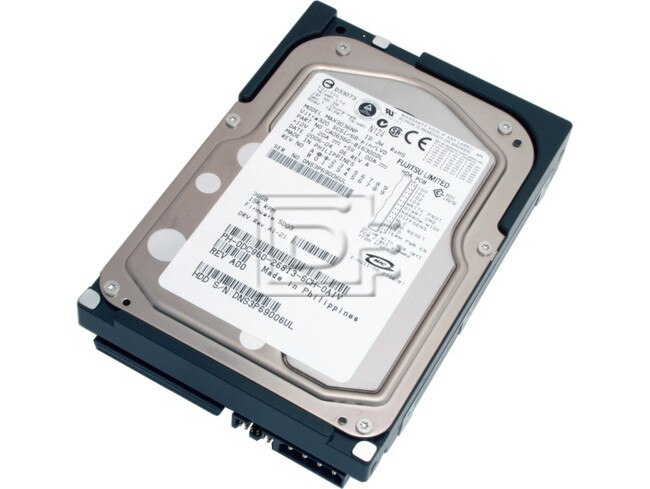

MAX3036NP Fujitsu SCSI Hard Drives

(0) No Reviews Yet

FUJITSU Part #/MPN: MAX3036NP

DiscTech Item #: FUJ-MAX3036NP-BN-OE


$149.95
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$149.95

Enterprise Grade

Capacity: 36GB

Speed: 15,000RPM

Interface Types: SCSI 68pin HD68 Female

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 3.3 / 3.8

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

Fujitsu MAX 36GB 15K U320 68pin SCSI Hard Drive MAX3036NP - Brand New

  • Features storage capacities of 36, 73 and 147GB(1).
  • Provides maximum internal data-transfer rates of 147MB/s.
  • Includes 8MB data buffer for optimizing the overall drive performance.
  • Offers Fujitsu Fluid Dynamic Bearing (FDB) technology, assuring remarkably quiet operation.
  • RoHS compliant enterprise hard disk drives with Ultra320 SCSI as well as 2Gbps and 4Gbps Fibre Channel interfaces.

Compatibility:

This drive is compatible with any of our SCSI controllers

Specifications
Model number MAX3036NP
Model Name MAX
Formatted Capacity 36.7 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 8 Mbytes
Performance
External (I/O) Transfer Rate (max) 320 MBytes/sec
Average Seek Time, Read 3.3 msec typical
Average Seek Time, Write 3.8 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.4 msec typical
Average Latency 2 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.0 mm
Weight 0.75 kg
Electrical
Power (Idle)11.5 watts
Environmental
Max Operating Shock (2-msec) 65 Gs
Max Nonoperating Shock (2-msec) 250 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Acoustical
Acoustics, Idle (sound power, typ) 3.6 Bels
Reliability
MTBF (Hours) 1,200,000 hours
Nonrecoverable Read Errors 1 per 10^15 bits read

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Brand New
