Maxtor Part #/MPN: 8J300J0
DiscTech Item #: MAX-8J300J0-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 89
Average Seek Time: 4.0 / 4.5
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

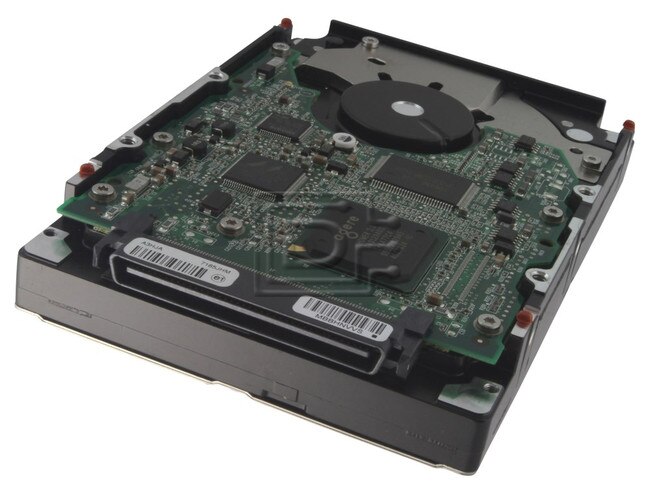

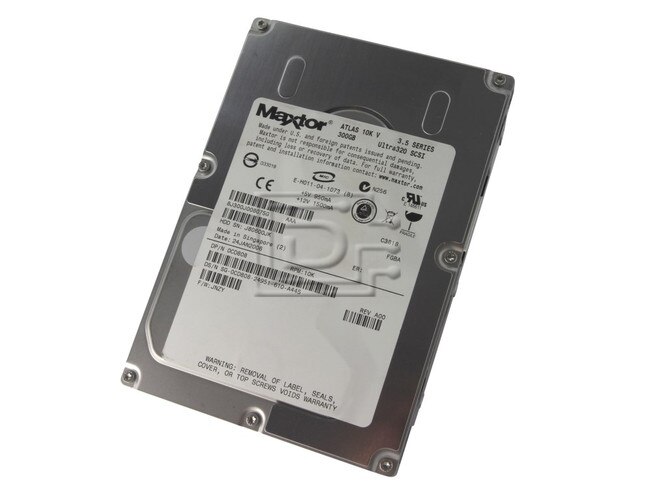

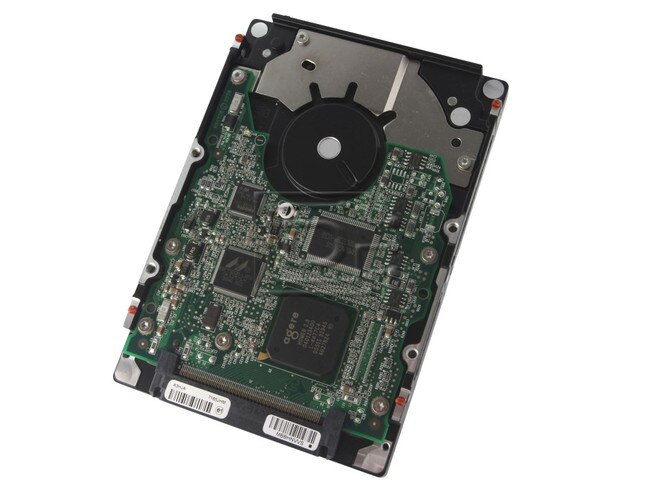

The Atlas 10K V SCSI hard disk drive (Lead Free / RoHS compliant) is the industry’s largest and most reliable 10K SCSI drive, with 300GB maximum capacity and a MTTF of 1.4 million hours. Seek times as fast as 4.0ms and 89MB/sec sustained data transfer rate makes the Atlas 10K V drive an excellent solution for any application. It includes Maxtor’s intelligent drive technology, MaxAdapt®, which allows the HDD to adapt to individual system designs for seamless integration while maintaining peak performance.
MaxAdapt features include:
* Adaptive Bias Estimation -- maintains consistent performance
* Virtual Cache Lines (VCL) -- allows dynamic assignment of cache segments
* Adaptive Active Filtration -- improves signal integrity
* Rotational Vibration Compensation (RVC) -- monitors and corrects for induced vibration
Performance improvement features include:
* Anticipatory read and write streams -- minimizng latency
* Opportunistic pre-fetch -- uses latency between commands to read ahead
* Auto Read mode -- improves random and multiple sequential streams performance
* Industry's highest 10K performance
* Formatted capacity: 73.4GB, 147.1GB, 300GB
* Seek time as fast as 4.0ms
* Designed for 1.4 million hours MTTF
* Third-generation Ultra320 SCSI
* MaxAdapt® intelligent drive technology
* 89MB/s maximum sustained data rate
* 8MB cache buffer
* Enhanced S.M.A.R.T. features
* Thermal sensor
*Lead Free / RoHS compliant
Specifications | 73.5 GB | 147.1 GB | 300 GB |
Formatted Capacity (GB) | 73.5 | 147.1 | 300 |
Bytes per Sector | 512 | 516 | 518 |
Interface Ultra 320 SCSI (Backwards compatible with Ultra160, Ultra2, Ultra SCSI) | |||
Interface Connectors 68-pin WIDE and 80-pin SCA-2 | |||
Average Read/Write (ms) | 4.0/4.5 | 4.2/4.7 | 4.4/4.9 |
Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
Full stroke Read/Write (ms) | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
Maximum Sustained Transfer Rate (MB/sec) | 89 | 89 | 89 |
Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
Non-Condensing Humidity (%) | 5 to 95 | 5 to 95 | 5 to 95 |
Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
Idle Power (W) | 8.0 | 8.5 | 10.8 |
Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
Weight max (lb/kg) | 1.8/0.82 | 1.8/0.82 | 1.8/0.82 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
