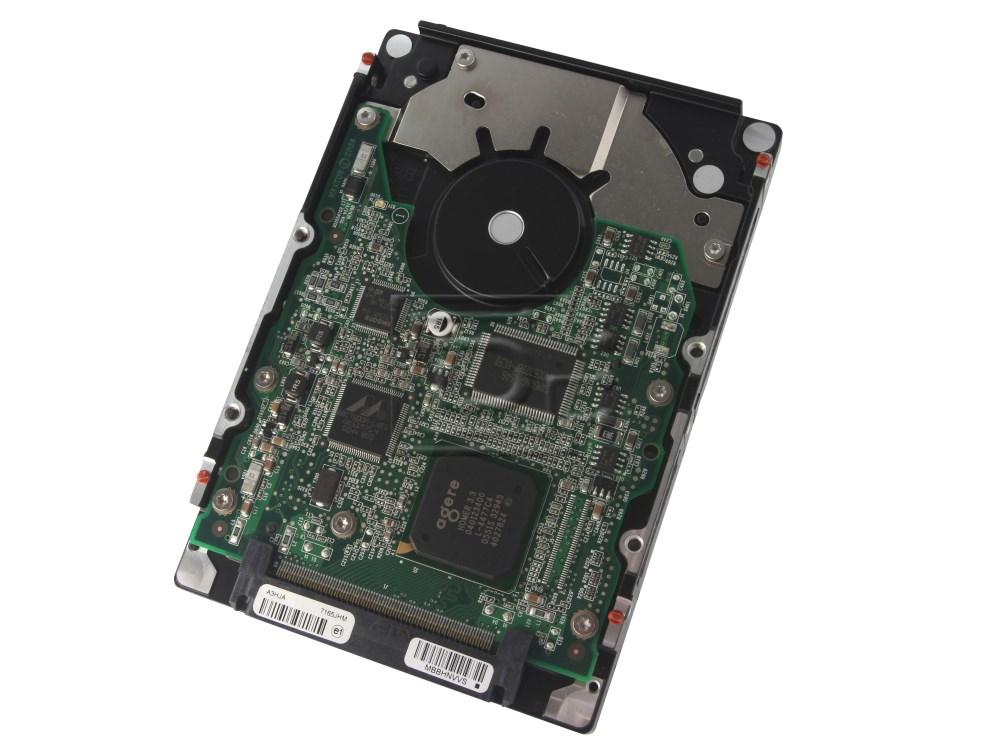

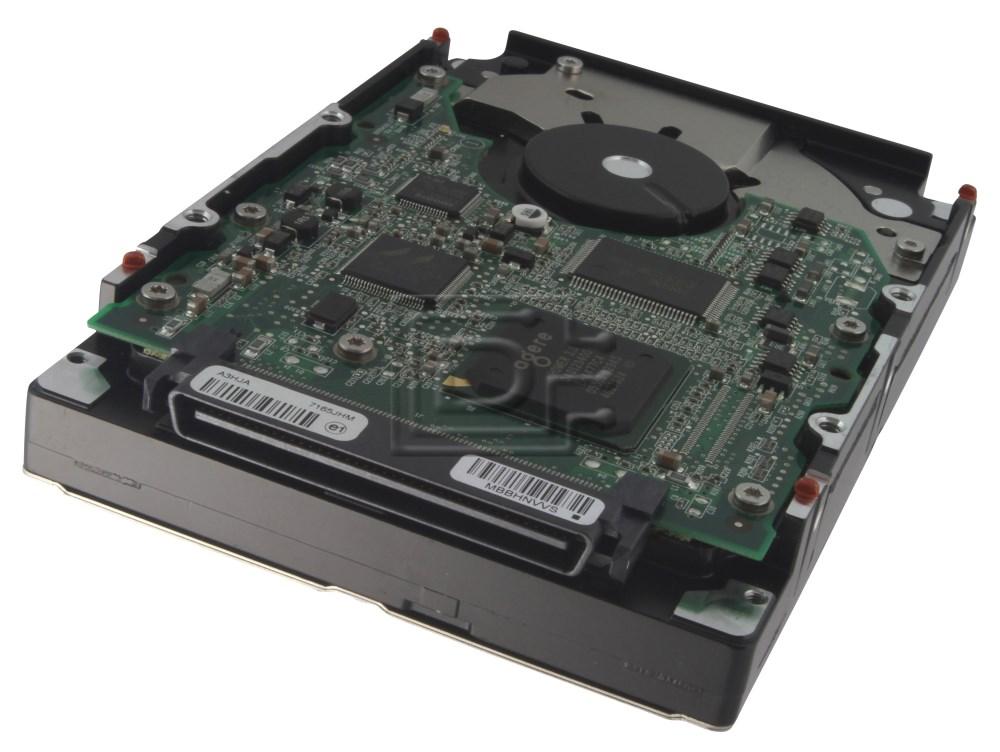

Maxtor 8J300J0 SCSI Hard Disk Drives

(0) No Reviews Yet

Maxtor Part #/MPN: 8J300J0

DiscTech Item #: MAX-8J300J0-RF-OE


Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 89

Average Seek Time: 4.0 / 4.5

Electrical Interface: SCSI LVD U320 - 320MBps 16-bit

On-Board Cache: 8MB

* RoHS Compliant

* Industry's highest 10K performance

* Formatted capacity: 73.4GB, 147.1GB, 300GB

* Seek time as fast as 4.0ms

* Designed for 1.4 million hours MTTF

* Third-generation Ultra320 SCSI

* MaxAdapt® intelligent drive technology

* 89MB/s maximum sustained data rate

* 8MB cache buffer

* Enhanced S.M.A.R.T. features

* Thermal sensor

Specifications73.5 GB147.1 GB300 GB
Formatted Capacity (GB)73.5147.1300
Bytes per Sector512516518
Interface Ultra 320 SCSI (Backwards compatible with Ultra160, Ultra2, Ultra SCSI)
Interface Connectors 68-pin WIDE and 80-pin SCA-2
Average Read/Write (ms)4.0/4.54.2/4.74.4/4.9
Track-to-Track Read/Write (ms)0.3/0.50.3/0.50.3/0.5
Full stroke Read/Write (ms)11.0/12.011.0/12.011.0/12.0
Maximum Sustained Transfer Rate (MB/sec)898989
Operating Temperature (°C)5 to 555 to 555 to 55
Non-Condensing Humidity (%)5 to 955 to 955 to 95
Non-Operating Temperature (°C)-40 to 70-40 to 70-40 to 70
Idle Power (W)8.08.510.8
Width max (inches/mm)4/101.64/101.64/101.6
Length max (inches/mm)5.787/1475.787/1475.787/147
Height max (inches/mm)1.028/26.11.028/26.11.028/26.1
Weight max (lb/kg)1.8/0.821.8/0.821.8/0.82

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0CD808 CD808

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
