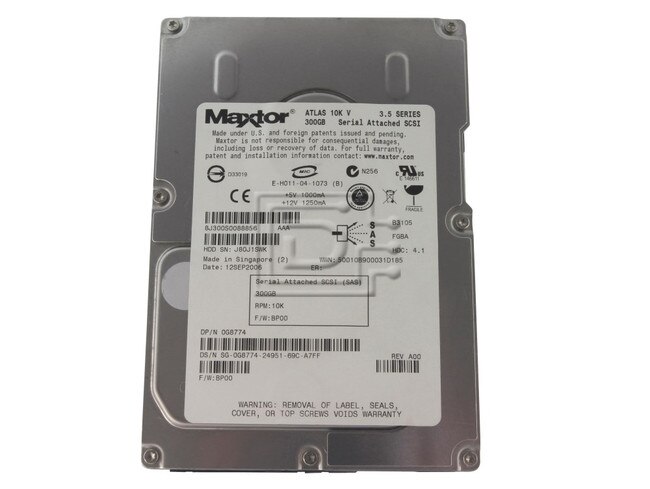

Maxtor 8J300S0 SAS Serial SCSI Hard Drive

(0) No Reviews Yet

Maxtor Part #/MPN: 8J300S0

DiscTech Item #: MAX-8J300S0-BN-OE-DEL


$199.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$199.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 89

Average Seek Time: 4.0 / 4.5

Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps

On-Board Cache: 16MB

* Industry's highest 10K performance

* Formatted capacity: 73.4GB, 147.1GB, 300GB

* Seek time as fast as 4.0ms

* Designed for 1.4 million hours MTTF

* MaxAdapt® intelligent drive technology

* 89MB/s maximum sustained data rate

* 8MB cache buffer

* Enhanced S.M.A.R.T. features

* Thermal sensor

*Lead Free / RoHS compliant

Specifications73.5 GB147.1 GB300 GB

Formatted Capacity (GB)73.5147.1300
Bytes per Sector512516518
Average Read/Write (ms)4.0/4.54.2/4.74.4/4.9
Track-to-Track Read/Write (ms)0.3/0.50.3/0.50.3/0.5
Full stroke Read/Write (ms)11.0/12.011.0/12.011.0/12.0
Maximum Sustained Transfer Rate (MB/sec)898989
Operating Temperature (°C)5 to 555 to 555 to 55
Non-Condensing Humidity (%)5 to 955 to 955 to 95
Non-Operating Temperature (°C)-40 to 70-40 to 70-40 to 70
Idle Power (W)8.08.510.8
Width max (inches/mm)4/101.64/101.64/101.6
Length max (inches/mm)5.787/1475.787/1475.787/147
Height max (inches/mm)1.028/26.11.028/26.11.028/26.1
Weight max (lb/kg)1.8/0.821.8/0.821.8/0.82

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0G8774 G8774

Weight: 1.8

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
