Maxtor Part #/MPN: 8J300S0
DiscTech Item #: MAX-8J300S0-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 89
Average Seek Time: 4.0 / 4.5
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB

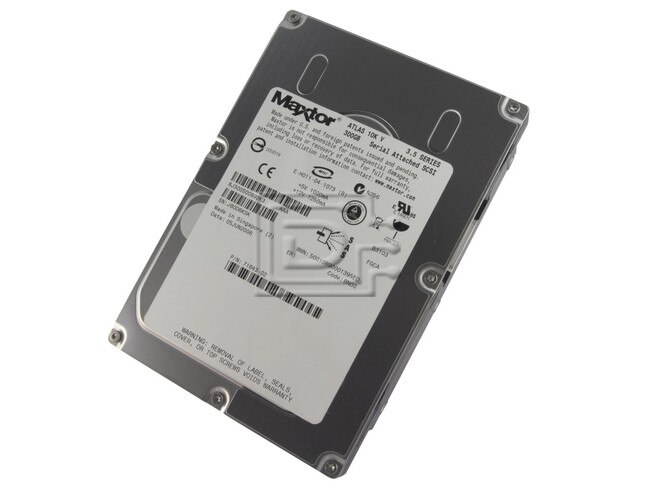

Maxtor Atlas 10K V 300GB 3Gbps Serial Attached SCSI ( SAS ) Hard Drive 8J300S0 (Lead Free / RoHS compliant) - New Pull
The Maxtor Atlas 10K V SAS delivers the industry's only 300GB capacity Serial Attached SCSI (SAS) drive with a 16 MB cache, as fast as 4.0ms seek time and 89MB/sec sustained data transfer rate, providing an optimal combination for use on mainstream enterprise solutions. Serial Attached SCSI brings together the best features of other enterprise interfaces to deliver higher system availability, scalability, end user flexibility, performance and SCSI investment protection.
- Maximum sustained data rate: 89MB/sec
- Designed for up to 1.4 Million hours MTTF
- Formatted capacity; 73GB, 147GB, 300GB
- 16MB cache buffer
- SAS interface
- MaxAdapt intelligent drive technology
- Enhanced S.M.A.R.T.
- Thermal sensor
Dell Part number (DPN): 341-2828
Compatibility:
Dell Powervault MD1000 Storage Array
Dell PowerEdge 2900
Dell PowerEdge 6900
Dell PERC 5/E RAID Controller
* Industry's highest 10K performance
* Formatted capacity: 73.4GB, 147.1GB, 300GB
* Seek time as fast as 4.0ms
* Designed for 1.4 million hours MTTF
* MaxAdapt® intelligent drive technology
* 89MB/s maximum sustained data rate
* 8MB cache buffer
* Enhanced S.M.A.R.T. features
* Thermal sensor
*Lead Free / RoHS compliant
| Specifications | 73.5 GB | 147.1 GB | 300 GB |
| Formatted Capacity (GB) | 73.5 | 147.1 | 300 |
| Bytes per Sector | 512 | 516 | 518 |
| Average Read/Write (ms) | 4.0/4.5 | 4.2/4.7 | 4.4/4.9 |
| Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
| Full stroke Read/Write (ms) | 11.0/12.0 | 11.0/12.0 | 11.0/12.0 |
| Maximum Sustained Transfer Rate (MB/sec) | 89 | 89 | 89 |
| Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
| Non-Condensing Humidity (%) | 5 to 95 | 5 to 95 | 5 to 95 |
| Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
| Idle Power (W) | 8.0 | 8.5 | 10.8 |
| Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
| Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
| Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
| Weight max (lb/kg) | 1.8/0.82 | 1.8/0.82 | 1.8/0.82 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
