Maxtor Part #/MPN: 6Y160M0
DiscTech Item #: MAX-6Y160M0-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 160GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 4.2 / 4.2
Electrical Interface: SATA 150 - 1.50Gbps
On-Board Cache: 8MB

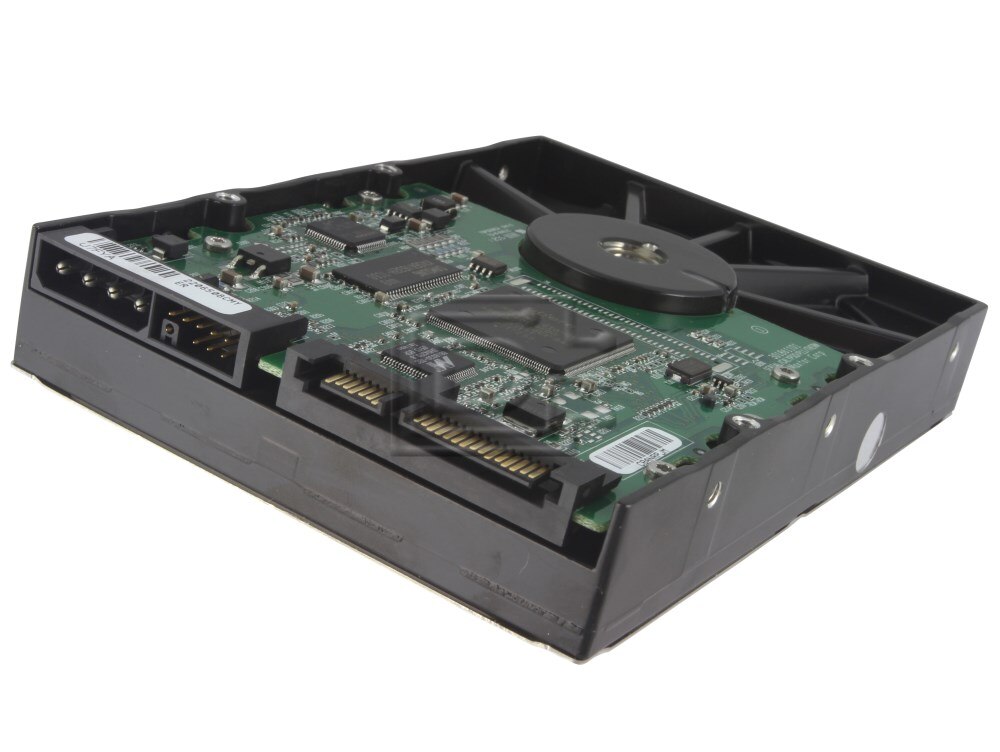

Maxtor Diamond Max Plus 9 160GB 7.2K 3.5" SATA Hard Drive 6Y160M0 - New Pull
- Serial ATA version enables transfer speeds up to 150 MB/sec
- 2MB and 8MB Cache Buffer
- Quiet Drive Technology
- 100 % FDB (fluid dynamic bearing) motors
- Maxtor Shock Protection System
- Maxtor Data Protection System
| Specifications | |
|---|---|
| Model number | 6Y160M0 |
| Model Name | DiamondMax® Plus 9 |
| Formatted Capacity | 160 Gbytes |
| Rotational Speed | 7,200 rpm |
| Default Buffer (cache) Size | 8 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 150 MBytes/sec |
| Average Seek Time | <9.3 |
| Average Latency | 4.2 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 26.1 mm |
| Width | 101.6 mm |
| Length | 147 mm |
| Weight | 0.630 kg |
| Electrical | |
| Power (Typical 12v/5v) | 662 / 858 mA |
| Power (Idle 12v/5v) | 334 / 668 mA |
| Environmental | |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Acoustics, Idle (sound power, typ) | 3.5 Bels |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^15 bits read |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
