NETGEAR Part #/MPN: XS728T
DiscTech Item #: NET-XS728T-BN-FW
Item is out of stock. Please call for alternatives.
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:Factory Warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, SFP
Electrical Interface: Ethernet 10Gigabit - 10Gbps
On-Board Cache: 3MB
Bays/Ports/Slots: 24
U Height: 1U
Voltage: 110-240V Multi

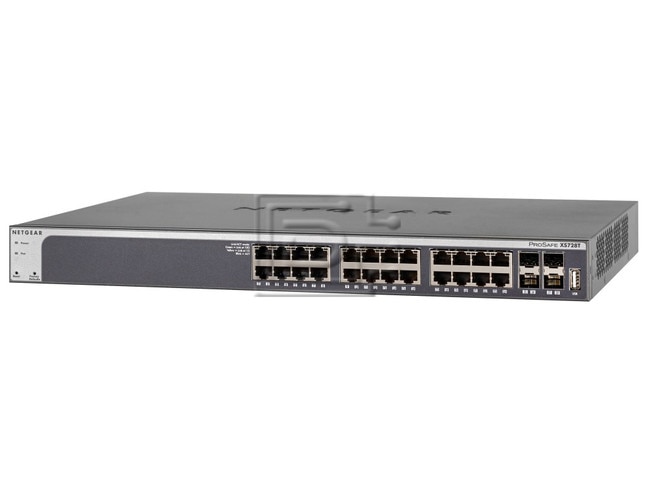

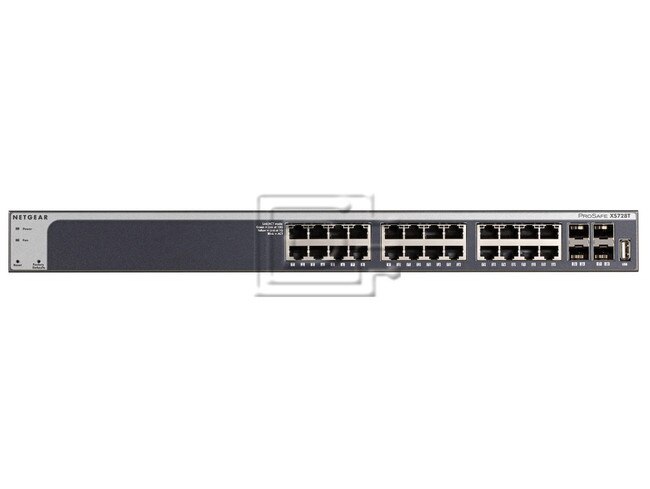

NetGear 10-Gigabit Smart Managed Series XS728T 24-Port 10GBase-T SFP+ Ethernet Switch - Brand New
NetGear 10-Gigabit Smart Managed Series XS728T 24-Port 10GBase-T Copper Ethernet Switch with 4 SFP+ 1000/10GBase-X (dedicated) fiber ports - Brand New
10-Gigabit Smart Managed Switch Series
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of a reliable and high performance network to SMB customers. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10G Smart Managed Switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost.
NETGEAR's ProSAFE® XS712T and ProSAFE® XS728T are powerful Smart Managed Switches that come with either 12 or 24 10-Gigabit Copper ports and either 2 Combo SFP+ (XS712T) or 4 additional Dedicated SFP+ ports (XS728T) for 10G Fiber links. NETGEAR's 10G Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the "center of a small business network" or as an aggregation / access switch in a larger organization including work group access, connecting to a 10G NETGEAR ProSAFE® M7100/M7300 Fully Managed Switch on one end and extending the 10G connections to the edge.
ProSAFE® 10-Gigabit Ethernet Smart Managed Switches | |
---|---|
Model/Part No. | XS728T |
Model Description | 24 10GBase-T copper |
SFP ports | 4 SFP+ 1000/10GBase-X fiber ports (dedicated) |
Buffer size | 3MB |
MAC address database size | 16K |
VLAN (# supported) | 512 |
Number of LAGs & # of members | 8 LAGs with max 8 member in each LAG |
Number of priority queues | 8 |
Access Control Lists (ACLs) | 164 shared for MAC, IP and IPv6 ACLs |
IPv4 Static routes | 64 |
IPv6 Static routes | 64 |
Power Supply | Internal 100-240VAC 50-60Hz |
Max power consumption (Watts) | 173.3W |
Fan | 4 |
Acoustic Noise Level @25C (dBA) | 41.6 dBA |
Operating Temperature | 0° to 50°C (32° to 122°F) |
MFBF (@ 25° C) | 514,977 hrs |
Electromagnetic Compliance (A or B) | Class A |
Dimensions (W x D x H) | 440 x 310 x 43 mm (17.3 x 12.2 x 1.7 in) |
Weight | 5.04 kg (11.1 lb) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 11.5 lb
Warranty: Factory Warranty
Brand New
The product is brand new.
Factory Warranty Warranty
