QUANTUM Part #/MPN: XC09L011
DiscTech Item #: MAX-XC09L011-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 9GB
Speed: 7,200RPM
Interface Types: SCSI 68pin HD68
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 41
Average Seek Time: 4.7
Electrical Interface: SCSI LVD U160 - 160MBps 16-bit
On-Board Cache: 4MB

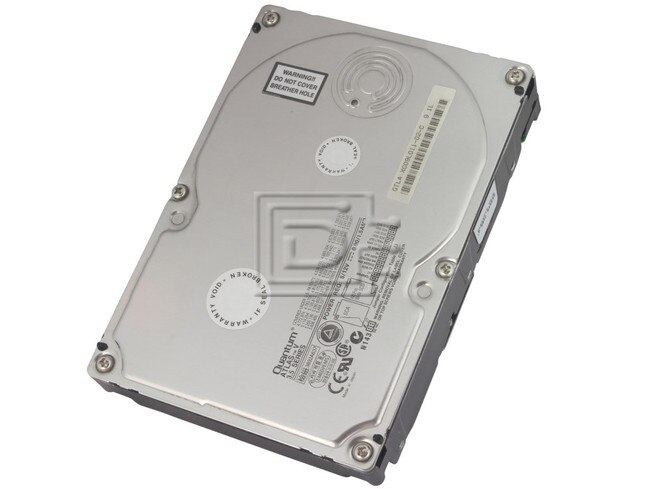

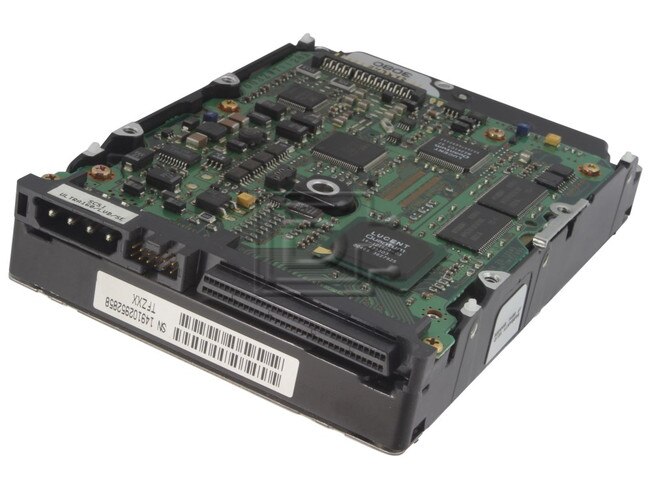

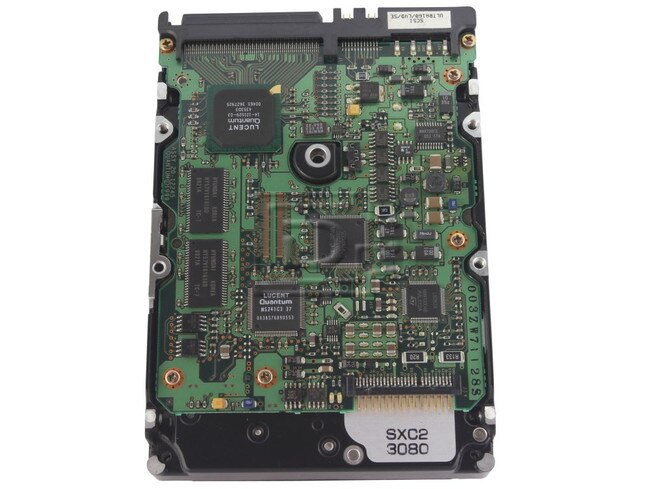

Maxtor / Quantum 9GB U160 7.2K 68pin SCSI Hard Drive XC09L011 - Brand New
Maxtor / Quantum 9GB U160 7.2K 68pin SCSI Hard Drive XC09L011 - Brand New
SPECIFICATIONS | |
---|---|
Form Factor | 3.5" |
Interface | Ultra160, Ultra2, Ultra SCSI 68-pin Wide |
Formatted Capacity (MB) | 9,200 |
Disk Drive Configuration | |
Disks | 2 |
Head/Recording Surfaces | 3 |
Bytes per Sector | 512 |
Maximum Areal Density (Gb/sq. in.) | 7.7 |
Encoding/Detection Method | 50/52 RLL PRML |
Performance Specifications | |
Typical Seek Times: (ms) Average Track-to-Track Full Stroke Average Rotational Latency (ms) | 4.7 0.6 12 3.0 |
Rotational Speed (RPM) | 7,200 |
Internal Data Rate (Mb/sec) | 280 to 478 |
Sustained Throughput (MB/sec) | 25 to 41 |
Data Transfer Rates (Buffer Host) Ultra160 SCSI (MB/sec) Ultra2 SCSI (MB/sec) Ultra SCSI (MB/sec) Buffer Size (MB) | 160 80 40 4 |
Reliability Specifications | |
Data Errors (per bits read) Recoverable Nonrecoverable | 10 per 10^12 1 per 10^14 |
Error-Correction Method | 352-bit Reed Solomon |
Physical Specifications | |
Width (inches/mm) | 4.00/101.6 |
Length (inches/mm) | 5.76/146.5 |
Height (inches/mm) | 1.00/25.8 |
Weight (pounds/kg) | 1.4/0.64 |
Alternate MPNs: JP-0446PC
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
