SAMSUNG Part #/MPN: MZ-7WD48000
DiscTech Item #: SAM-MZ-7WD48000-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Average Seek Time: 0.13 ms / 0.08 ms
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

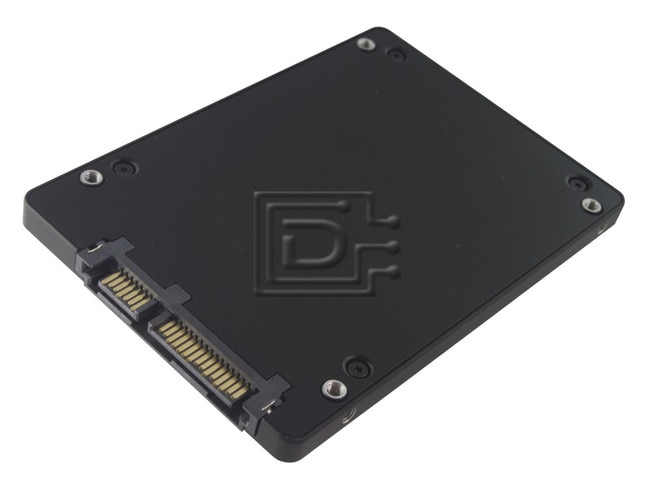

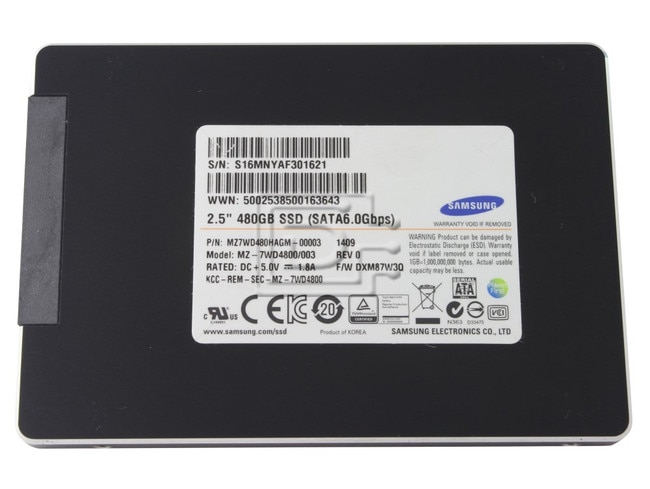

Samsung MZ-7WD48000 / MZ7WD480HAGM 480GB 2.5" 6Gbps SATA Enterprise SM843T DWPD 2.1 Data Center Series MLC SSD - Brand New
Samsung MZ-7WD48000 / MZ7WD480HAGM 480GB 2.5inch 6Gbps Serial ATA Enterprise SM843T Data Center Series Multi Level Cell Solid State Drive - Brand New
Samsung has released the SM843T SSD, utilizing consumer 20nm-class MLC NAND Flash, which features consistently low latency, high write endurance, power-loss protection, coupled with a high-level of sustained writes (IOPS)—all at capacitates up to 960GB at an extremely affordable solution. Here are more details about his new drive’s outstanding features:
Exceptional Low Latency and High Write Endurance - Unlike conventional SSD drives in its category, which provide very good performance at the onset, as more write operations are made to other SSDs, the latency and consistency QoS typically suffer. On the other hand, Samsung’s SM843T SSD delivers an exceptionally consistent level of performance (99.9% reliable latency and QoS) over the life of the SSD at the same price category as other consumer-based MLC-based offerings. The life of a drive is generally determined by such factors as the type of applications and workloads that are being used and stored. The Samsung SM843T is optimized for sustained random read and write workloads up to 1,930 TBW (480GB) and up to 3,680 TBW with the 960GB capacity SSD which represents a 30x improvement of its predecessor.
Enterprise Power-Loss Protection - Samsung SM843T SSDs are built with tantalum capacitors to protect all of your data in write cache in the case of a power failure. This enterprise-grade power-loss protection provides an added level of security to ensure that valuable write information is well protected against data corruption caused by power-loss.
High-Capacity SSDs Available - Samsung SM843T SSDs are available in several densities, allowing you to maximize your capacity with the same number of drive slots. The drive processes 15,000 IOPS on writes all the way up to 960GB—over 7x the density over a 128GB SSD.
A Workhorse of a Drive - The Samsung SM843T is optimized for sustained random read and write workloads (98,000 IOPS/ 15,000 IOPS). This represents a 6x increase in write IOPS, in the same price category, as our last generation, award-winning PM830 SSDs.
Compatibility:
This SSD is compatible with any server that accepts 2.5"x7mm (thin case) drives.
Specifications | |
---|---|
Form Factor | 2.5 inches |
Capacity | 480GB |
Host Interface | Serial ATA 3 (6 Gb/s) |
MTBF | 2,000,000 hours |
Uncorrectable Bit Error Rate (UBER) | 1x1017 |
Power Consumption (Active) | 3.4 W |
Power Consumption (Idle) | 300 mW |
Read Latency (99.9% QoS) | 170 µs |
Write Latency (99.9% QoS) | <3 ms |
Random Read | Up to 98,000 IOPS |
Random Writes | Up to 15,000 IOPS |
Random Terabytes Written (TBW) | Up to 3,860 TBW / Up to 2 WPD |
Sequential Read | Up to 500 MB/s |
Sequential Writes | Up to 370 MB/s |
Sequential Terabytes Written (TBW) | Up to 20,000 TBW / Up to 11 WPD |
Physical Dimensions | 100 x 70 x 7mm |
Weight | 56g |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MZ7WD480HAGM
