Samsung SpinPoint P Series HD160JJ 160BG 7.2K SATA Hard Drives

(0) No Reviews Yet

SAMSUNG Part #/MPN: HD160JJ

DiscTech Item #: SAM-HD160JJ-RF-OE


$49.00
$49.00

Capacity: 160GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 61

Electrical Interface: SATA 300 - 3.0Gbps

On-Board Cache: 16MB

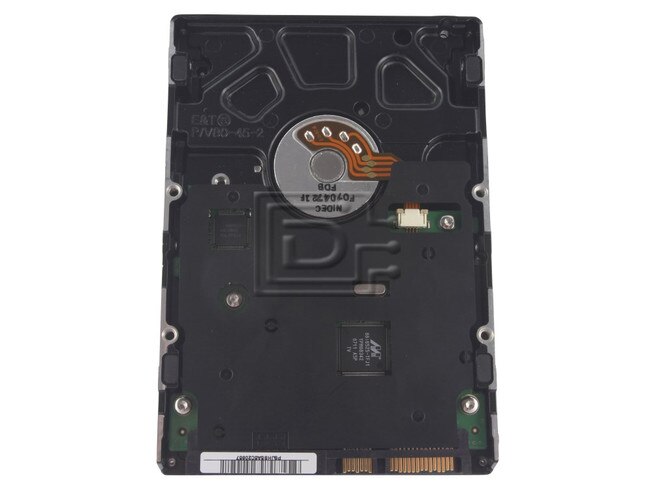

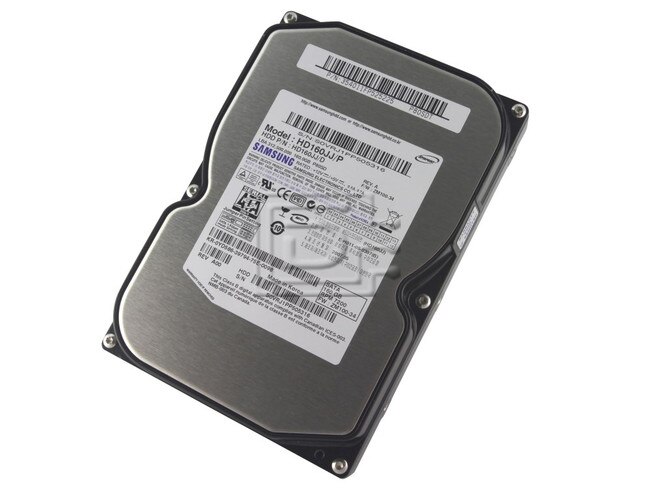

Samsung SpinPoint P Series HD160JJ 160GB 7.2K  SATA 3.5" Hard Drive - Refurbished

Superior reliability — tested to 1 million hours MTBF at high duty cycle, these enterprise drives are designed and manufactured to provide server-class reliability.

Fast — with up to 3.0 Gb/s data transfer rate, and up to 16 MB cache, these drives deliver optimum performance in nearline server environments.

Low power — Active Power Save™ delivers best-in-class seek mode power consumption through advanced WD firmware that conserves power in active seek modes without degrading performance.

RAID-specific, time-limited error recovery (TLER) — a feature pioneered by WD that significantly reduces drive fallout caused by extended drive error-recovery processes common to desktop drives.

  • formatted capacity : 160GB
  • native serial ATA (3.0Gbps) with Native Command Queuing (NCQ)
  • fluid dynamic bearing spindle motor technology
  • high speed dual Digital Signal Processor (DSP) based architecture

Compatibility:

This drive is compatible with any of our SATA hot swap trays and controllers.

Specifications
Model number HD160JJ
Model Name SpinPoint P Series
Formatted Capacity 160 Gbytes
Rotational Speed 7,200 rpm
Default Buffer (cache) Size 16 Mbytes
Performance
External (I/O) Transfer Rate (max) 3.0 Gb/s
Average Latency 4.2 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 25.4 mm
Width 101.6 mm
Length 146.05 mm
Reliability
MTBF (Hours) 1,000,000 hours
Nonrecoverable Read Errors 1 per 10^14 bits read

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
