SAMSUNG Part #/MPN: HM500JI
DiscTech Item #: SAM-HM500JI-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Capacity: 500GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 12
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

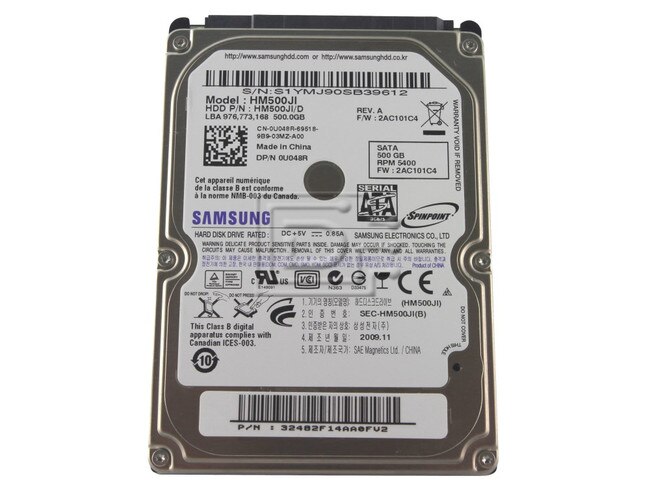

Samsung Spinpoint M7 HM500JI 500GB 5.4K 2.5" 3.0 Gb/s SATA Laptop Hard Drive - Refurbished OEM
- Key Features
- Max. 500 GB formatted capacity per disk
- SATA Native Command Queuing Feature
- TuMR/PMR head with FOD technology
- Serial ATA 3.0 Gbps Interface Support
- Load/Unload Head Technology
- ATA Security Mode Feature Set
- ATA S.M.A.R.T. Feature Set
- SilentSeek™
- NoiseGuard™
DPN: 0U048R / U048r
Compatibility:
This drive is compatible with any laptop or mobile system that accepts 2.5" SATA hard drives.
Spinpoint M7E - HM500JI | |
---|---|
Capacity | 500 |
Interface | SATA 3 Gbps |
Rotational Speed | 5400 RPM |
Buffer DRAM Size | 8MB |
Sector Size | 512 bytes |
PERFORMANCE SPECIFICATIONS | |
Average Seek Time | 12 ms |
Data Transfer Rates | |
Media to/from buffer | 138 MBps |
Buffer to/from Host | 300 MBps |
Drive Ready Time | 4 sec |
RELIABILITY SPECIFICATIONS | |
Non-recoverable Read Error | 1 sector in 10 to the 14th bits |
Controlled Ramp Load/Unload | 600000 |
ACOUSTICS (AVERAGE SOUND POWER) | |
Idle (typical) | 2.4 Bel |
Performance Seek (typical) | 2.6 Bel |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature Operating | 5 - 55°C |
Non-operating | - 40 - 70°C |
Humidity (non-condensing) Operating | 8 - 90 % |
Non-operating | 5 - 95 % |
Linear Shock (1/2 sine pulse) Operating | 400 G |
Non-operating | 900 G |
Vibration Operating (Random, 10~500Hz) | 1.5 Grms |
Altitude (relative to sea level) Operating | -300 to 3,000 m |
Non-operating | -400 to 15,000 m |
POWER REQUIREMENTS | |
Voltage | +5V±5% |
Spin Up Current (Max.) | 1000 mA |
Seek (avg) | 2.5 W |
Read/Write (avg) | 2.5 W |
Low Power Idle (avg) | 0.85 W |
Standby (avg) | 0.25 W |
Sleep (avg.I) | 0.2 W |
PHYSICAL DIMENSION | |
Height | 9.5 mm |
Width | 69.85 mm |
Length | 100.0 mm |
Weight (max.) | 105 g |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: U048R 0U048R
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
