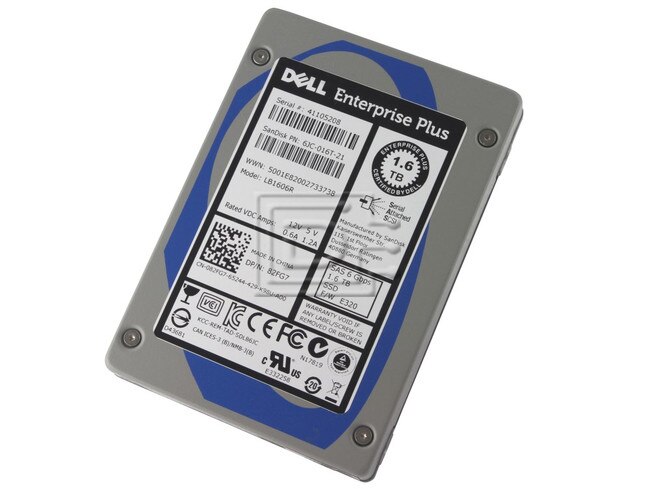

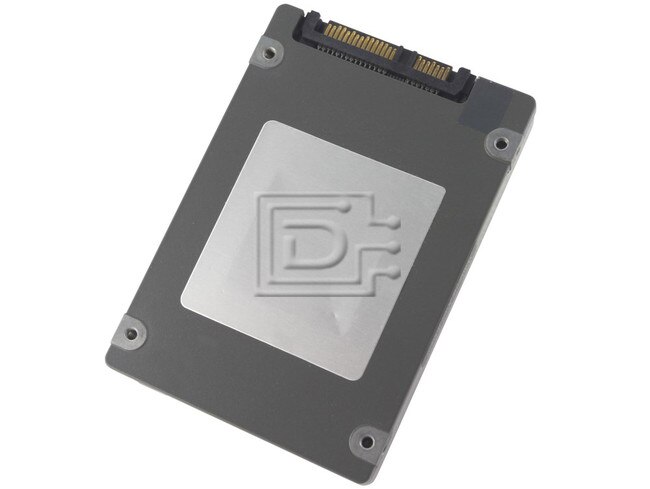

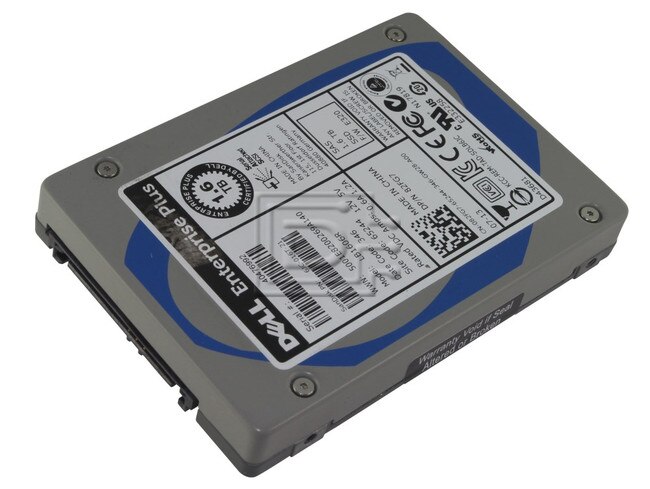

Dell Enterprise Plus 82FG7 LB1606R 1.6TB MLC 6Gbps SAS SSD

SANDISK Part #/MPN: LB1606R

DiscTech Item #: SAN-LB1606R-RF-OE-DEP


$1,495.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$1,495.00

Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 530

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Dell Enterprise Plus 82FG7 LB1606R 1.6TB MLC 6Gbps SFF 2.5in SAS SSD - Refurbished OEM

Alt. MPN: 6JC-016T-21
Dell Enterprise Plus PNs: 82FG7 082FG7

Lightning Read-Intensive SAS SSDs Accelerate Performance and Enhance Reliability
The ability to quickly access data is critical to nearly every enterprise organization. Lightning® Read-Intensive 6Gb/s SAS Enterprise Solid State Drives (SSDs) greatly reduce latency compared to traditional hard-disk drives (HDDs). Optimized for environments with a high proportion of data reads compared to writes (90 percent read/10 percent write), Lightning Read-Intensive SAS drives can be used to serve data in a broad range of applications and services, such as media and entertainment, cloud services, and web servers.
I/O optimization for read-intensive workloads reduces bandwidth usage, alleviating network bottlenecks and enabling organizations to maximize the utility of existing infrastructure. Lightning Read-Intensive SSDs feature an advanced controller based on a highly efficient parallel-processing architecture, so your data center or business will get the speed it needs.

  • up to 410 MB/s** data throughput
  • up to 87,000 total IOPS (read)
  • 400GB** to 1.6TB capacities
  • Two million hours MTBF**
  • Qualify once and deploy throughout your system


Compatibility:

This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives.

Specifications
Data Throughput (Sequential Read/Write)410/140 MB/s
Total IOPS (Random Read)78,000 IOPS
(Random/Write) 4KB – (single port)8,000 IOPS
(Random/Write) 8KB – (single port)26,000 IOPS
Host Interface6Gb/s SAS
Host Interface PortsDual (2) full-duplex
Form Factor2.5 inch
MLC User Capacities1600 GB
Sector Sizes Supported512, 520 or 528 bytes/sector
MLC Page Pairing ProtectionNo risk of data loss
Unrecovered Bit Error Rate(UBER)<1 sector in 1016 bits read
End-to-End Data ProtectionNo performance impact
Patrol Read (automatic)No performance impact
Power-on Hours8760 hours per year
MTBF2 million hours
Height (max)15.0 mm
Width (max)70.1 mm
Length (max)100.45 mm
Weight0.238 kg
Power Consumption- Idle3.9 watts
Power Consumption- Typical5.9 watts
Operating Temperature (ambient)0 to 60° C
Non-operating Temperature-40 to 85° C
Start-up Time (Power-on to Ready)<15 seconds

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 82FG7 082FG7 6JC-016T-21

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
