SANDISK Part #/MPN: LB206M
DiscTech Item #: SAN-LB206M-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 385 MBps
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC

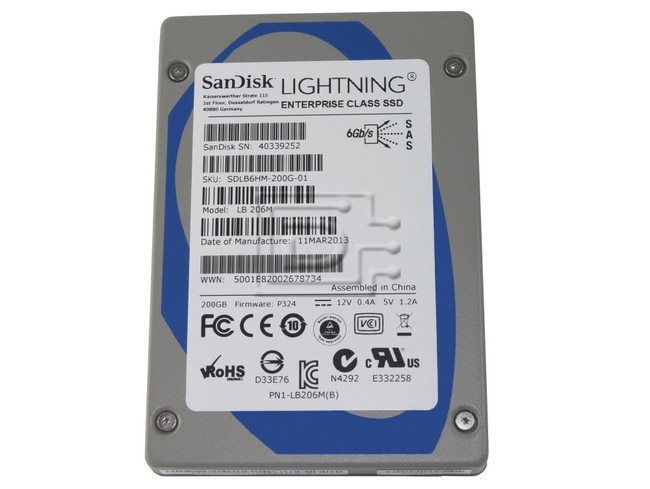

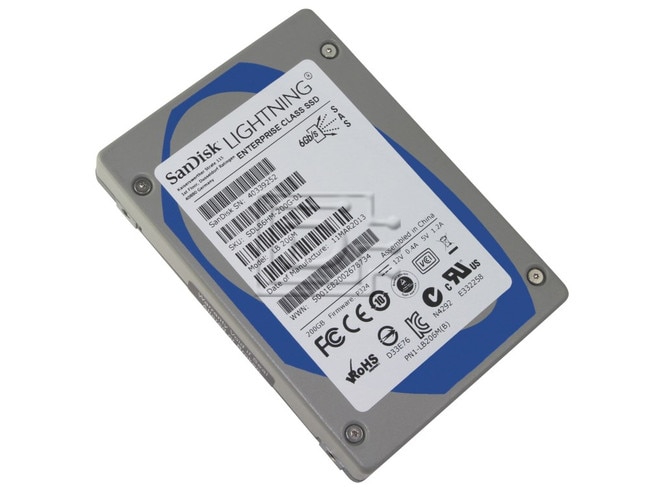

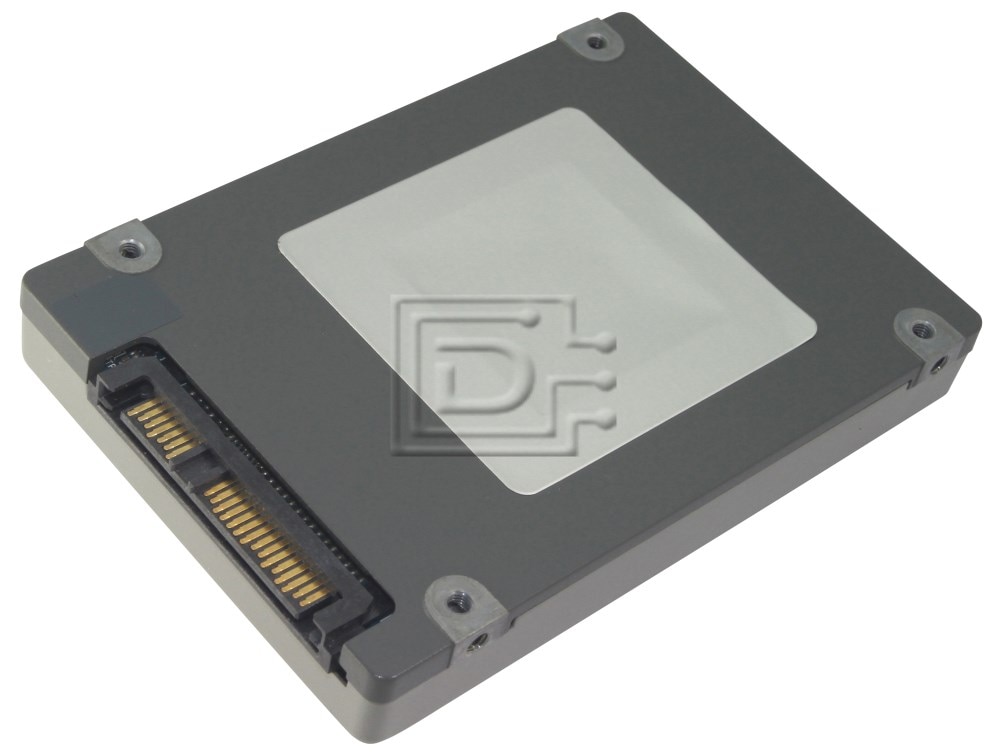

SanDisk LB206M Lightning 200GB 2.5" SFF 6Gbps Serial Attached SCSI / SAS Single Cell / MLC Solid State Drive / SSD - New Pull
SanDisk LB206M Lightning 200GB 2.5" SFF 6Gbps Serial Attached SCSI / SAS Single Level Cell / MLC Solid State Drive / SSD - New Pull
Lightning® Mixed-Use
6Gb/s SAS Enterprise Solid State Drives
The challenges for predictable performance and increased storage capacity are ever present in today’s data centers. Managers are tasked to satisfy demand without new IT capital investment or the cost of increasing floor space. Enterprise SSDs provide substantial performance and footprint benefits over traditional HDDs. This enables IT service providers to replace hundreds of HDDs with a single SSD creating a more efficient and reliable network while reducing capital expenditures, space and energy consumption. Lightning SSDs rank among the most competitive solutions in the industry, offering unmatched speed with a history of successful implementations into existing IT infrastructures.
Since not all data centers are created equal, the key to achieving increased data and system performance is in understanding the specific application workload. Lightning Mixed-Use 6Gb/s (SAS) SSDs offer solid I/O cost-to-performance benefits where quick access to data is vital. Available in 200GB, 400GB and 800GB capacities, Lightning Mixed-Use SSDs provide an I/O pattern designed predominately for application workloads such as On-line Transaction Processing (OLTP) Databases, Infrastructure, E-mail/Messaging, Virtual Desktop, and Collaboration, with a typical workload comprised of a 70/30 read/write mix.
Lightning SSDs deliver the industry’s leading I/O sustained performance with the most predictable performance profile across a wide range of workloads. Lightning Mixed-Use SSDs are designed with an advanced innovative controller that uses a parallel processing architecture to deliver proven and tested superior reliability for storage and server environments. Lightning SSDs have been specifically designed for demanding, mission-critical, 24/7 applications.
Alternate part numbers : SDLB6M-200G-0016 / SDLB6HM-200G-00
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
Lightning Mixed-Use Enterprise SSDs - Product Specifications | |
---|---|
Host Interface | 6Gb/s SAS |
Interface Ports | Dual (2) full-duplex |
Form Factor | 2.5 inch |
Capacity | 200GB |
Sector Sizes Supported | 512, 520 or 528 bytes/sector |
Unrecovered Bit Error Rate (UBER) | <1 sector in 1017 bits read |
End-to-End Data Protection | No performance impact |
Patrol Read (automatic) | No performance impact |
Power-on Hours | 8760 hours per year |
Height (max) | 15.0 mm |
Width (max) | 70.1 mm |
Length (max) | 100.45 mm |
Weight | 0.238 Kg |
Power Consumption - Idle | 3.9 watts |
Power Consumption - Typical | 5.9 watts |
Operating Temperature (ambient) | 0 to 60° C |
Non-operating Temperature | -40 to 85° C |
Start-up time (Power-On to Ready) | <15 seconds |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SDLB6M-200G-0016 SDLB6HM-200G-00
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
