Seagate Part #/MPN: ST3450856SS
DiscTech Item #: SGT-ST3450856SS-RF-OE-DEL
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 110 - 171
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB

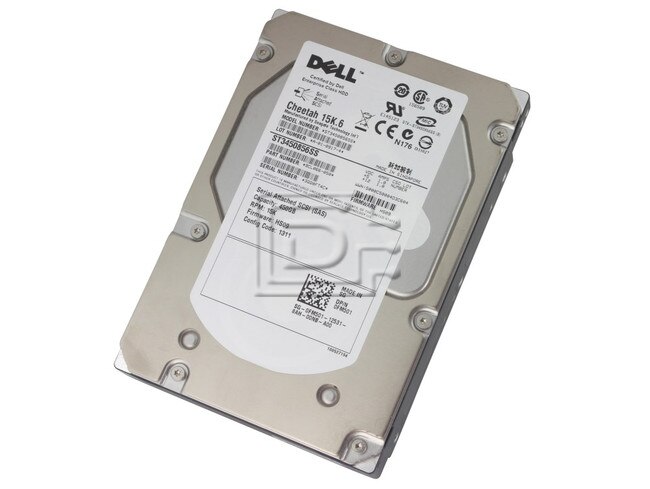

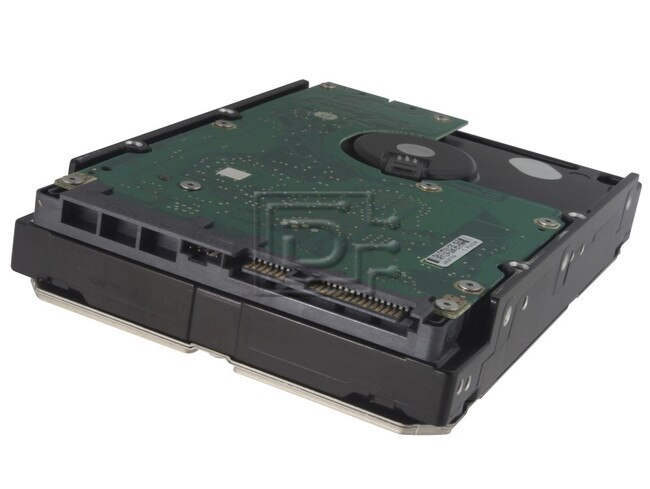

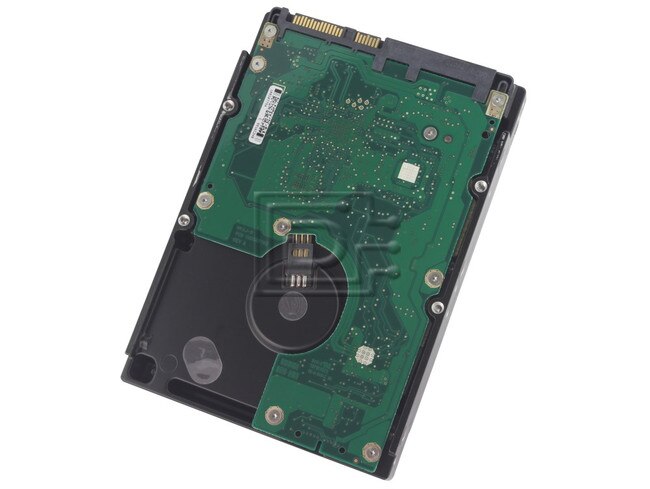

Seagate Cheetah 15K.6 ST3450856SS 450GB 15K 3.0Gbps Serial SCSI / SAS Hard Drive - Refurbished OEM
The Seagate® Cheetah® 15K.6 hard drive enables manageable tiered storage solutions without compromising performance or reliability. Cheetah 15K.6 drives deliver cost-effective solutions, allowing systems to keep up with increasing performance needs over a longer period of time.
- Second-generation perpendicular recording delivers up to 450-GB capacity.
- Unprecedented performance with a 28 percent increase in sustained data rate, up to 164 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim™ technology provides a 61 percent improvement in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10-16
- Available in FC or SAS interfaces
DPNs: FM501, 0FM501
This drive is compatible with all SAS compatible servers including:
Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605 Servers and PowerVault MD1000, MD3000, NF100, NF500, NF600 Storage Arrays.
HP / Compaq Proliant DL140 G2 , DL140 G3 , DL145 G2 , DL145 G3 , DL160 G5 , DL160 G5p , DL165 G5 , DL180 G5 , DL185 G5, DL320 G3 , DL320 G4 , DL320 G5 , DL320 G5p , DL360 G4p , DL380 G5 , ML110 G3 , ML150 G3 , ML150 G5 , ML310 G2 , ML310 G3 , ML310 G4 , ML310 G5 , ML350 G4p , ML350 G5.
|Model Name||Cheetah 15K.6|
|Formatted Capacity||450 Gbytes|
|Internal Transfer Rate (min)||1051 Mbits/sec|
|Internal Transfer Rate (max)||2225 Mbits/sec|
|Formatted Int Transfer Rate (min)||110 MBytes/sec|
|Formatted Int Transfer Rate (max)||171 MBytes/sec|
|External (I/O) Transfer Rate (max)||300 MBytes/sec|
|Average Seek Time, Read||3.4 msec typical|
|Average Seek Time, Write||3.9 msec typical|
|Track-to-Track Seek, Read||0.2 msec typical|
|Track-to-Track Seek, Write||0.4 msec typical|
|Average Latency||2 msec|
|Default Buffer (cache) Size||16 Mbytes|
|Number of Discs (physical)||4|
|Number of Heads (physical)||8|
|Startup Current (12VDC +/- 5%)||4.56 amps|
|Startup Current (5VDC +/- 5%)||1.95 amps|
|Max Operating Shock (2-msec)||60 Gs|
|Max Nonoperating Shock (2-msec)||250 Gs|
|Operating Vibration (max)||1.0 Gs|
|Nonoperating Vibration (max)||2.0 Gs|
|Operating Temperature (max)||55 deg C|
|Operating Temperature (min)||5 deg C|
|Nonoperating Temperature (max)||70 deg C|
|Nonoperating Temperature (min)||-40 deg C|
|Acoustics, Idle (sound power, typ)||3.6 Bels|
|MTBF (Hours)||1,600,000 hours|
|Nonrecoverable Read Errors||1 per 10^16 bits read|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: FM501 0FM501
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process
